Problem:

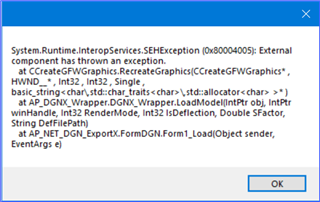

While trying to export a file to DGN with "Deflected Model Graphics" option enabled, the following message appeared:
---------------------------
---------------------------
System.Runtime.InteropServices.SEHException (0x80004005): External component has thrown an exception.
at CCreateGFWGraphics.RecreateGraphics(CCreateGFWGraphics* , HWND__* , Int32 , Int32 , Single , basic_string<char\,std::char_traits<char>\,std::allocator<char> >* )
at AP_DGNX_Wrapper.DGNX_Wrapper.LoadModel(IntPtr obj, IntPtr winHandle, Int32 RenderMode, Int32 IsDeflection, Double SFactor, String DefFilePath)
at AP_NET_DGN_ExportX.FormDGN.Form1_Load(Object sender, EventArgs e)
---------------------------
OK
---------------------------
Why and how to avoid he issue?
Solution:
In this particular model, the model was round tripped (918691) and followed round trip instructions to thoroughly review the model and comparison checks. The model now exports a file with deflected load case.
