Why Should I Use Hot and Cold Clash Detection?
The following video presents a closer look at the benefits of using AutoPIPE for "hot" and "cold" clash detection with 3D CAD Plant models.
Click here to learn how to perform Hot and Cold Clash Detection.
3D Hot Clash Detection Overview
Lets take a look at how information mobility can help with finding 3D Hot Piping interferences during the design process which is much better and safer than finding problems during Plant operation.

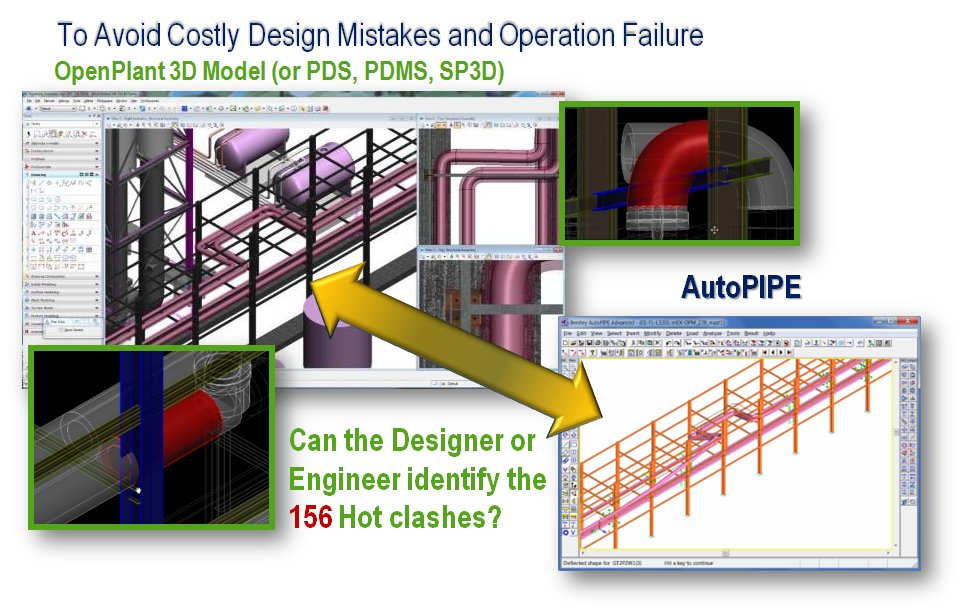

Hot Clash Detection To Avoid Costly Design Mistakes and Operation Failure

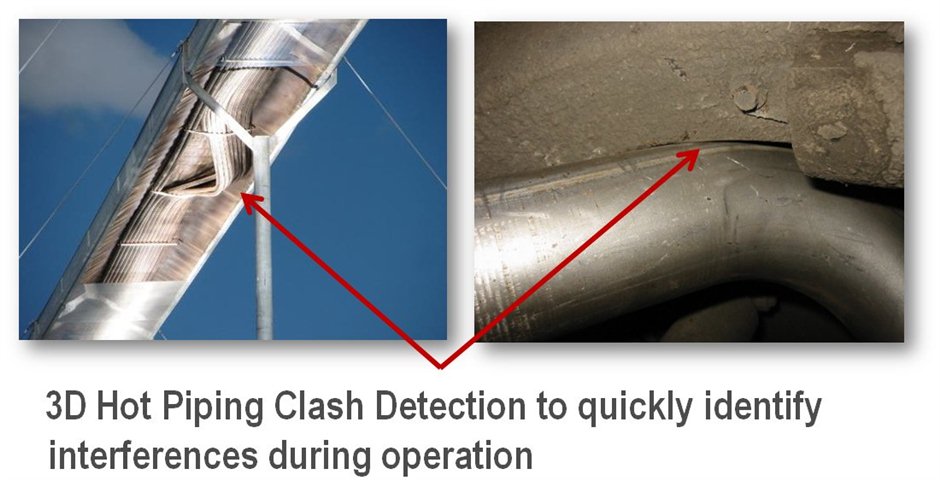

Piping clashes with other pipes, structures, equipment, and/or HVAC are not uncommon and can be very costly to re-design and worse-case scenario that Plants have to be shutdown for failure investigation and repairs.
Hot Clash Detection - Clashes are Everywhere... Even Under Our Cars

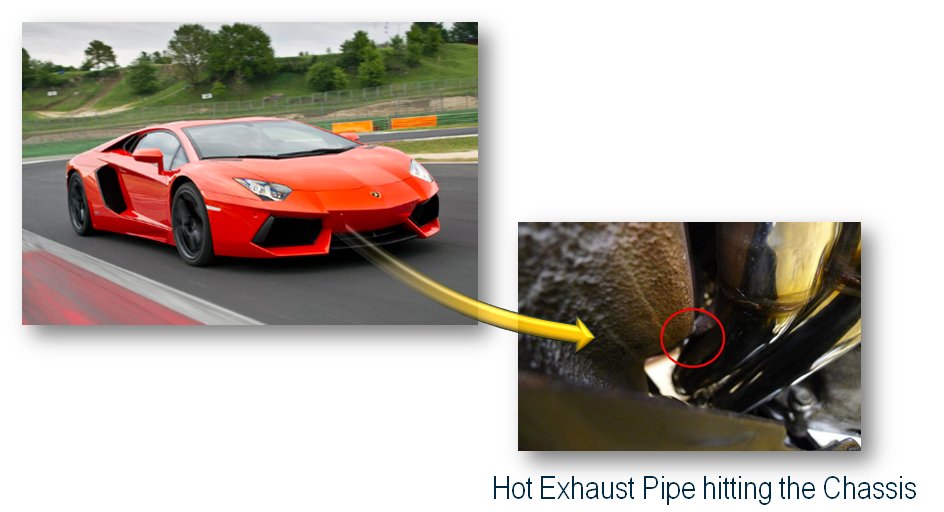

Clashes are everywhere... Even under our Cars as can be seen with this hot exhaust pipe hitting the chassis.
Hot Clash Detection
Hot Clashes are typically caused by pipes heating up and moving, but large pipe movements can also easily occur with extreme loads like wind or earthquakes.
Hot Clash Detection - Pipeline Explosions Do Happen and are Expensive

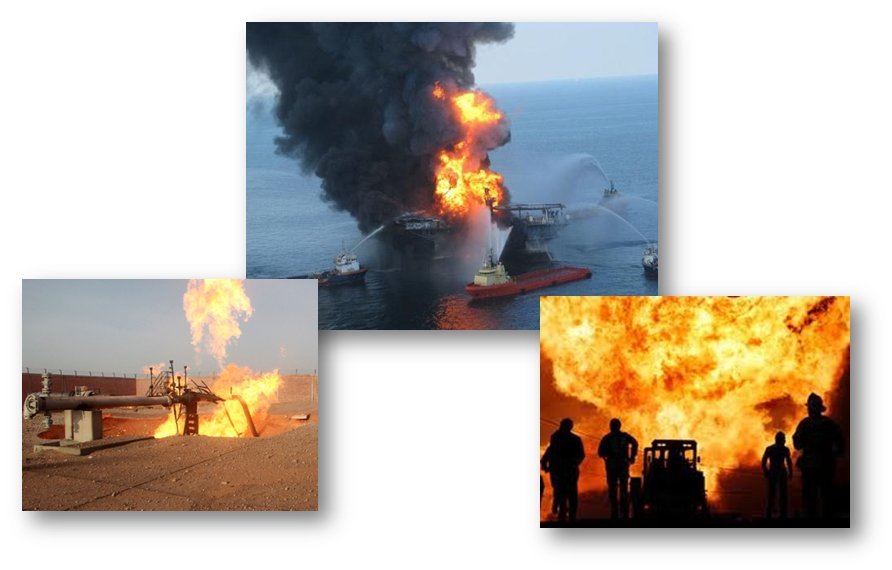

Pipeline explosions do happen and are expensive! Like the $12billion Deep Water Horizon Offshore Oil Rig in the Gulf of Mexico in 2010.
Case Study 1 – Hydrotreater Tank Farm AutoPIPE & Navigator 3D Hot Clash

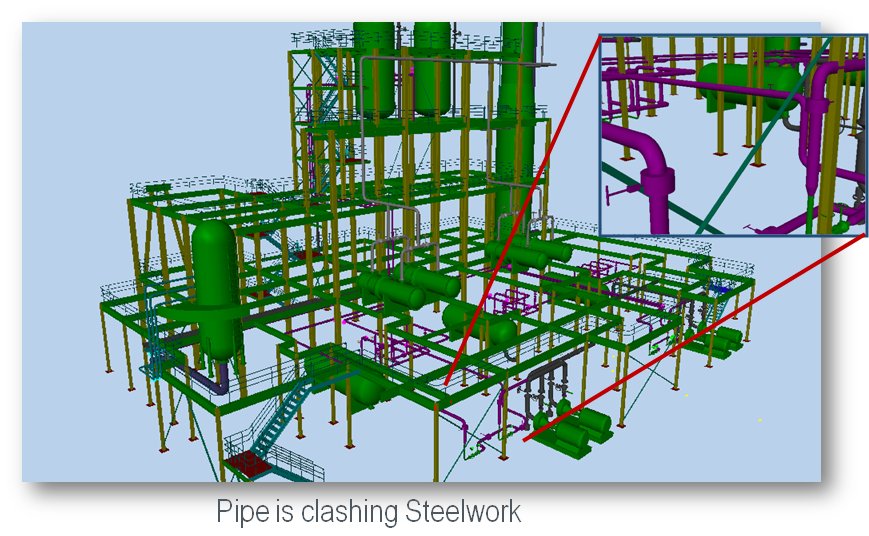

Now with AutoPIPE, you can analyze any type of loading condition applied to piping and structures. And With Bentley Navigator or OpenPlant Modeler, you can quickly evaluate accurate soft and hard clashes against Structure, Electrical, and Equipment.
But the 3D Plant model may be designed in PDS or PDMS or Plant 3D or SmartPlant and can still be viewed in Bentley Navigator or MicroStation.
Case Study 2 – Hot Operation Clashes
This Plant Case Study is the Samcheok Green Power Unit 1 and 2, 2000MW Supercritical Thermal Power Plant in South Korea courtesy of KEPCO Engineering & Construction Company.
The following PDF presents an overview of the Hot Clash Detection Case Study by KEPCO Engineering & Construction Company
Case Study 2 – Hot Operation Clashes

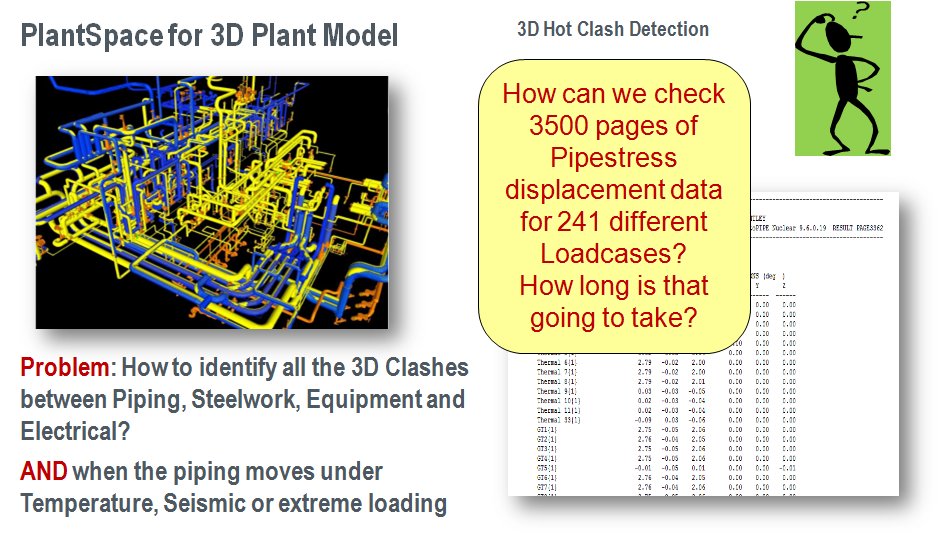

The problem is how to identify all the 3D Clashes between Piping, Steelwork, Equipment and Electrical when we have a maze of piping as shown here”. And what about when the piping moves under Temperature, Seismic or extreme loading”, The structural moves under its own seismic and live loading. “For example, How can we easily check 3500 pages of Pipestress displacement data for 241 different Loadcases and locate these movements in Plant model?
And How long is that going to take?
Case Study 2 – Hot Operation Clashes

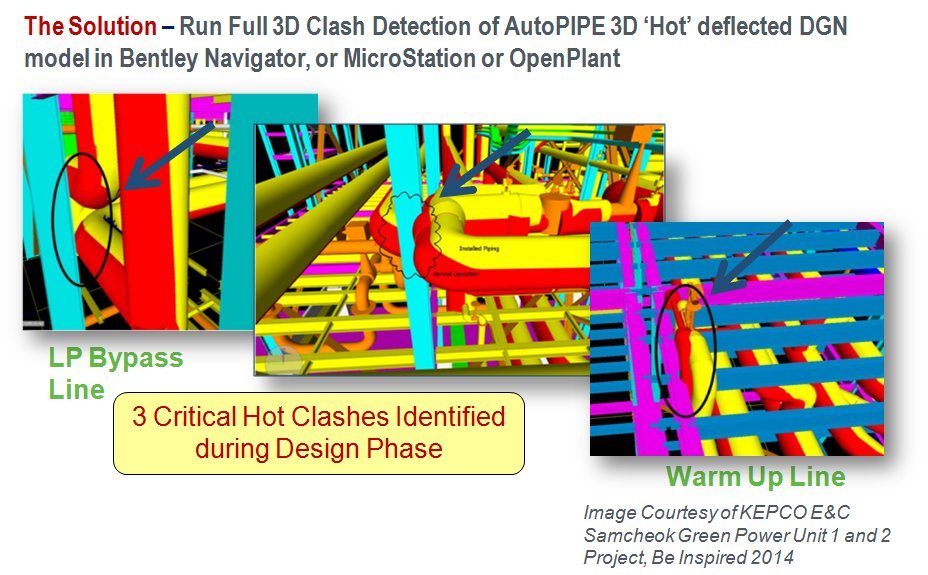

Running the new AutoPIPE Hot clash detection – they generated a hot deflected DGN pipestress model (Red) and referenced into the PlantSpace 3D model (yellow) … 3 critical hot clashes were quickly discovered which avoided 3 costly operational failures which they did not discover using traditional manual methods.
How Do I Perform Hot and Cold Clash Detection?
The following video presents a step-by-step explanation on performing "hot" and "cold" clash detection with a 3D CAD Plant model:
The following PDF documents a step-by-step explanation on performing "hot" and "cold" clash detection with a 3D CAD Plant model:
Furthermore, see WIKI here for more specific steps when using Microstation to perform Clash Detection.
Limitations
- Deflected model export will only be in solid mode
- Animation is not supported
- The complete model is exported, i.e. all piping, beams, supports, loads, etc.
- Billboard style is not available with text and may not face user
- Line mode valves, reducers, flex joints, supports and other such components may not face user

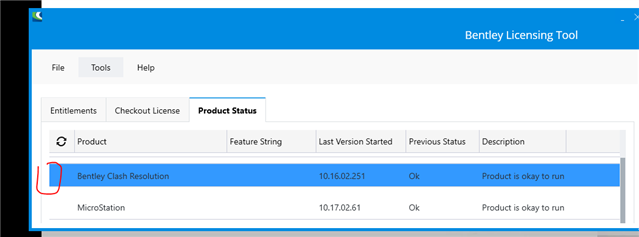

- A license for Microstation / OpenPlant and a License for Bentley Clash Resolution are required to conduct this evaluation.
