iTwin Analytical Synchronizer

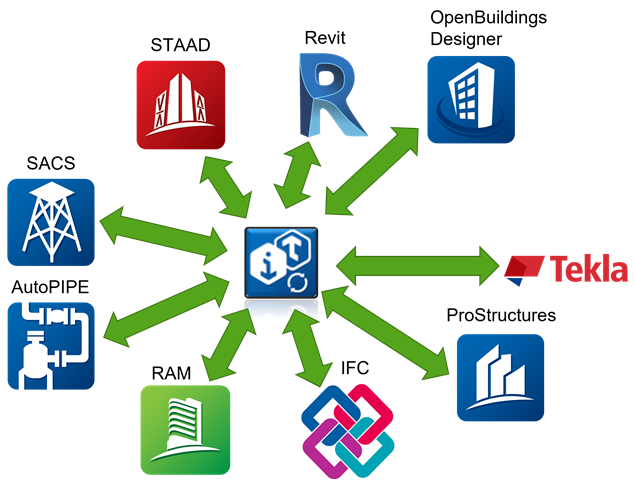

Bentley's Integrated Structural Modeling (ISM) allows structural engineers and designers to share structural engineering project information among modeling, analysis, draft, and detailing software applications using the iTwin Analytical Synchronizer.

In this wiki, we will discuss how connection tags in RAM Elements will ensure that connection information is available in your detailing application.

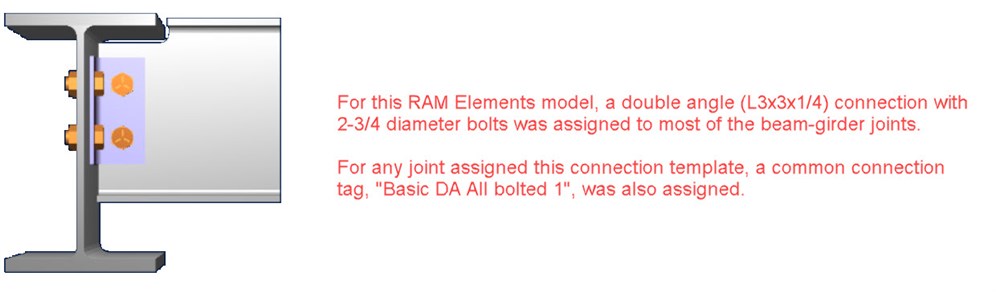

Connection Tags in RAM Elements

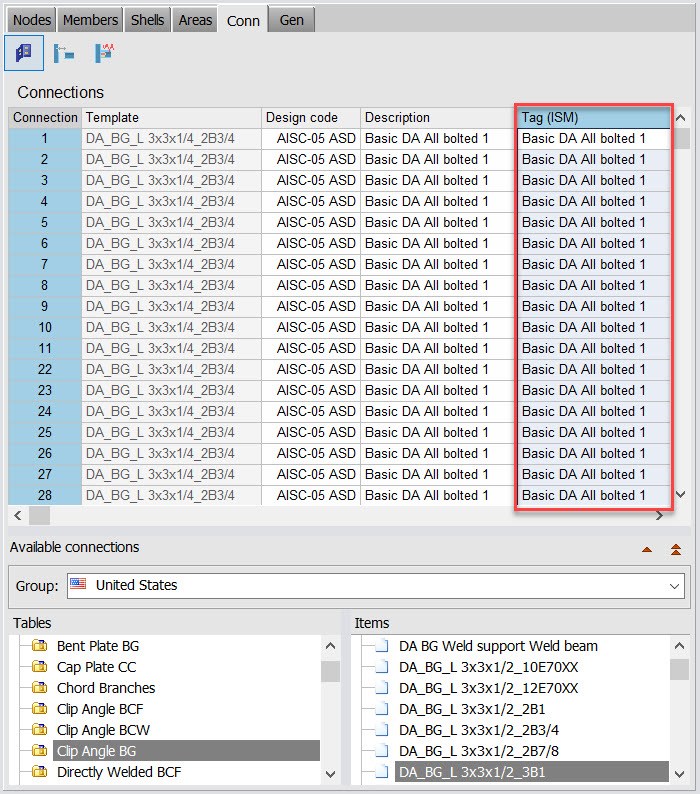

In RAM Elements, Connection Tags can be assigned to connections in the Connection Worksheet.

Connection tags allow the connections that were assigned in RAM Elements to be successfully mapped to connection templates in your detailing application.

Connection Tags in the iTwin Analytical Synchronizer

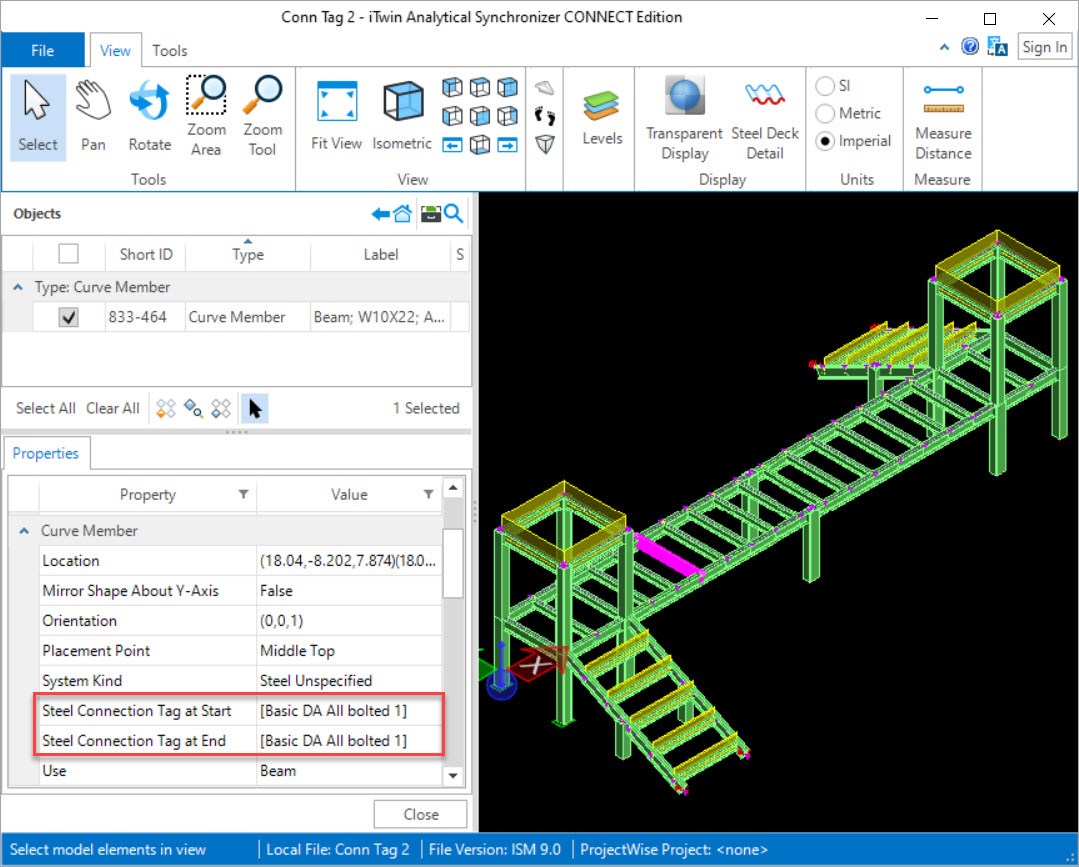

In the iTwin Analytical Synchronizer, the connection tags can be viewed for each member they were assigned to.

Connection Tags in your BIM Application

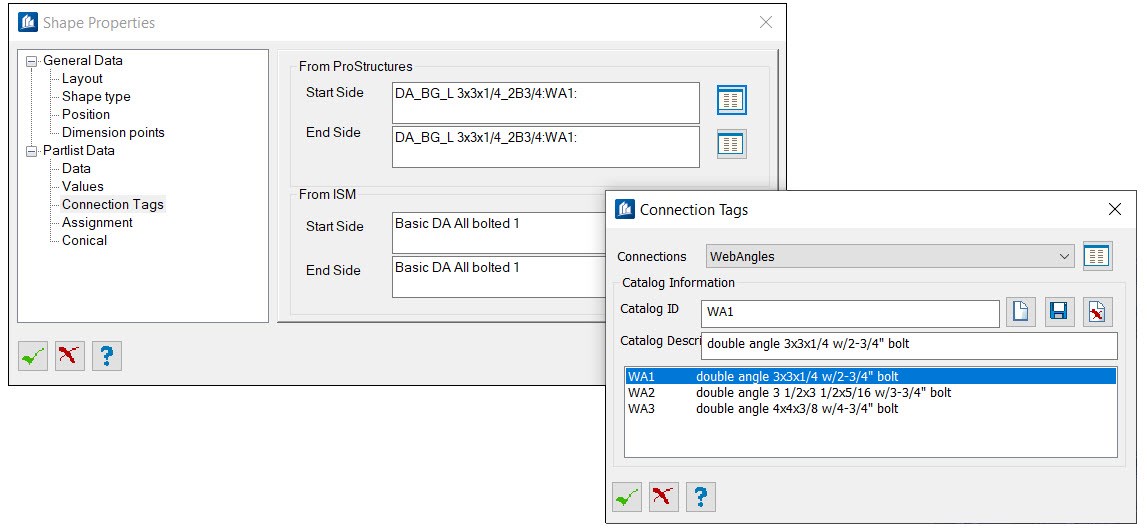

In your detailing application, connection tags can be used to identify common connections and map those connections to a particular connection template.
