Customization of Section in Conbox


Document Information

Document Type: FAQ

Product(s): LEAP CONBOX/CIP RC/PT Girder

Version(s): All

Original Author: Bentley Leap Bridge Technical Support Group – VM

QUESTION:   How to Customize a section in Conbox?

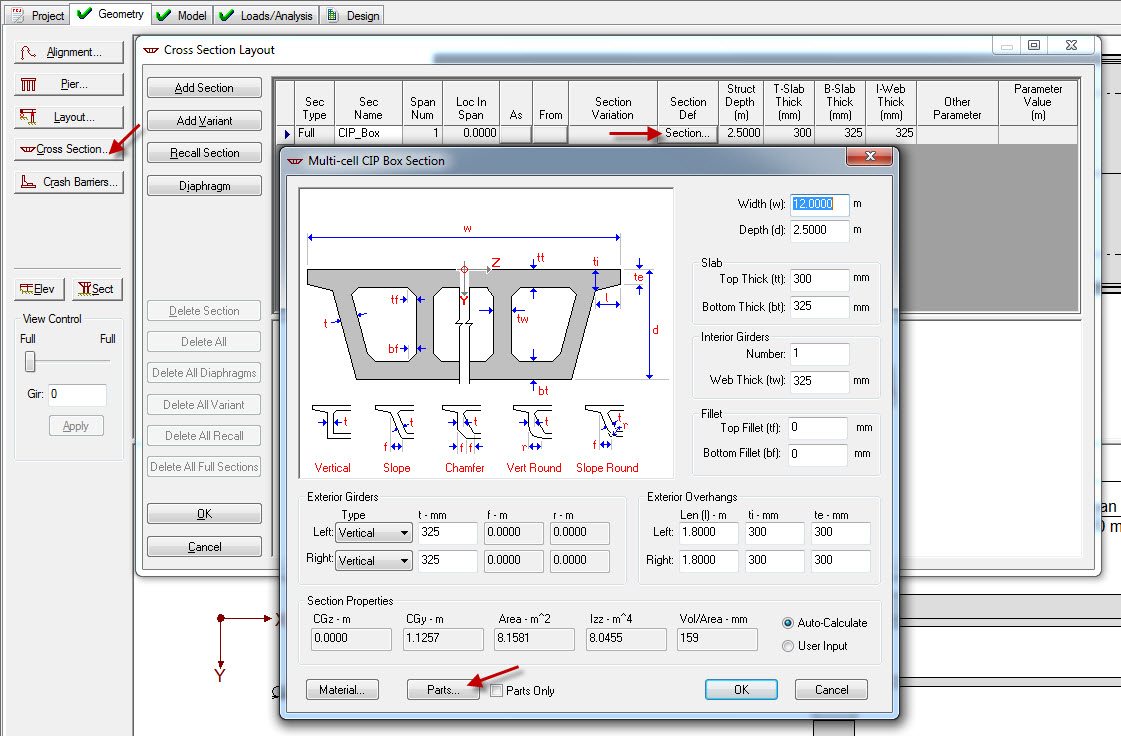

In the Geometry TAB user needs to click on "Cross section" option and then in the new "Cross section layout" window user needs to click on "Section" option under "Section definition "  this will lead to a new window "Multi cell CIP Box section" and here the user needs to click on " Parts " and this will lead to a new window where in user can customize a section by adding or deleting parts and different types of parts which can be assigned are shown and the procedure to assign has been explained graphically.

Please see the attached screen shot for more information.
