Auto Live Load Generation : Integral Pier

Document Information

Document Type: FAQ

Product(s): LEAP RCPIER

Version(s): All

Original Author: Bentley Technical Support Group - VM

QUESTION: In the Auto Load Generation : Live Load window,  What are the meanings for each input block under Integral Pier heading?

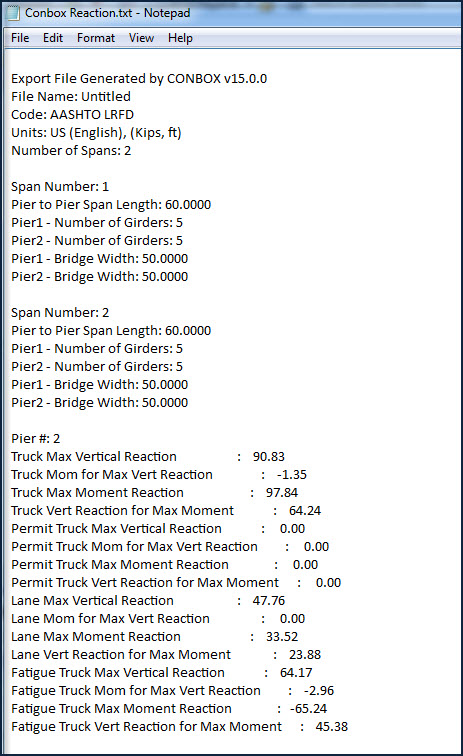

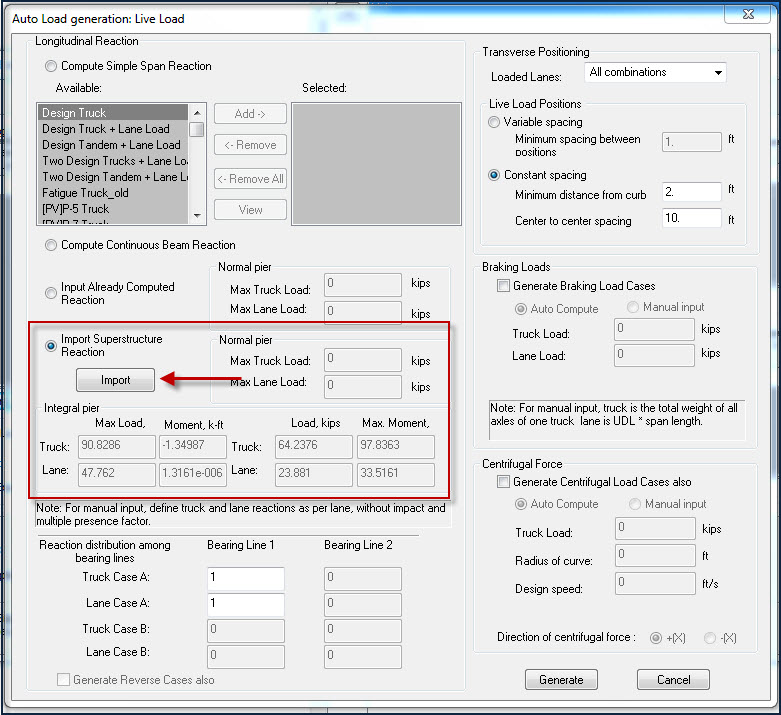

The Integral Pier heading comes under "Import Superstructure Reaction"  . User can import the Integral Pier reaction from Conbox to RCPier using the IMPORT button or the user can manually input the values. Please see the attached screenshot for more information.

Truck --> Max Load  : Truck Maximum Vertical Reaction.
Truck --> Moment     : Truck Moment for Maximum Vertical Reaction.
Lane --> Max Load   :  Lane Maximum Vertical Reaction.
Lane  --> Moment     :  Lane Moment for Maximum Vertical Reaction.

Truck --> Load                 : Truck for Max Moment Reaction.
Truck --> Max Moment    : Truck Vertical Reaction for Maximum Moment.
Lane -->  Load                 : Lane for Max Moment Reaction
Lane  --> Max Moment    : Lane Vertical Reaction for Maximum Moment.

Please see the attached Screenshot for more information.
