Product:	MicroStation
	Version:	V8i
	Environment:	N\A
	Area:	View
	Subarea:	Clip Volumes

Problem Description

Suddenly the Clip Volume cannot be modified or edited. The green and blue arrow handles used to modify the clip volume are not shown or available. The white rectangular section clip box is displayed but clicking on this has not effect. The same Clip Volume can be modified when opened on other machines.

Steps to Resolve

1. Clicking on the white rectangular section clip (image 1 below) should show the Clip Volume Edit Handles, in this case nothing is displayed
2. Check if the Disable Handles option in the Element Selection tool is enable (image 2)
3. If it is, disable it and ensure the Element Selection tool Method is set to Individual and the Mode set to New
4. Click on the white rectangular section clip box and the blue and green Clip Volume Edit Handles should show (image 3)

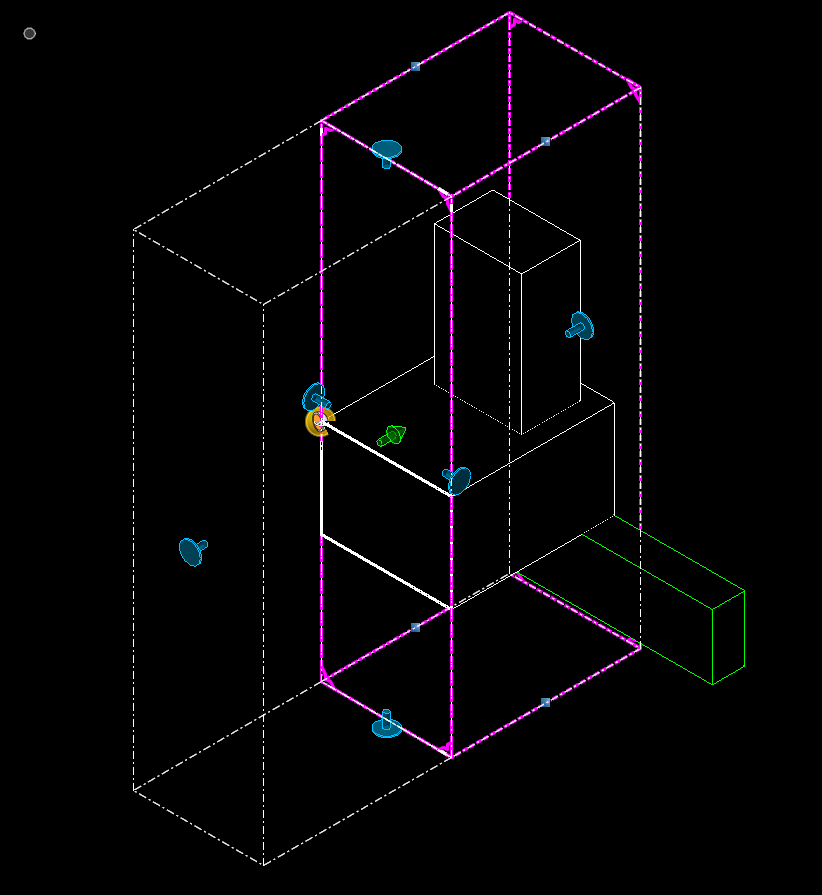

Image 1 - no Clip Volume Edit Handles

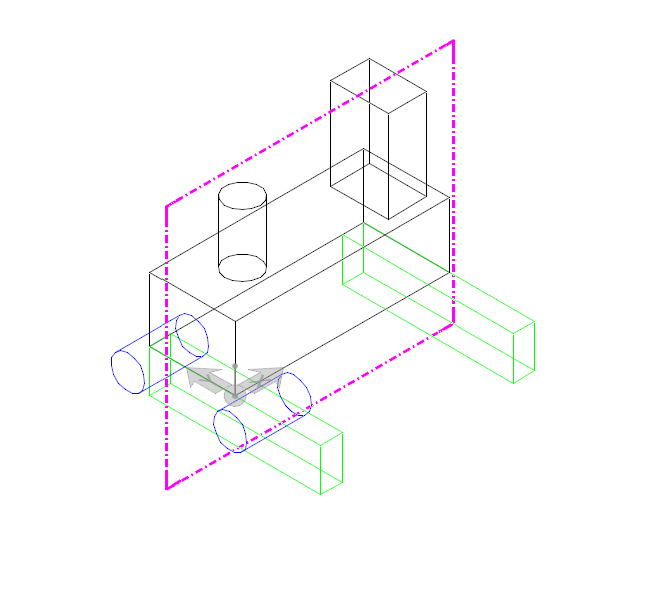

Image 2 - Disable Handles, Element Selection Tool

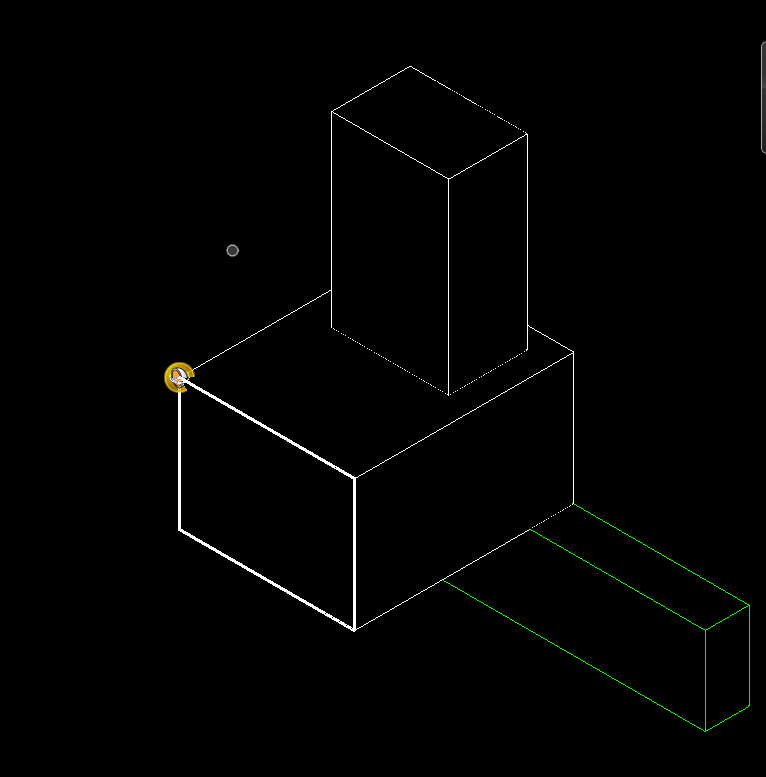

Image 3 - Clip Volume Edit Handles displayed

Note: If there is no white rectangle section clip box displayed either (Iamge 4), and the Disable Handles option is switched off left click on the Marker icon in the view to show the Edit Clip Volume Handles as shown in Image 5 below

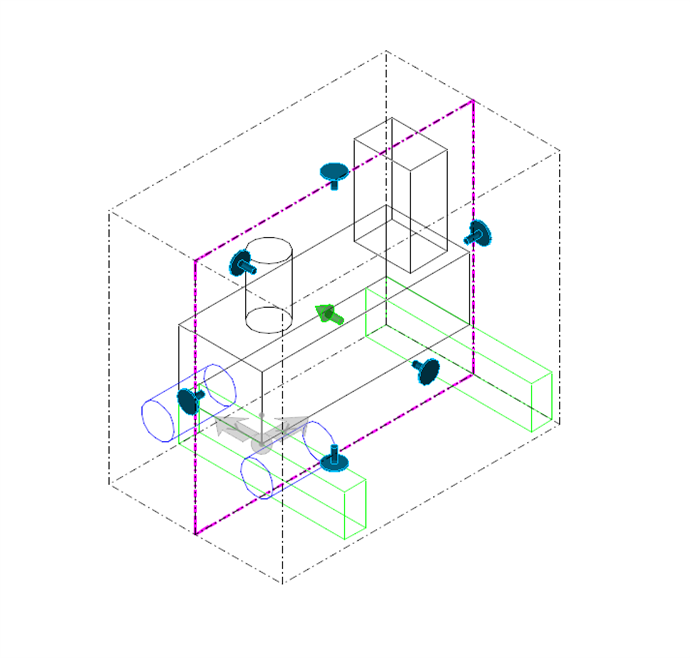

Image 4 - No white rectangle section clip box shown





Image 5 - Clicking on Marker shows Clip Volume Edit Handles
