Two handles at same point in a Complex Chain

Applies To
Environment: N\A
Area: Base Geometry
Subarea: N\A
Original Author:Conor King, Bentley Technical Support Group


Problem Description

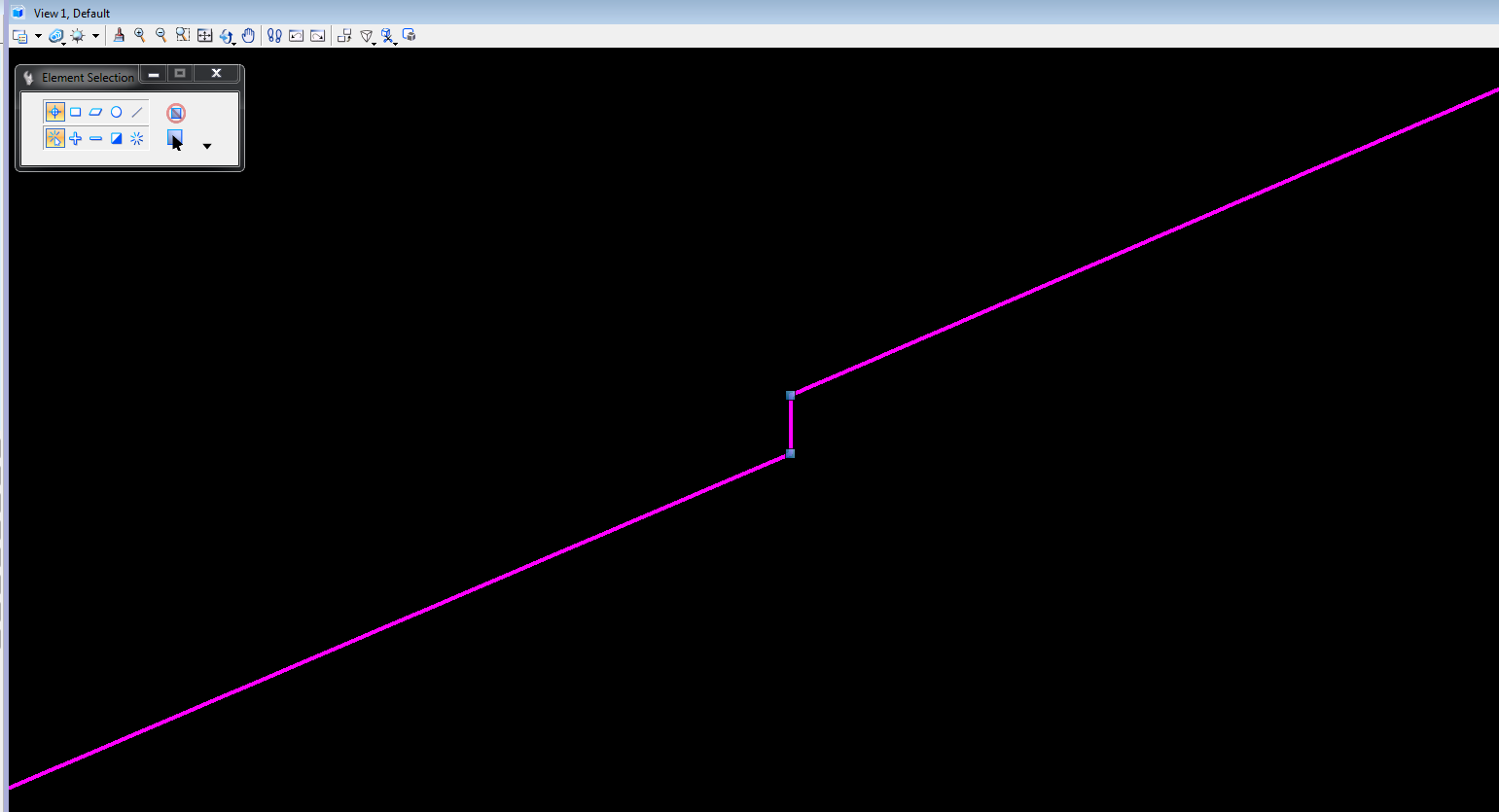

After creating a Complex Chain, there appears to be two handles occupying the same point. When hovering the mouse over the handle, two numbers are displayed in the pop up, see image 1.

Steps to Resolve

Check if the Complex Chain was created in a 3D Model. If so, it is possible there is a very small segment in the Complex Chain that has a Z value, this would account for the extra handle. If viewing the model generally in the Top View orientation, change the View to Front (image 2) or Isometric (image 3) to try and see the segment.

Image 1 - 2 handles displayed

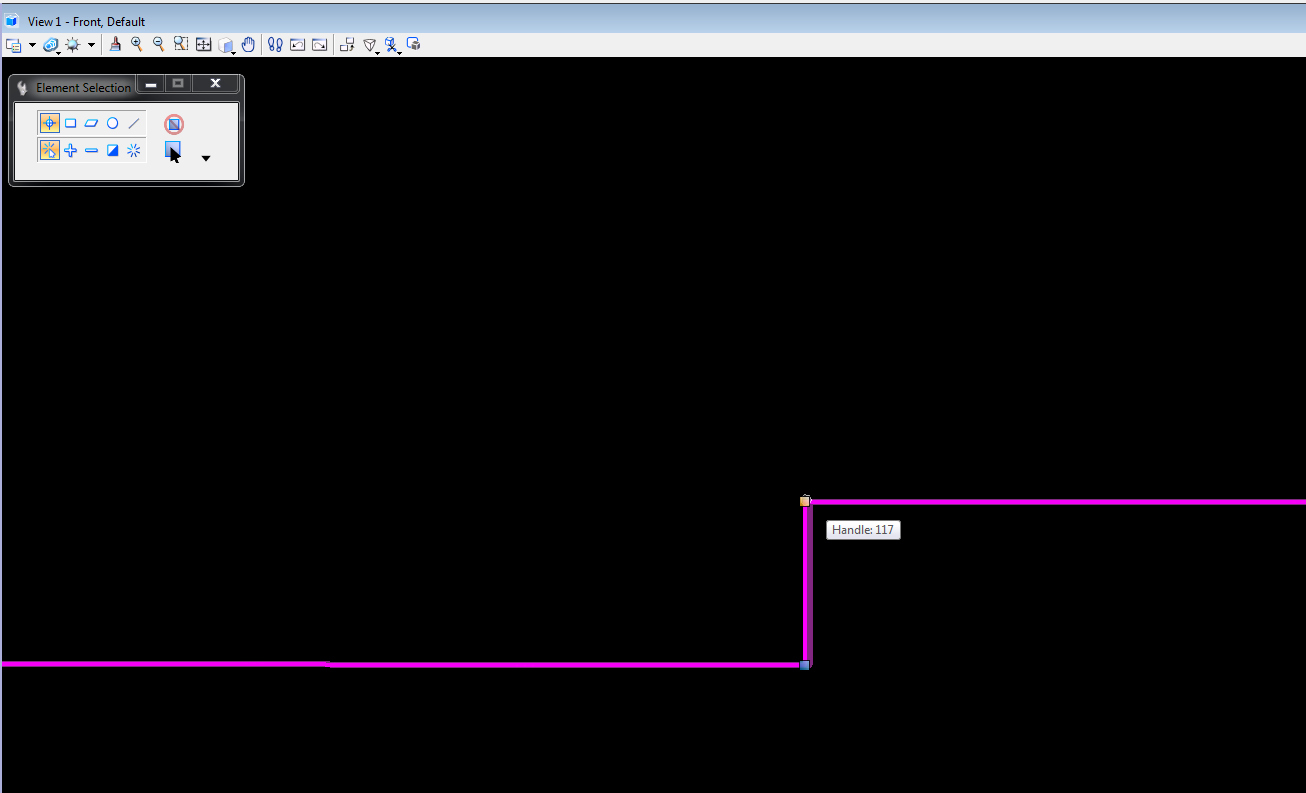

Image 2 - Front View

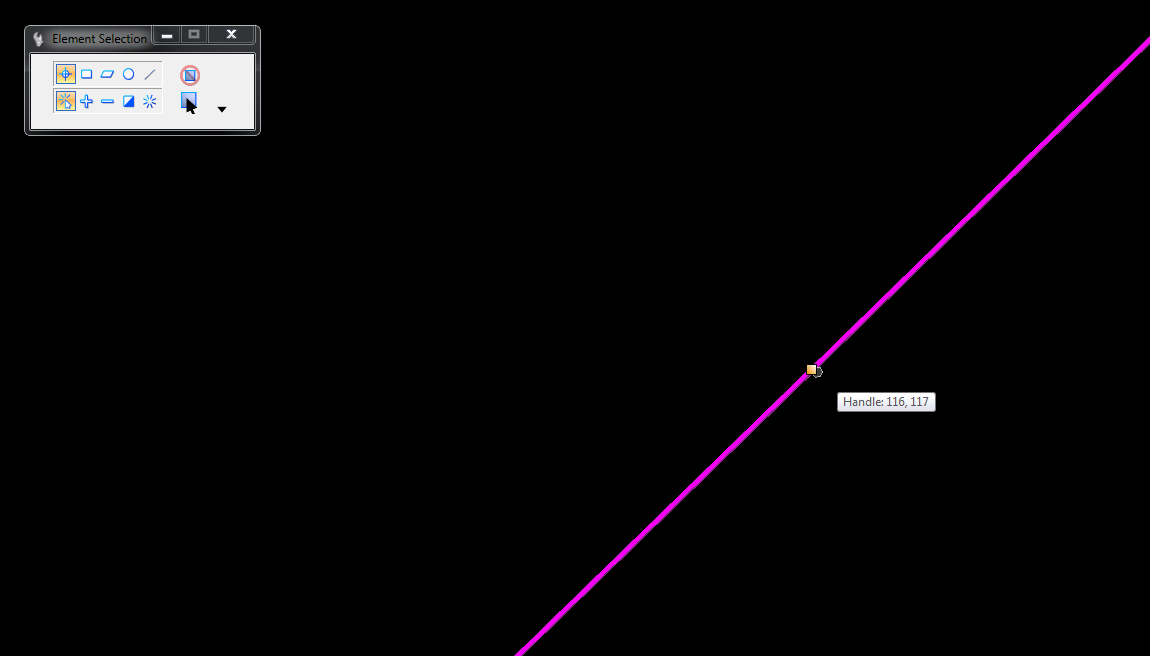

Image 3 - Isometric view
