Ram Structural System can now export its applied gravity loadings to ISM.

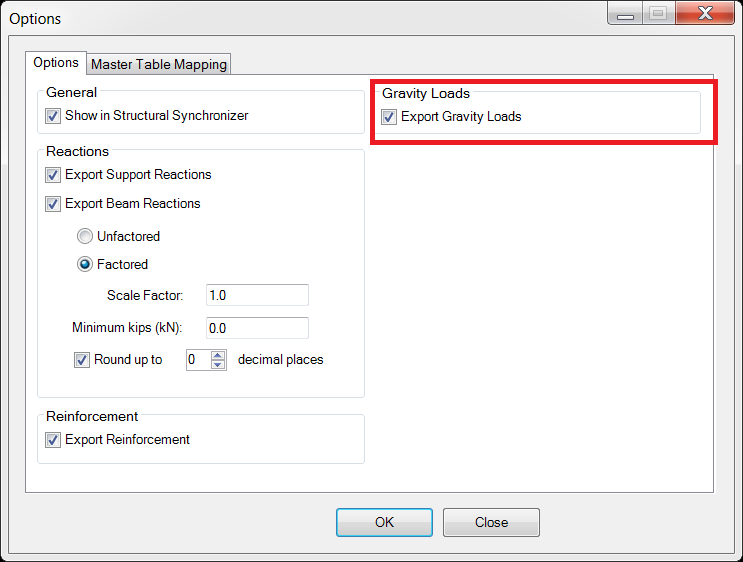

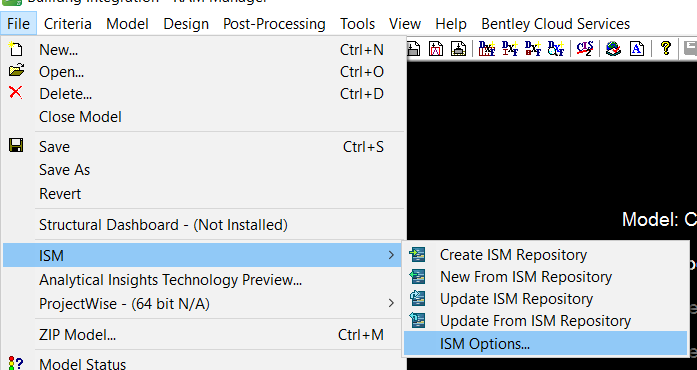

Under File --> ISM --> Options.

 There is now a checkbox option to Export Gravity Loads.

Transfer

In Ram Structural System, point/line/surface loads are firstly created with a "label" and the following loading components defined:

• Dead Load,
• Construction Dead Load
• Reducible Live
• Storage Live
• Unreducible Live
• Roof Live
• Partition
• Construction Live
• Mass Dead Load

then assigned to a particular location in plan in Ram Modeller as points, lines and areas.

In ISM, a load case is created for each loading component, each occurrence of a load will have its name assigned to the same "label". No Load Cases are created if there are no occurrence of a particular load components.

In addition, Snow and Drift Loads are supported as well.

Structural Synchronizer

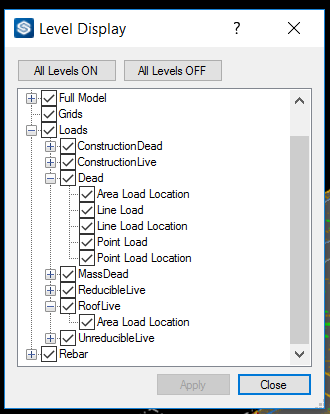

In Structural Synchronizer, Loadings can be viewed or isolated per load cases. Level Display allows you to selectively show and hide different layers.

Loads, Load Cases and type of Loads (Point, Area or Line), can be selected.

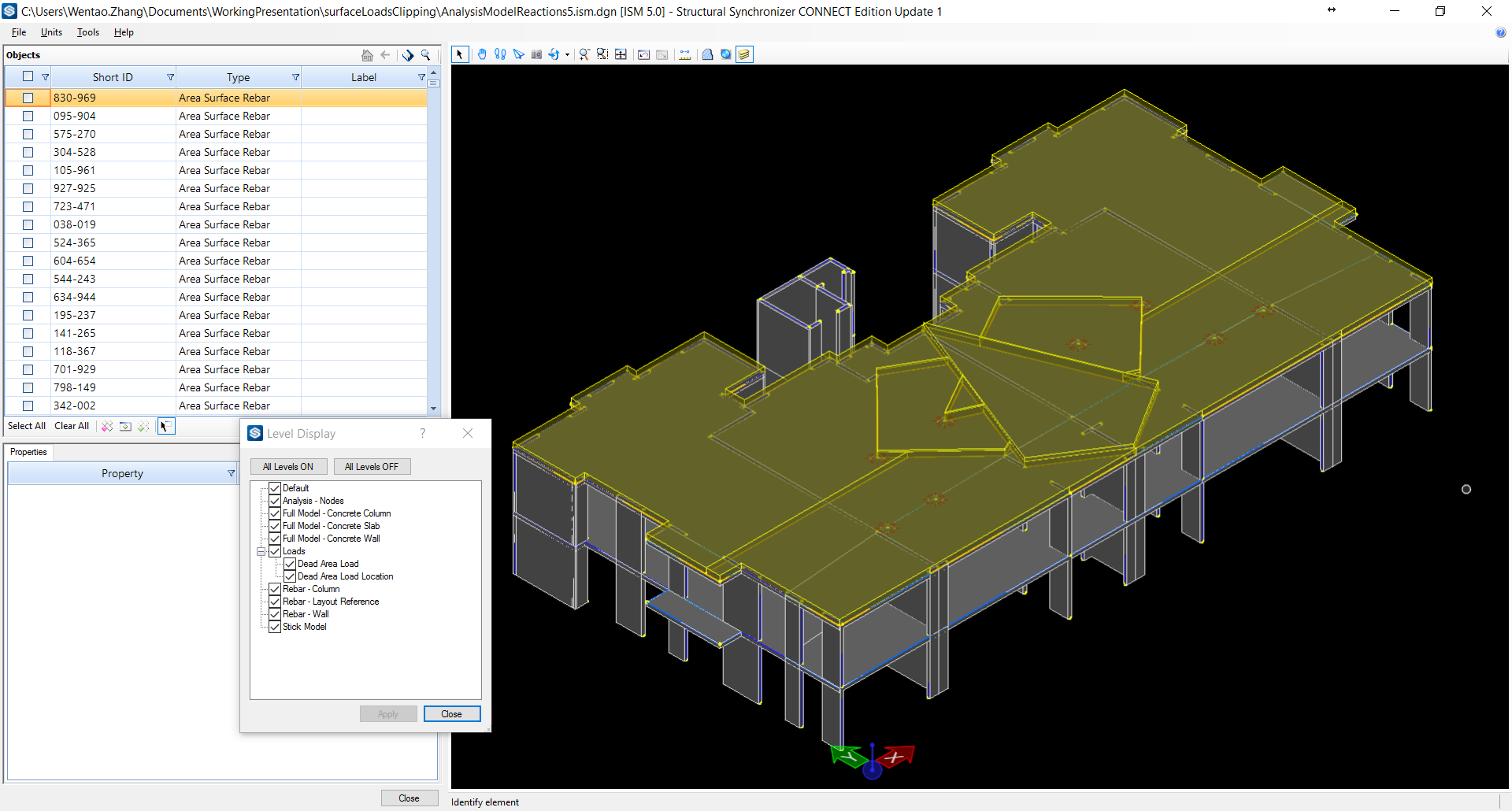

A sample model with Surface Loads as Defined in Ram Structural System and its corresponding view in ISM (Note that Surface Load Polygon Priority is enforced).

Corresponding View in Structural Synchronizer

Limitations

• Note that this enhancement exports APPLIED loads specifically defined in RAM Modeller and NOT resulting loads on individual members
• Surface Load polygons are clipped to slab edge and openings upon export.
• Surface Loads are clipped according to the priority its laid down, a later polygon supercedes anything below it.
