Product:	MicroStation
	Version:	V8i, CONNECT, 2023
	Environment:	N\A
	Area:	Cells
	Subarea:	Replace Cell

Problem

How to replace cells for an entire DGN file and a set of DGN files.

Solution

With this VBA ReplaceCellByName.mvba, all cells in a DGN file can be replaced in a single step.
Using the Batch Process tool, this tool can be executed on many DGN files automatically. Optionally the new cell can be placed as an annotation cell.

Preconditions

• Variable REPLACECELLFILE must be set and define the name of the text file or XLS file.
• Format of the text file:
  • Old Cell Name, New Cell Name, Scale Factor, Is Annotation Cell (1=yes, else no).
  • New Cell must be a Cell in a library defined by MS_CELLLIST.
  • # Comment after # sign is allowed.
• Optionally an XLS file can be used .e.g. an XLS file that is used with the MicroStation’s Remapping tool.

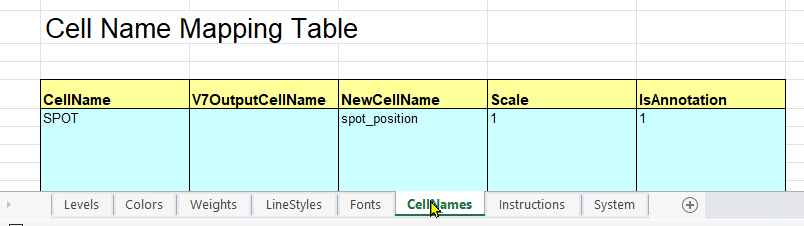

        Format of the XLS file:
  • In CellNames tab, besides 2 columns (CellName and V7OutputCellName),
          3 columns are added:
    • NewCellName
    • Scale
    • IsAnnotation (1=yes, else no)





Original Author:

Kees van Prooijen
