Asset & Project View
Table of Contents

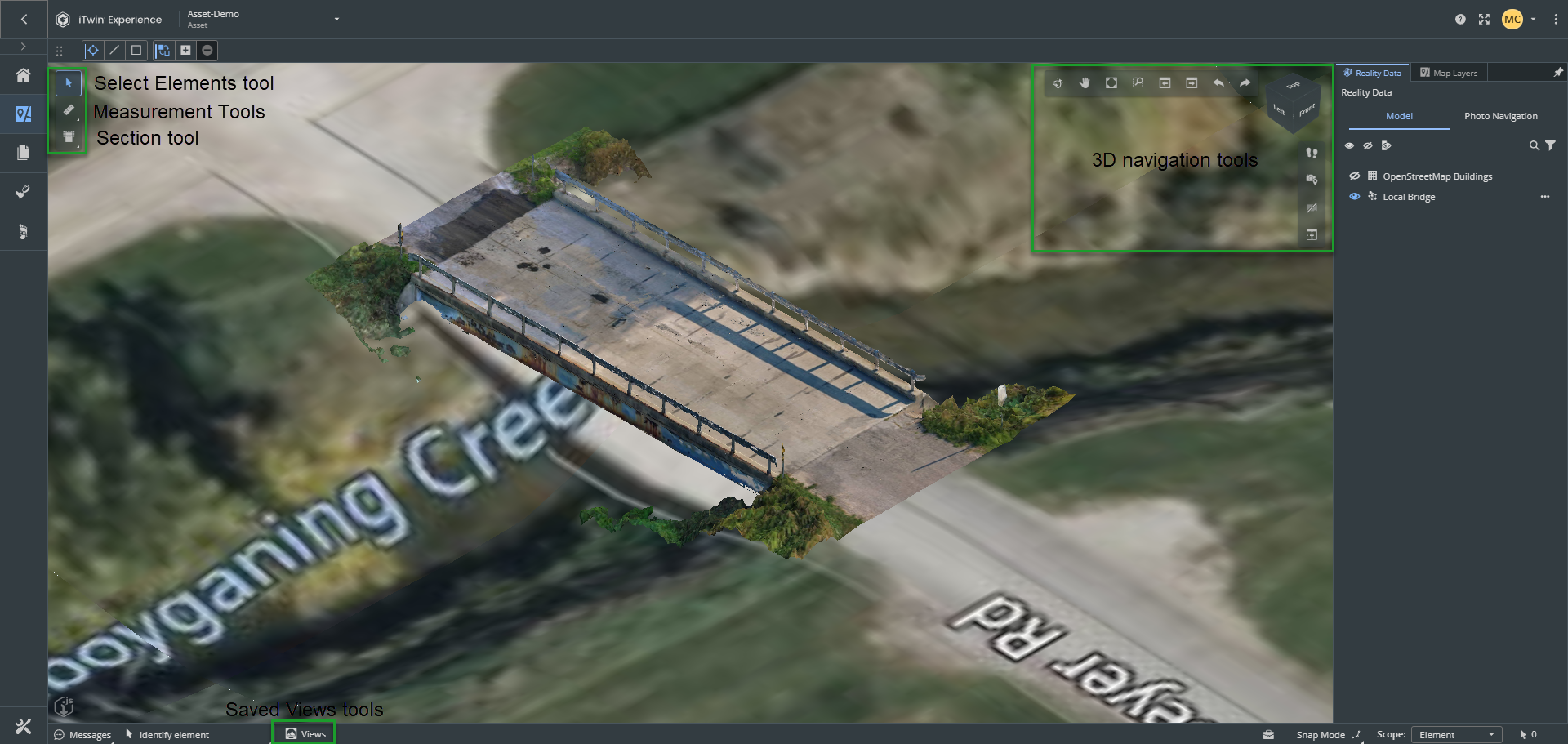

The Asset & Project View is the central area of the application where BIM, IoT sensors, Map layers and Reality Data are displayed.
Select element tool
Use this tool to select any element on your digital twin, such as IoT sensors, BIM elements or crack detections.
Measurement tool

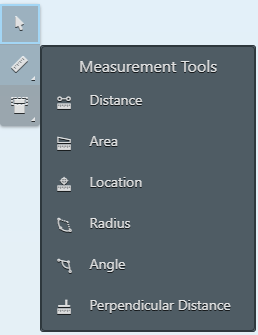

The measurement tool allows you to measure distance, area, location, radius, angle or perpendicular distances.
For more information on how to use the tools, consult the Measurement page.
Selection tools

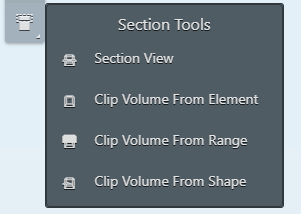

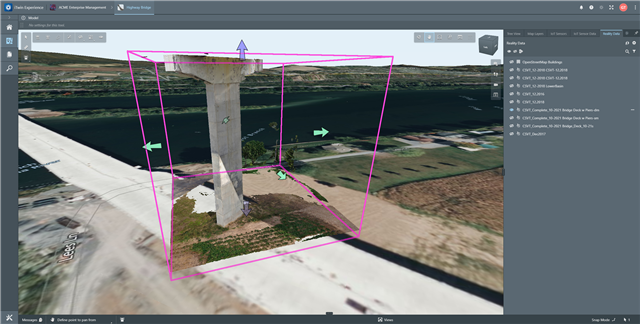

The selection tool allows you to isolate some of your BIM or Reality Data for better viewing. You can create isolated blocks or slices of your 3D model.
Navigation tools
The navigation tools allow you to navigate through your Asset View easily.
|
|
Rotate About Point |
Rotate the view about a user-defined pivot point. |
| Pan View | Pan around the model by clicking and dragging the view to a different location. The middle Mouse button + drag can also be used to pan. |
|
| Fit View |
Fit all of the visible model elements within the view. |
|
| Window Area | Zoom into a user-defined windowed area. | |
| View Previous | Return to the previous view. | |
| View Next |
Undo the 'View Previous' command to return to the original view. |
|
| Search Address |
Type in an address, zip or postal code. |
|
| View Cube |
Interactive cube to adjust the view of the model. Click on the cube's faces, edges and corners to move the camera to the specified view. Click and drag on the cube to rotate the model. |
|
| Set Up Walk Camera |
Define a floor position and a direction for the camera. |
|
| Walk | Enter Walk mode to walk through the model. | |
| Camera On/Off | Toggle the camera between the perspective view and the isometric view. | |
Mouse and Keyboard Shortcuts
Several mouse and keyboard shortcuts are also available to navigate the model without changing the selected tool.
| Rotate About Point | Rotate the view about a user-defined pivot point. | |
| Pan | Pan around the model by clicking and dragging the view to a different location. | |
| Zoom | Zoom in and out from the model at the mouse cursor's location. | |
| Tentative Snap | Cycle through any elements that are under the mouse cursor. Left-click to accept the selection. | |
| Fit View | Fit all of the visible model elements within the view. | |
| Look | Look around the model while keeping the camera at a fixed location. |
Saved Views
Saved views allow users to easily jump to points of interest in the model. A saved view remembers the camera location and orientation along with the categories and models that have been set to display.

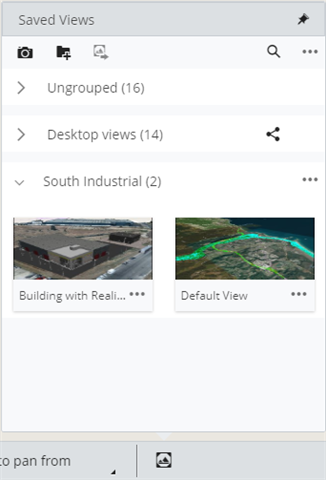

The Saved View tab gives you the ability to apply views as well as to create new views that can be used later. Views display as thumbnails sorted alphabetically by group. You can filter the list by selecting the search icon and using the search bar that displays.
Create a Saved View
To capture the active view to recall in the future or share with others, first set up the view as you want it to be saved. This includes orienting the camera, ensuring the elements you want to be displayed and any sections you want to be applied are set. Next, open the Saved View dialog from the status bar and select the "Create a new saved view" button. You will be prompted to provide a name for your saved view, and that's it. Now your saved view is ready to be used.
Note: The more actions button to update, share or delete a saved view will only appear for your created views.
Applying a Saved View
Applying or opening a saved view is very simple. Just open the Saved View dialog and select the saved view you want to apply; if you have a very long list of saved views, then you can use the search bar to filter the list by typing in part or all the names of a saved view. The view will update and appear like it did when the saved view was created.
Sharing a Saved View

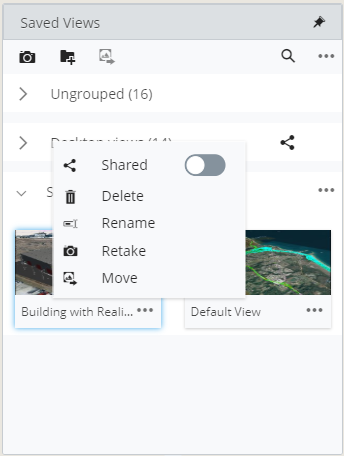

By default, when you create a saved view, they will only be visible to you. If you want to make the saved view available for others on the project team, then you need to share the view. To share a view, click the more actions button "..." next to the saved view you want to share. From the context menu, select the "Share" option. The shared, saved view will now appear for others in the Saved View dialog.
Set as Default View
You can create a saved view and set it as default. This means you and your team members can load the model and/or the inspection at a view that is optimal to your workflow.
How to Use the “Set as Default View” Feature:
- Create a Saved View: Before using the “Set as Default View” option, ensure you have a saved view created.
- Access the Set as default view: Once your saved view is in the saved views dialog, you can access the new feature from the “Options” button.
- Activate the Set as default view: Select the “Set as Default View” option to set your preferred view as the default.
It is important to know that it is possible to define one Default Saved View for the iTwin and it is available for all users to access it.
Reality Data Widget
The Reality Data Widget is your gateway to list, manage visibility and control display settings of Reality Data that are associated with the current iTwin, and optimized for use in Powered by iTwin web applications.
Additionally, it includes filtering and searching tools to make managing reality data easier and more efficient.
The Reality Data Authoring Status
When a pencil icon is displayed next to a Reality Data's name, it means that another user is authoring it and may be incomplete.
Toggle Reality Data Visibility
Use the eye icons to turn On/Off the display of Reality Data in the application's viewport.
View Reality Data Properties
Click the name of a Reality Data in the list to open its properties.
Search & Filter
Click on the Search tool and type few characters to search into the list of reality models.
Click on the Filter tool to filter the list of reality models by specified keyword.
For more information on how to use the Search and Filter tool, please consult the Reality Data Widget Filters section.
Reality Data Display Settings
In the Reality Data Widget you can control the display settings of all the Reality Data that are associated to the iTwin.
For more information on how to use the Reality Data Display Settings, please consult the Reality Mesh Display Settings and the Point Cloud Display Setting sections.
Map Layers Widget

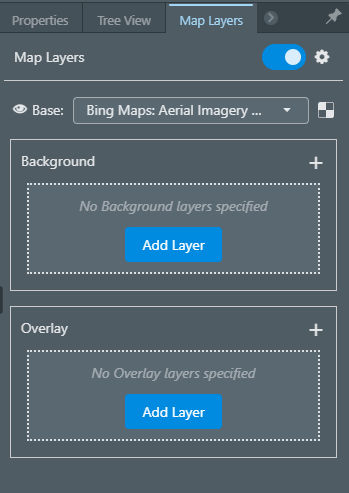

The Map Layers widget allows to manage the display of the Base Layer and ArcGIS MapService, ArcGIS FeatureService, WMS and WMTS layers.
Use any GIS server (ESRI, open source MapServer, GeoServer, etc.) to compose your map in a third party application. Then, add new connections to the service through the Map Layers widget and access your GIS data.
For the complete documentation, please follow this link to the Map Layers widget.
For more information on how to create an asset and configure it, consult the Assets and Projects page in the iTwin Configuration section.
