How to Change the Default Value of Number of Segments for HVAC Mitered Elbow



 Applies To

 Product(s):OpenPlant Modeler
 Version(s):08.11.09.XXX
 Environment: Windows 7 64 bit
 Area: Component
 Subarea: Graphics
 Original Author:Harpreet Singh, Bentley Technical Support Group




Background

In OpenPlant Modeler, by default the number of segments on HVAC Mitered elbow is set to 4. This article will explain the procedure to change it as per requirement.

Steps to Accomplish

  1. Open class editor and load OpenPlant_3D schema.
  2. Supplement OpenPlant_3D_Supplemental_Modeling and OpenPlant_3D_Supplemental_Metric_DefaultValues with it.
  3. Go to HVAC_ROUND_MITERED_ELBOW class and select Number of Segments property.

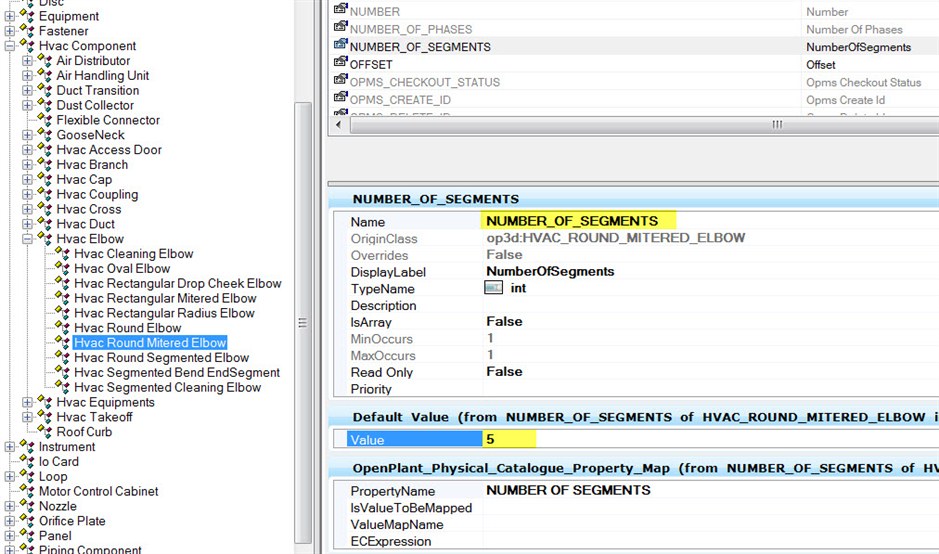

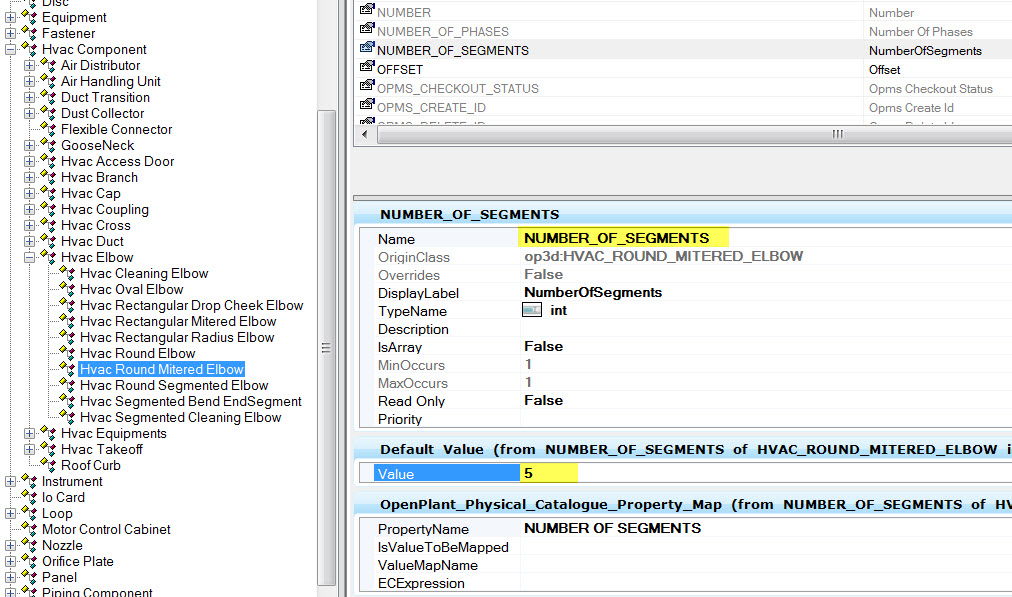

  4. Change the value field in Default Value custom attribute as highlighted above and save the changes.

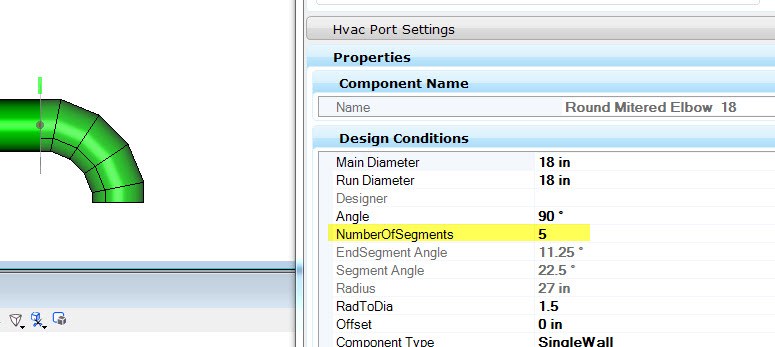

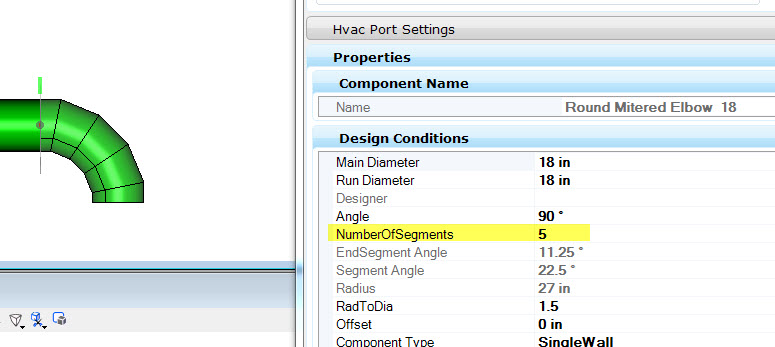

  5. Verify the result in OPM.
