Applies To
	Product(s):	OpenPlant Modeler
	Version(s):	08.11.09.XXX
	Environment:	Windows 7 (64 bit)
	Area:	Drawing Generation
	Subarea:
	Original Author:	Harpreet Singh, Bentley Product Advantage Group

Problem Description

When PDF is printed from sheet model in OpenPlant Modeler, shape of the circle change to polygon. See below snapshots.

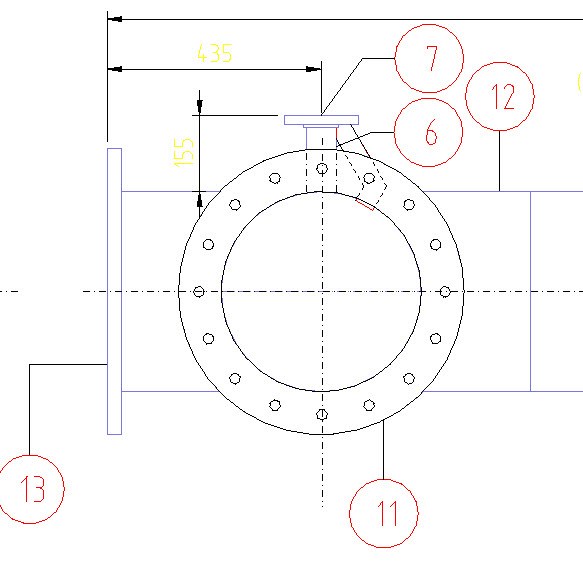

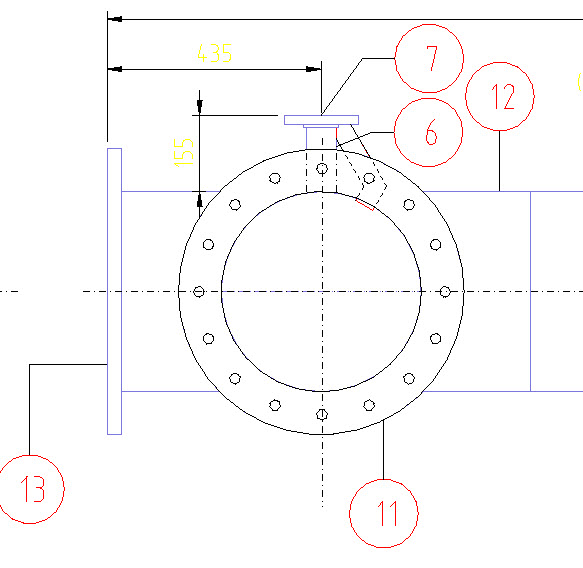

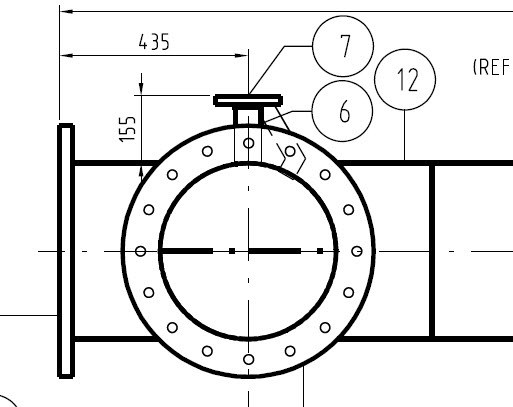

Shape in the 2D Sheet Model:

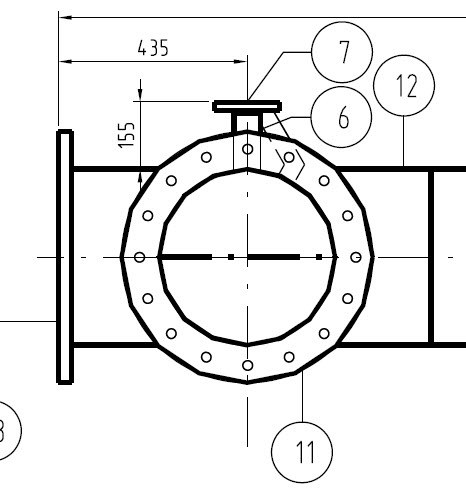

In PDF file:

Steps to Resolve

1. In the sheet model, Go to File > Print to PDF.

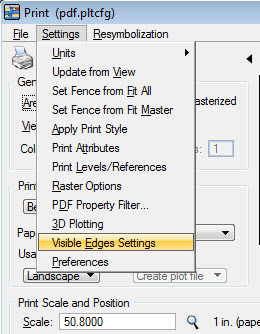

2. In Print dialog, go to Settings > Visible Edge Settings.

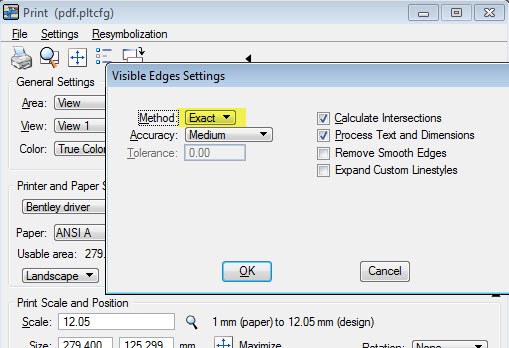

3. In Visible Edge Settings, change the method from Fast to "Exact" and click OK.




4. Print the PDF file and verify the result.



Still a Problem?

If above problem still persist, then please create a Service Request and contact the Bentley Product Advantage group. Please include a list of all relevant details to get in depth analysis for a solution or workaround.
