Overview
This wiki will explain how one can adjust the detail resolution of circular objects to get the detail output as a circle instead of a polygon in the ProSteel CONNECT Edition.
Steps to be follow
Please follow the below steps to achieve this.

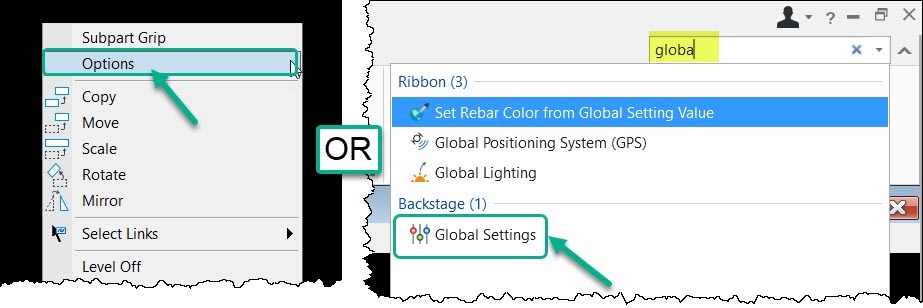

1. Open the Global Settings or Options by holding the right mouse button in the View window and then click on the Options. Or search ‘Global Settings’ in the Search Ribbon and click on it to open it.
2. In the Options dialog, go to the Values page and here one can change the Circles resolution value. The default value is 32. Once the changes have been made then click on the OK button to save.
3. Open your detail style and turn on Real Sections option located in 2D Display > Common > Add.

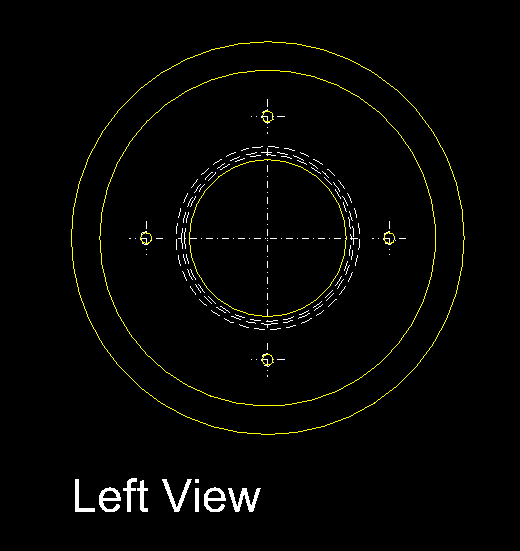

4. Now, preview the object in the detail center to see the effect. You will get the output as shown in the below image.
In this way, we can adjust the detail resolution for circular objects in ProSteel CONNECT Edition.
