To rotate view at some angle in existing View Arrangement Definition (VAD) File in OpenPlant Orthographics Manager

Background

If user want to rotate existing view at some angle in view arrangement definition (VAD) file, then user needs to follow below mentioned steps.

Steps to Accomplish

Launch OpenPlant Orthographics Manager and select a project

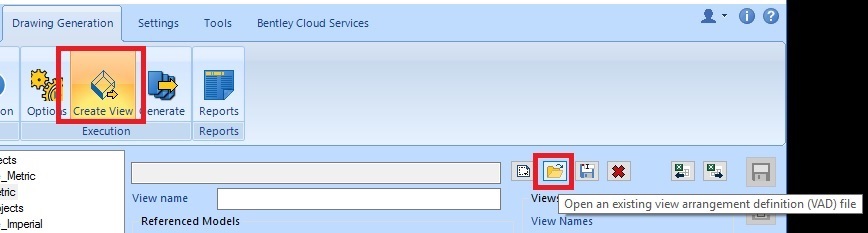

Go to Drawing Generation –-> Create View
Select “Open an existing view arrangement definition (VAD) file” from “Open” button

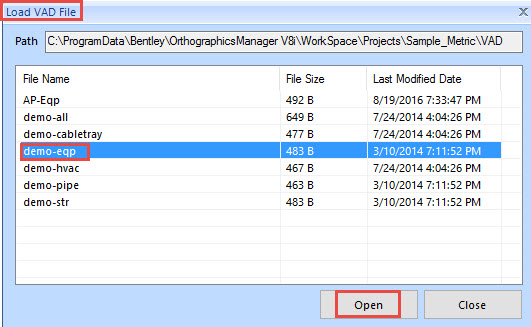

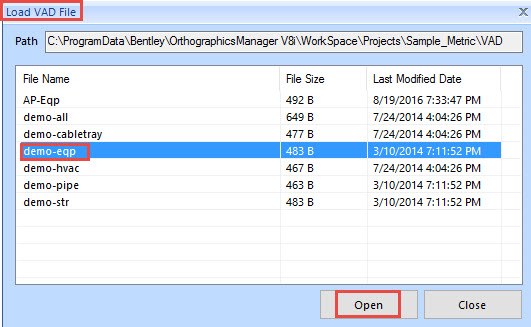

Load a view arrangement definition file to “Edit” from “Load VAD File” dialog

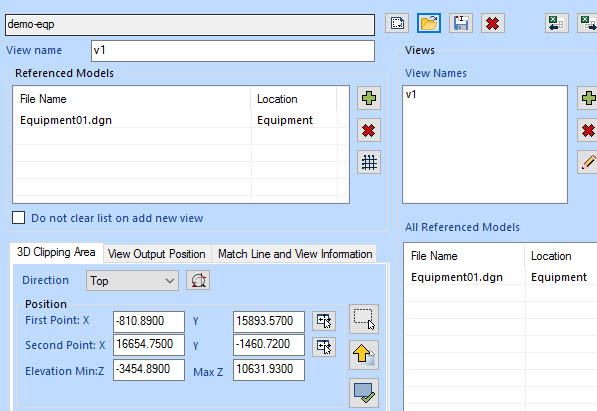

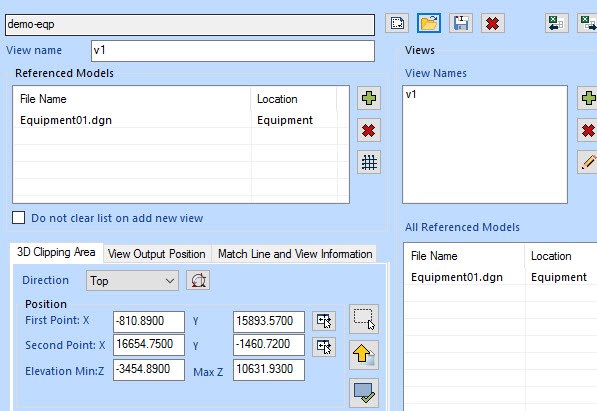

The selected file will be loaded in OpenPlant Orthographics Manager

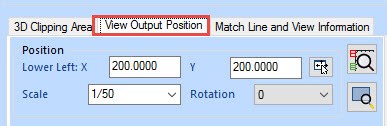

Go to “View Output Position” tab

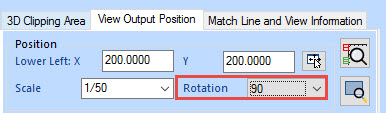

Change the angle to desired one from “Rotation” drop down say change it to “90”
Save the changes by pressing save button

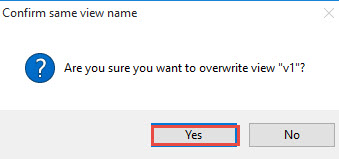

Press “Yes” to “Confirm same view name” confirmation pop up message
After saving, go to Drawing Generation ---> Generate

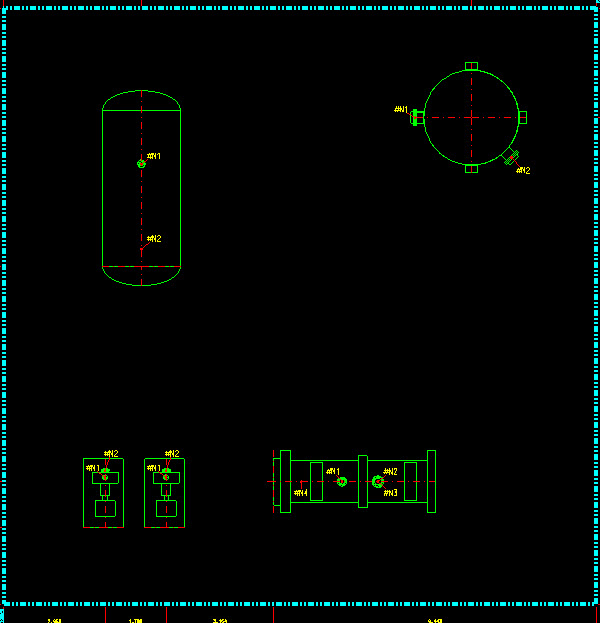

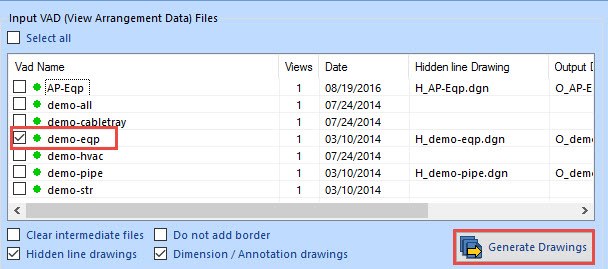

Select a View Arrangement Definition (VAD) File in which rotation angle is defined by clicking the box and press “Generate Drawings” to generate output drawing

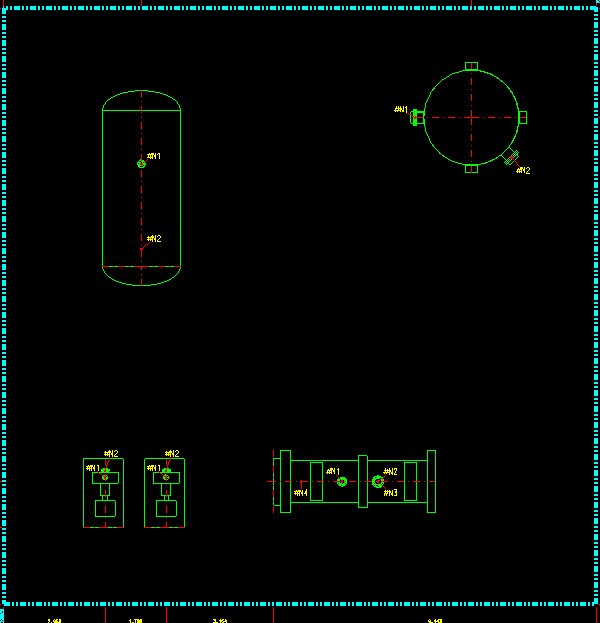

Confirm that angle in changed to selected one (90 degree in this case)
