How to Change Default Bend Radius for Mitered Bends


Applies To

Product(s):OpenPlant Modeler
Version(s):08.11.09.XXX (SS5) | 08.11.11.XXX (SS6)
Environment: Windows 7/8.1/10 (64 bit)
Area: Settings/Attributes
Subarea:
Original Author:Harpreet Singh, Bentley Product Advantage Group



Background

In OpenPlant Modeler, by default the Bend radius factor Mitered Bend is set to 3R. This article will explain the procedure to change it as per requirement.

Steps to Accomplish

  1. Open class editor and load OpenPlant_3D schema.

  2. Supplement OpenPlant_3D_Supplemental_Modeling and OpenPlant_3D_Supplemental_Metric_DefaultValues with it.

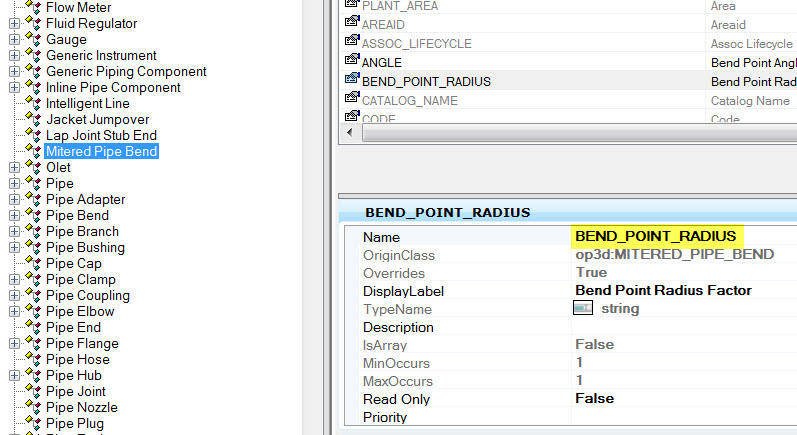

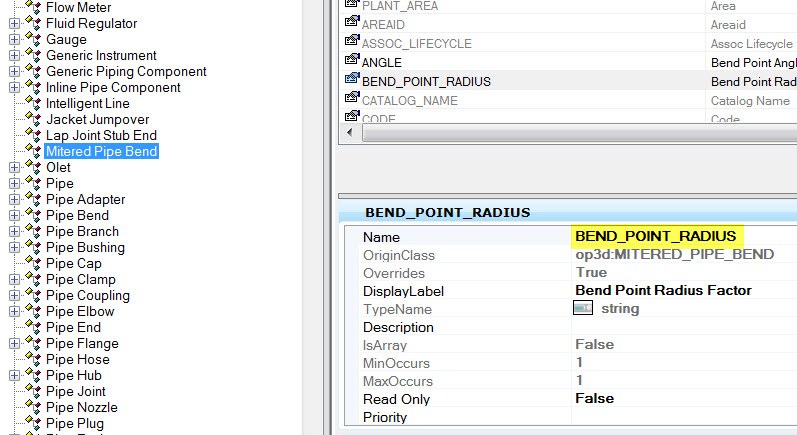

  3. Go to MITERED_PIPE_BEND class and select Bend Point Radius Factor property.

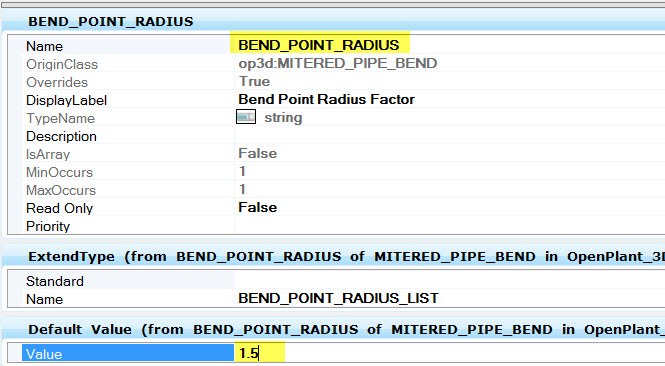

  4. Change the value field in Default Value custom attribute as highlighted.

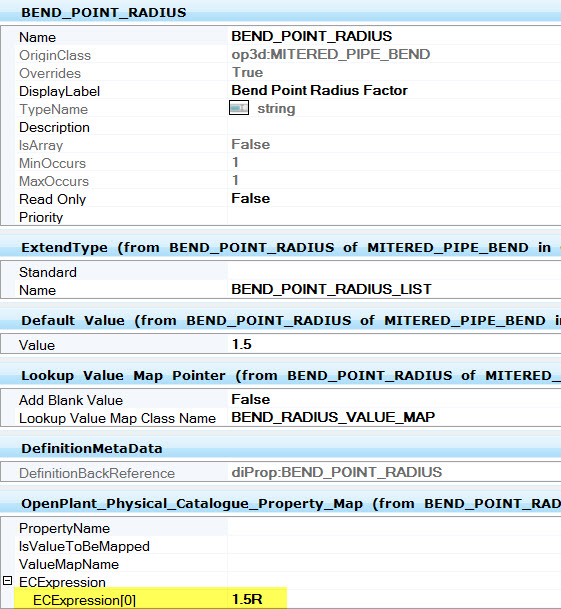

  5. In OpenPlant_Physical_Catalogue_Proeprty_Map custom attribute change the value 3R to 1.5R.

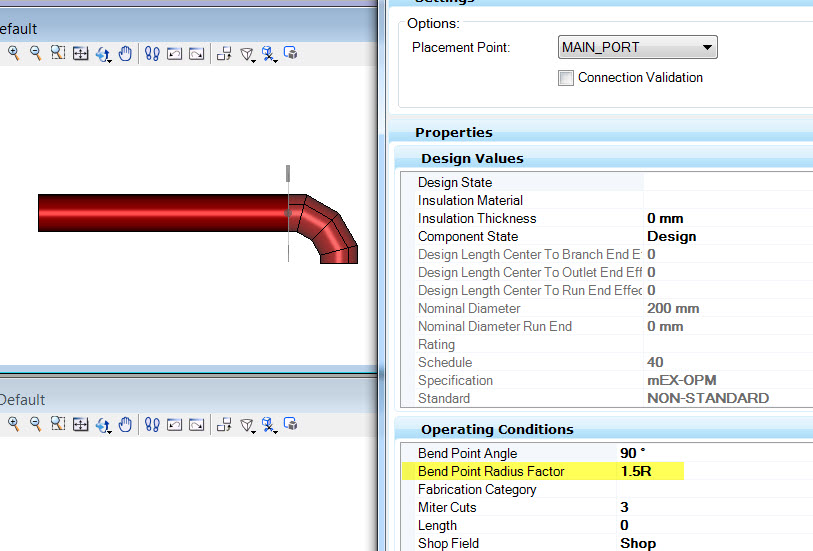

  6. Verify the result in OPM.
