Background
In OpenPlant Modeler there is a possibility to place Section Views and Callouts to identify a section view on a Sheet Model.
Below you will find steps how to place Section Callout in your model.
Steps to Accomplish
- Open your model in OpenPlant Modeler and set View Rotation from which you would like to place Section Callout.

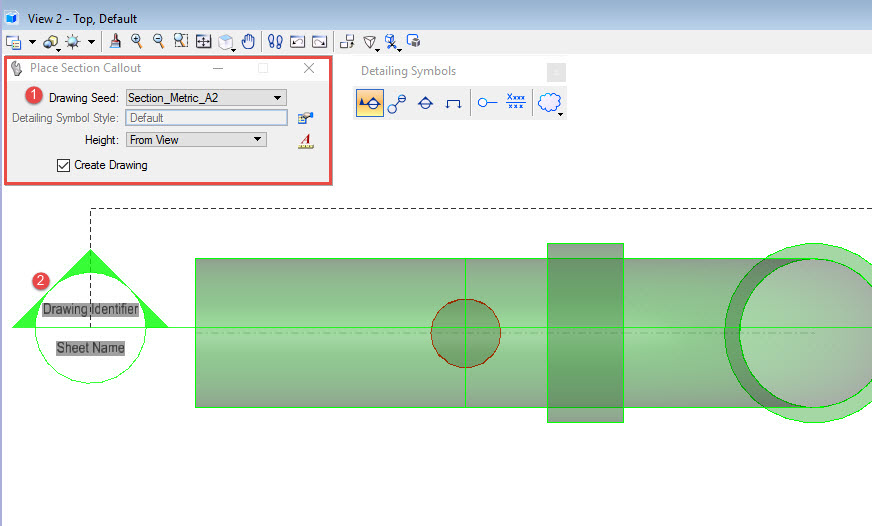

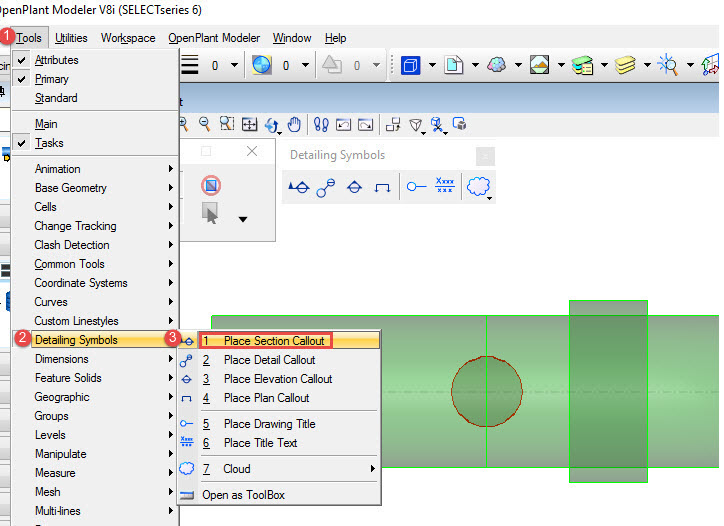

- Click Tools>Detailing Symbols>Place Section Callout.

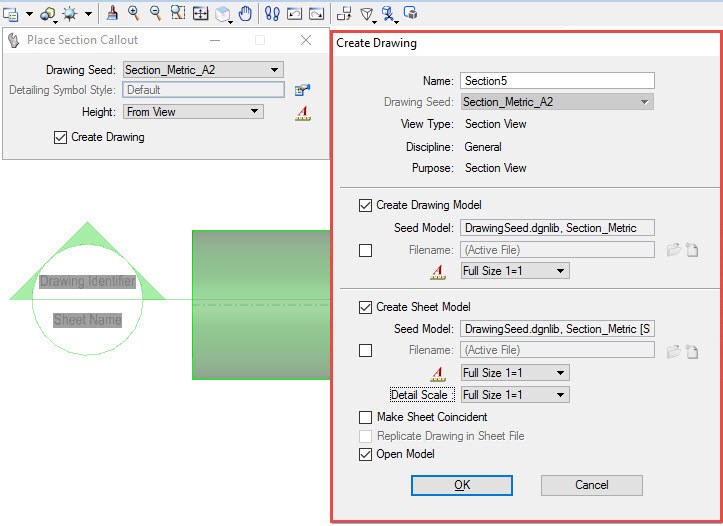

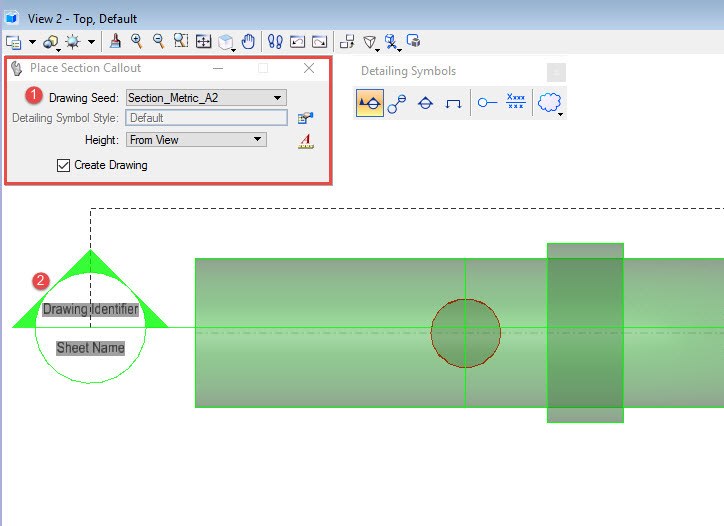

- In Opened dialog select Drawing Seed and then place a Section Callout

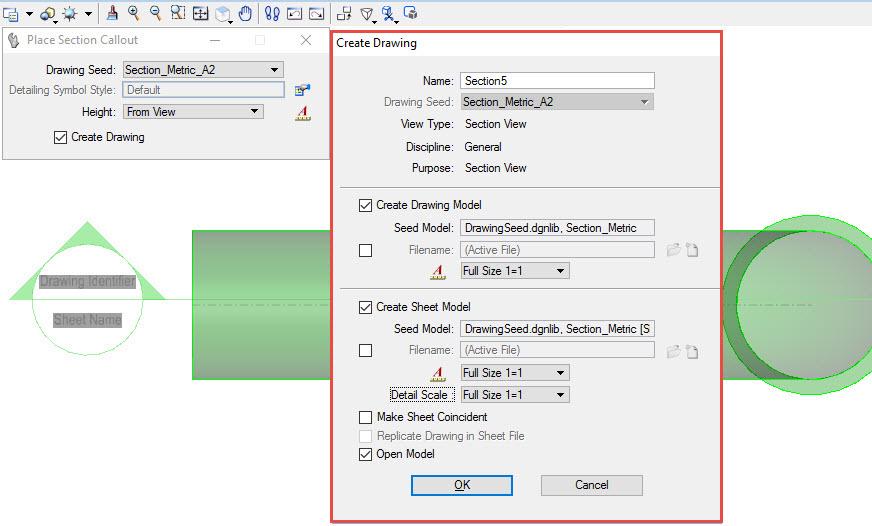

- Then Drawing Creation dialog will open and you will be able to sett required settings for Drawing and Sheet models

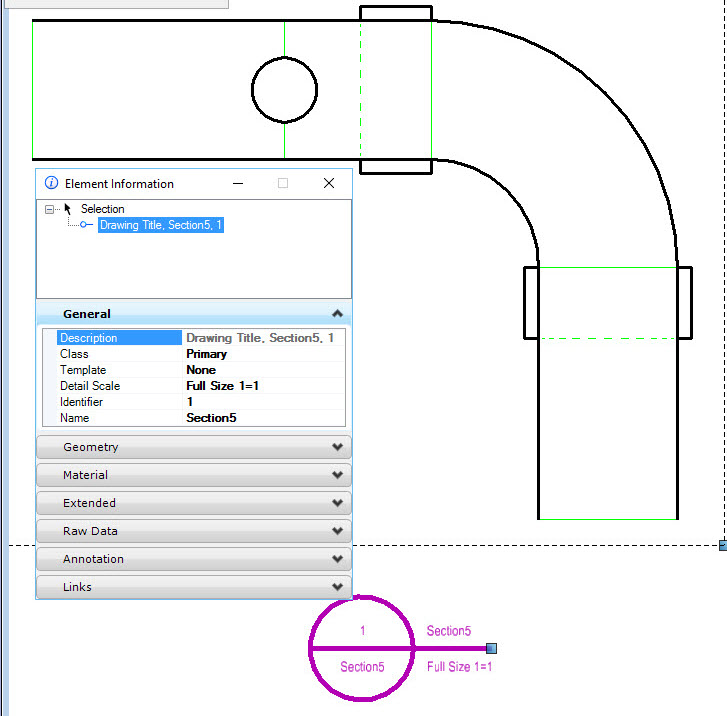

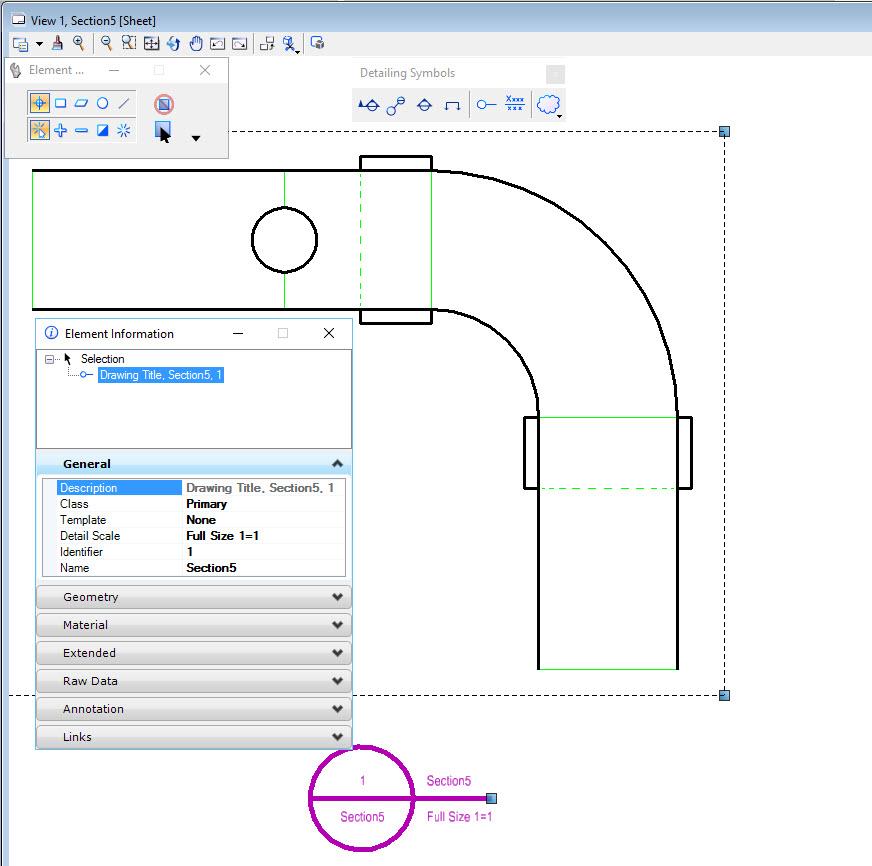

- After accepting with these settings a newly created Sheet model will be opened right away

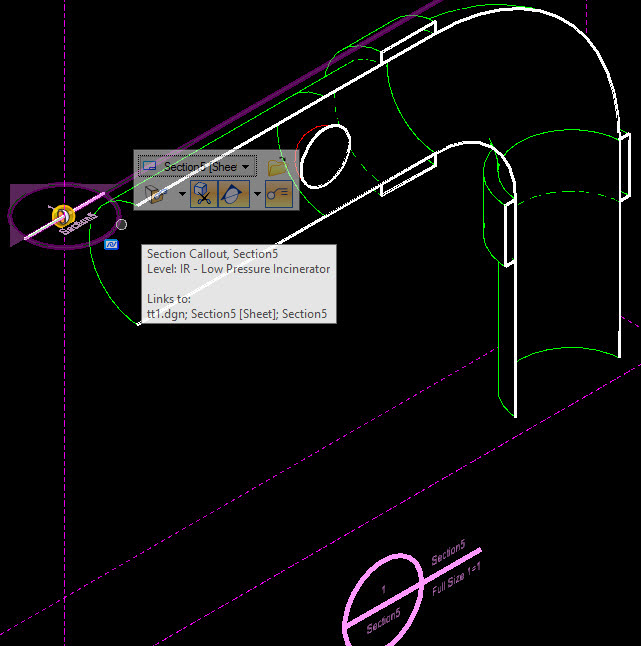

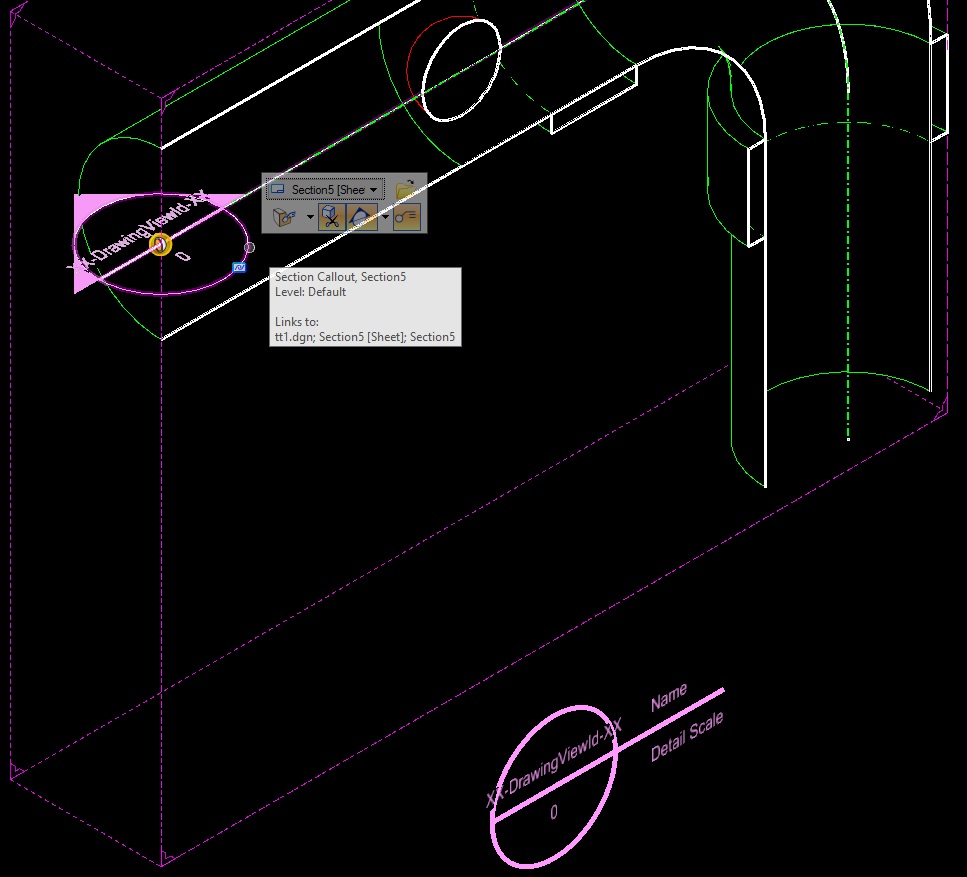

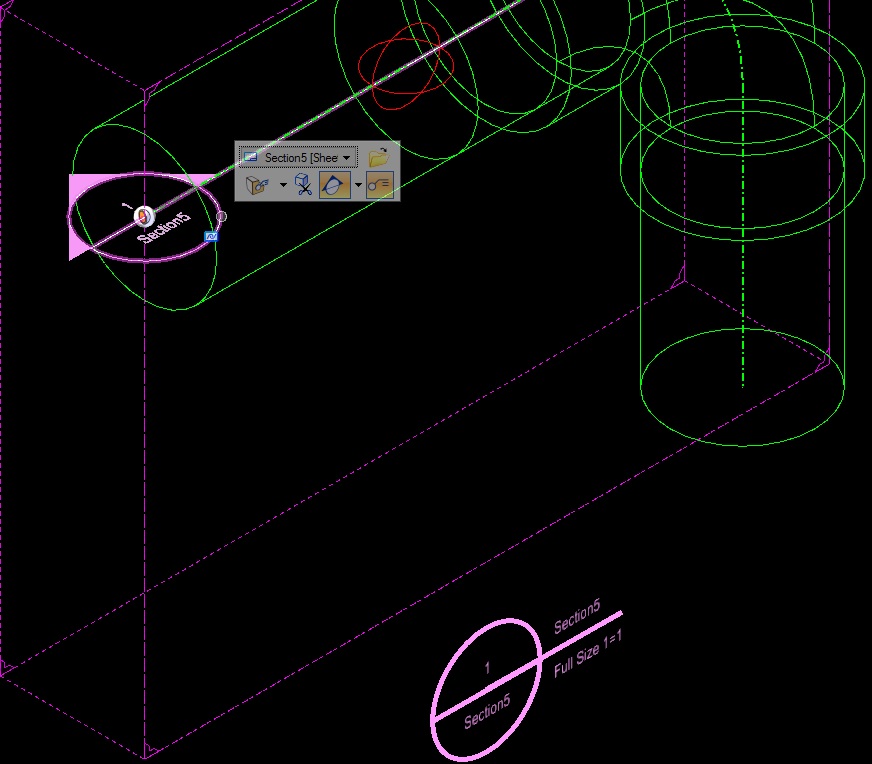

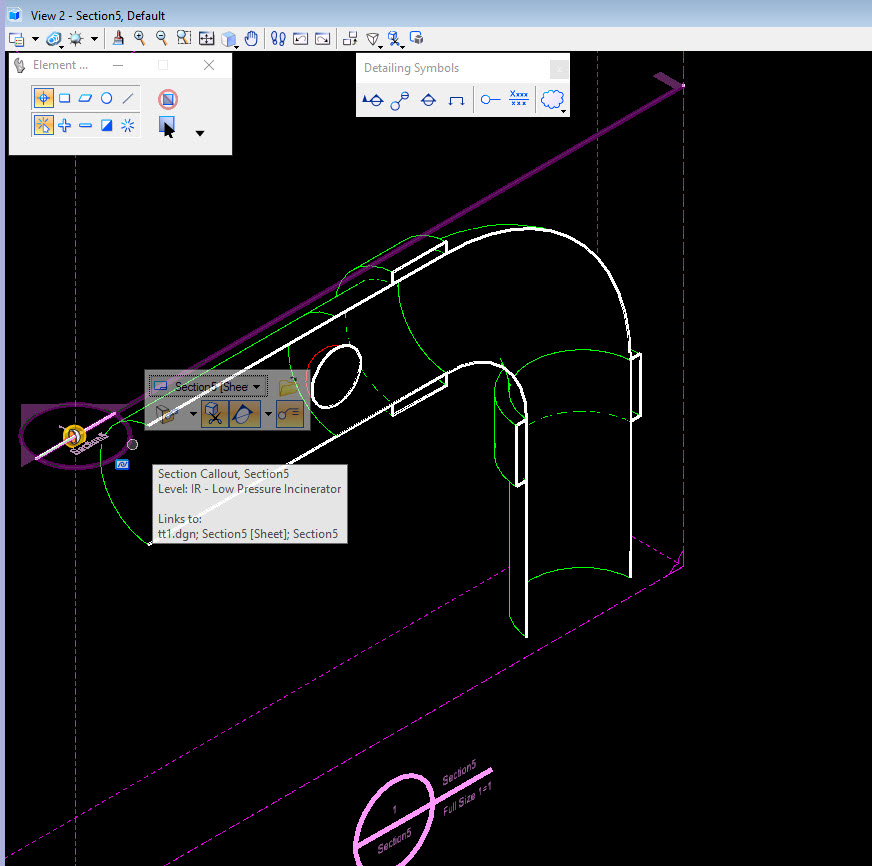

- Open your Master Model in Isometrics view and verify the results.
