Background

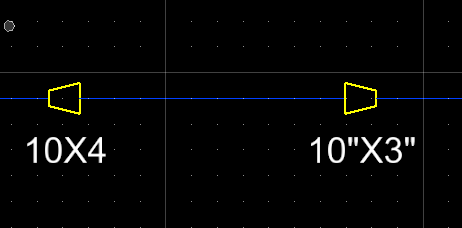

User wants to set annotation of reducer; first annotation always should be lager diameter of a pipe and second annotation should be smaller diameter independent of reducer direction.
Steps to Accomplish:
- Launch Bentley Class Editor.

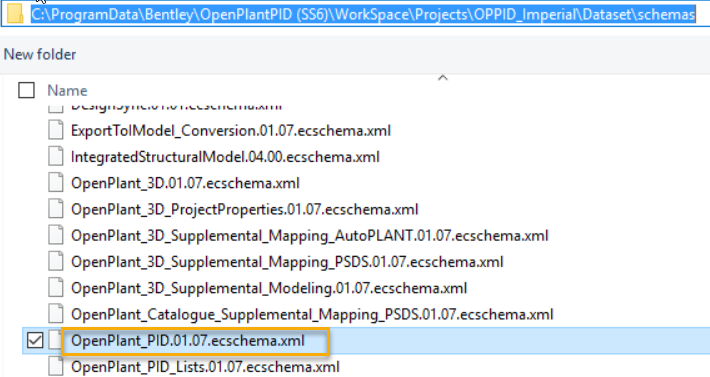

- Open OpenPlant_PID.01.07 schema.

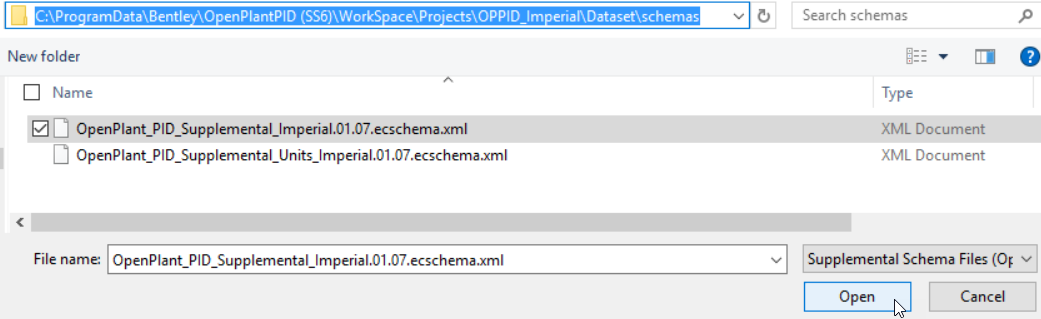

- Supplement with OpenPlant_PID_Supplemental_Imperial.01.07 schema.

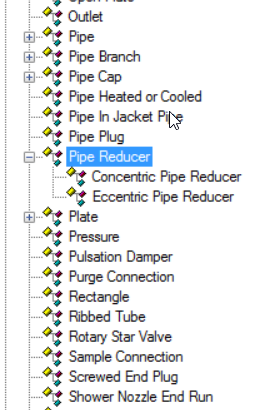

- Search for ‘Pipe Reducer’ Class.

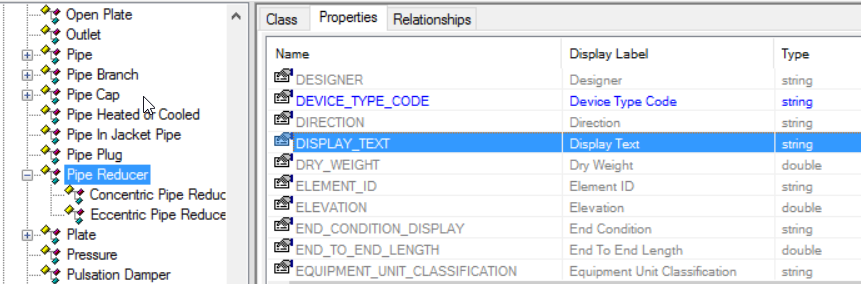

- Switch to Properties tab and click on DISPLAY_TEXT custom attribute.
- Click on Override tab (by default it is grayed out).

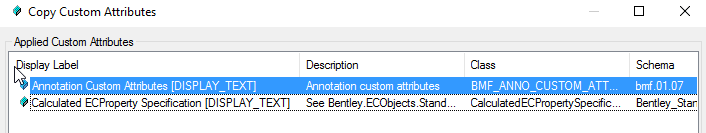

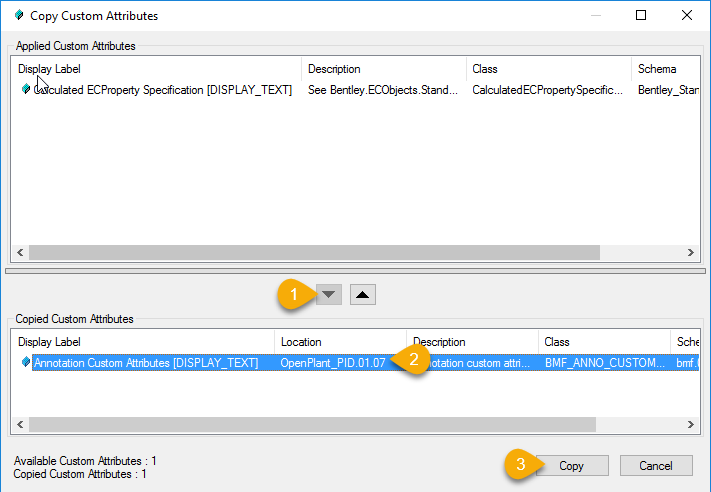

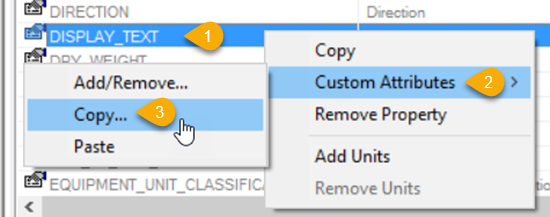

- Right click on DISPLAY_TEXT > Custom Attribute > Copy.
- Select Annotation Custom Attributes.

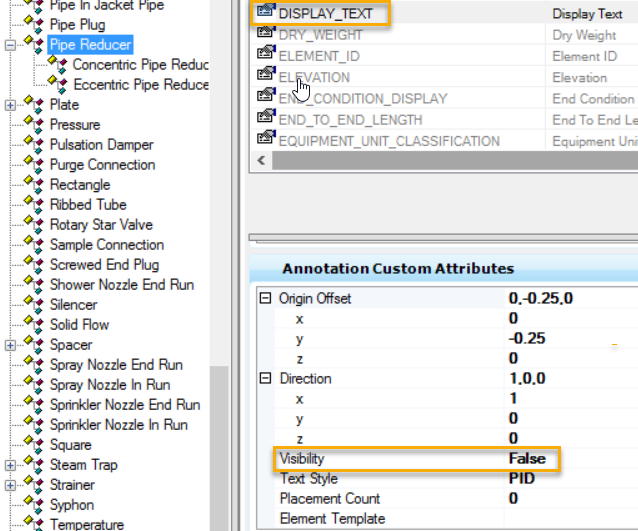

- In Annotation Custom Attribute Visibility set to False.

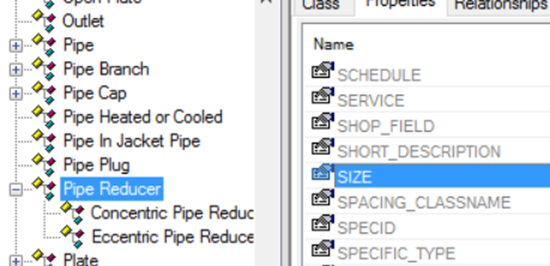

- Navigate to SIZE property.

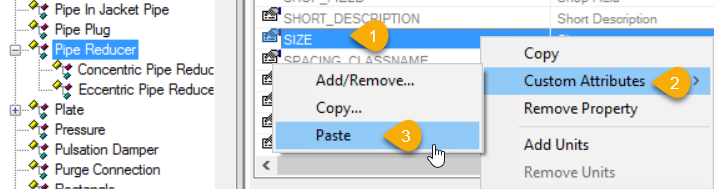

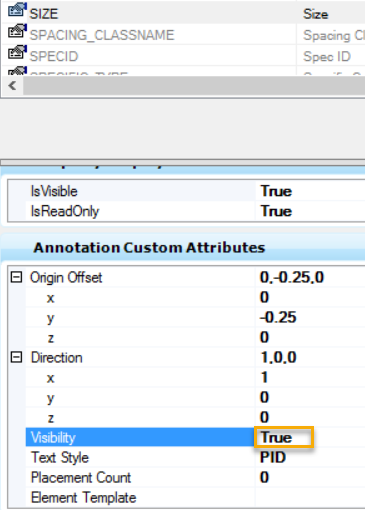

- Right click on SIZE > Custom attribute > Paste.
- Save all settings.
- Open OpenPlant PID and Verify result.
