To Change Annotation Text Color in OpenPlant PID

Background

User can change any annotation color in OpenPlant PID by defining the text style and Element Template for specific annotation. In below mentioned case we will discuss Off Page Connector’s Notes Annotation color changes.

Steps to Accomplish

1. Launch OpenPlant PID say in OPPID_Imperial




2. Place an Off Page Connector in drawing and connect to a pipeline

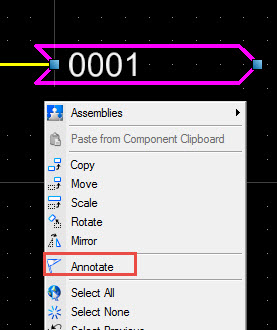

3. Right Mouse click on Page Connector and select Annotate

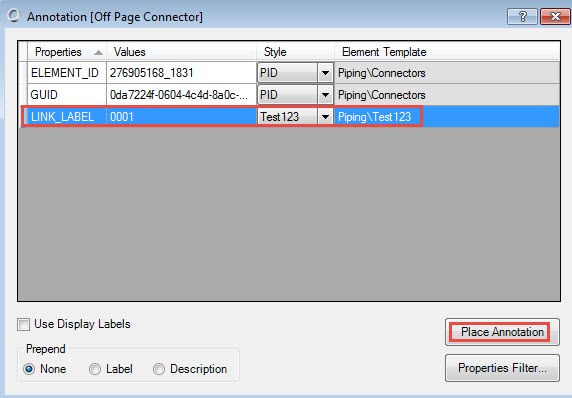

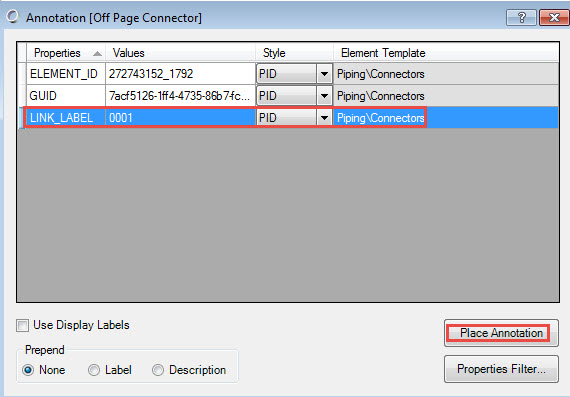

4. Select any annotation say LINK_LABEL and Place Annotation




5. Annotation will be placed but in grey color

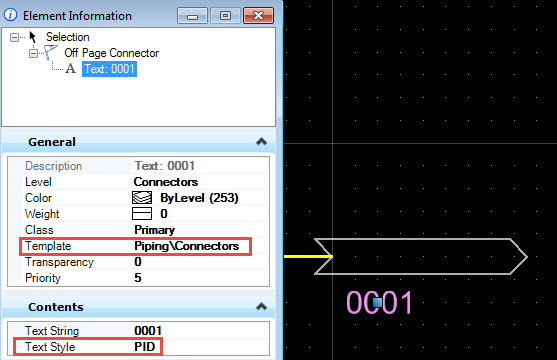

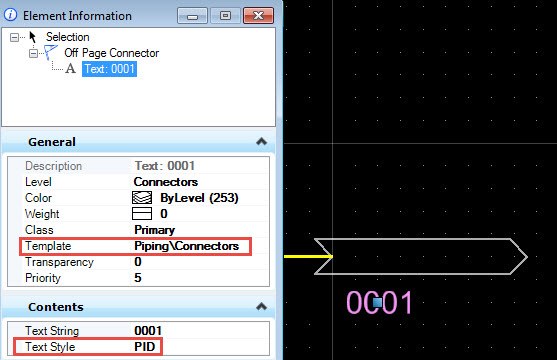

6. Select the annotation and open Element Info and observe the Template and Text Style




7. Go to Utilities -- > Key-in

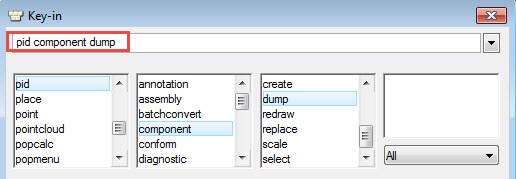

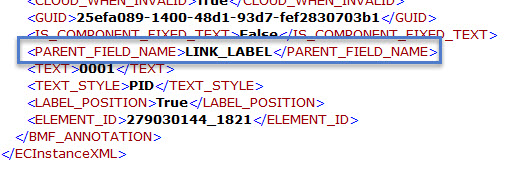

8. Select currently placed Annotation and Run “pid component dump” key in

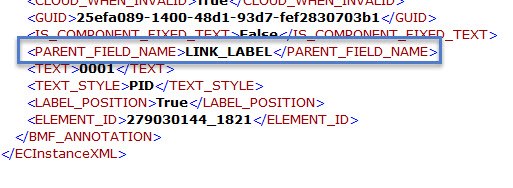

9. Observe the Parent Field Name for the annotation

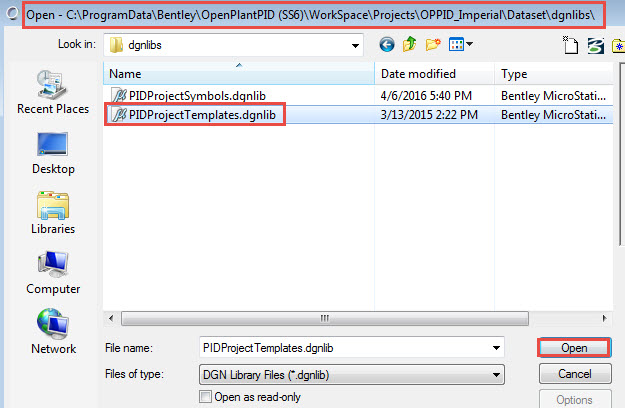

10. Open PIDProjectTemplates.dgnlib file from Dataset -- > dgnlibs project folder




11. Go to Element -- > Text Styles




12. Text styles are defined here just like PID

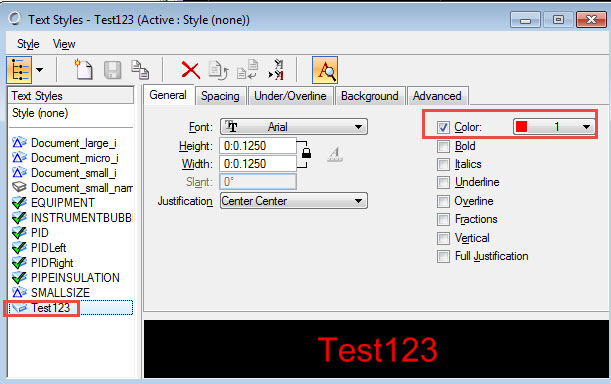

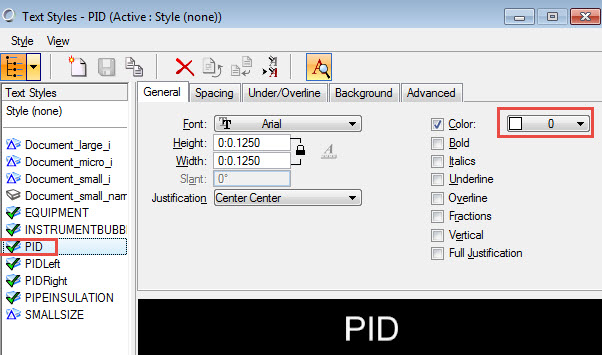

13. Now either create new Style or Copy this PID style to define new Text Style with required color

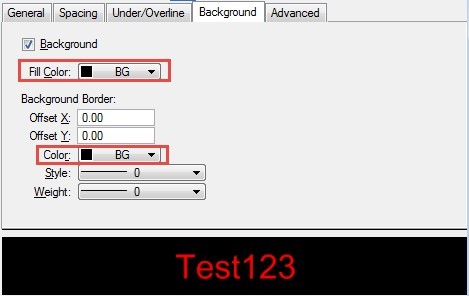

14. Set the color






15. Right mouse click on Text Style and select “Activate”




16. Save the Text Style

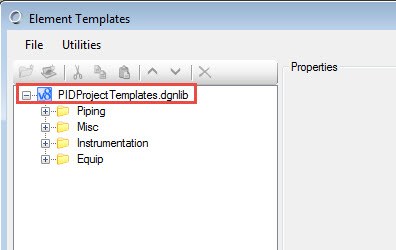

17. Go to Element menu and select Element Templates

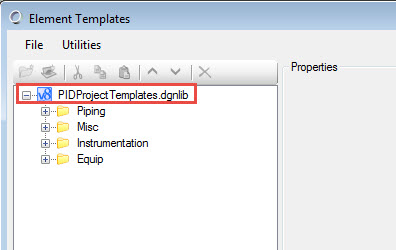

18. Navigate to piping folder




19. Right mouse click and select “New Template”

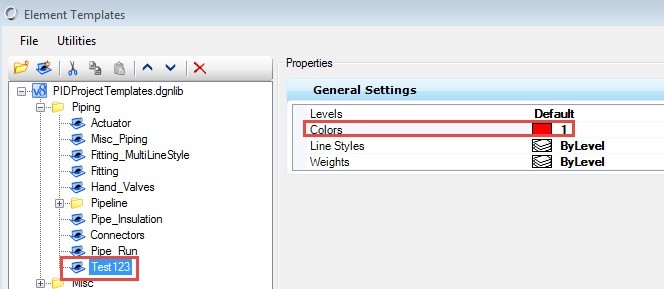

20. Create new Element Template and define color




21. Close Element Templates dialog


22. Select File Save and close OpenPlant PID




23. Launch Bentley Class Editor

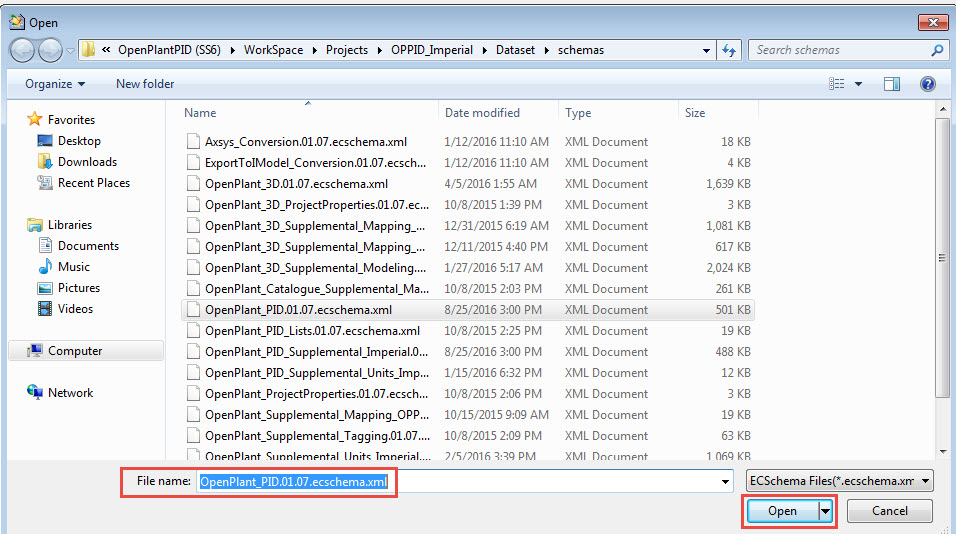

24. Open “OpenPlant_PID.01.07.ecschema.xml” schema

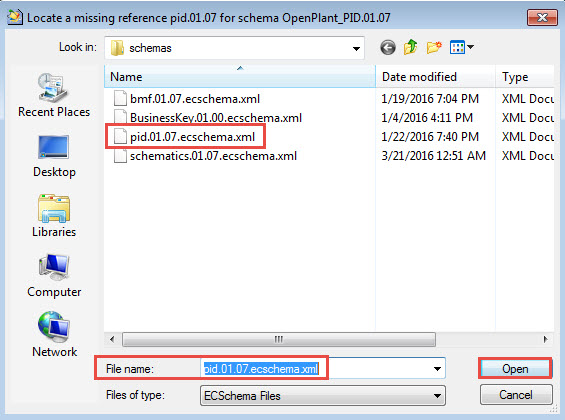

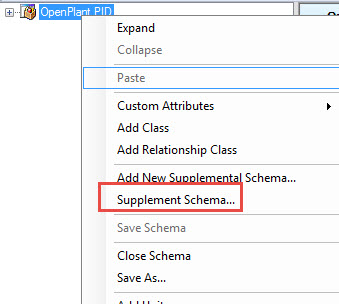

25. Once schema opened, right click to “Supplement Schema”

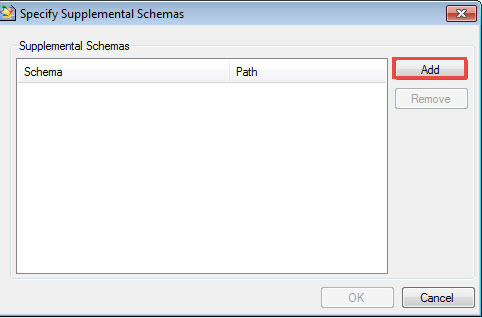

26. Press “Add”  in “Specify Supplement Schemas” dialog

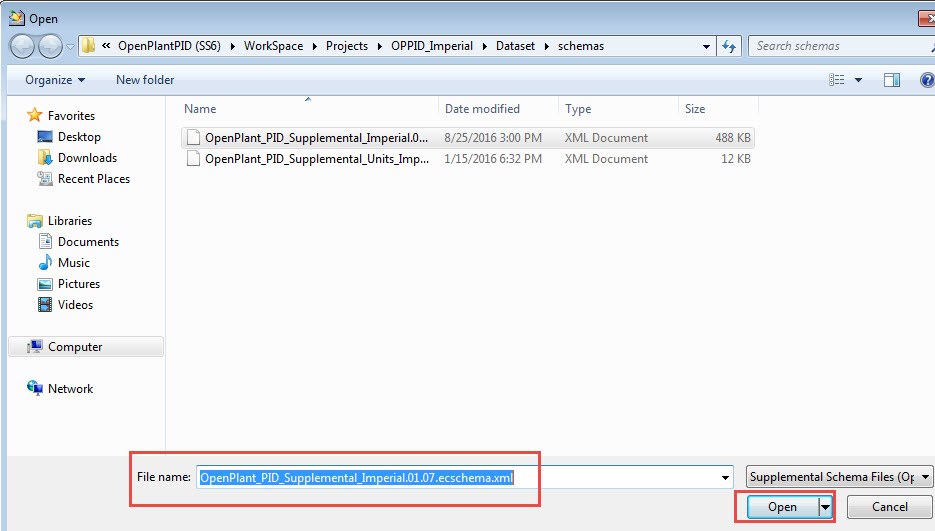

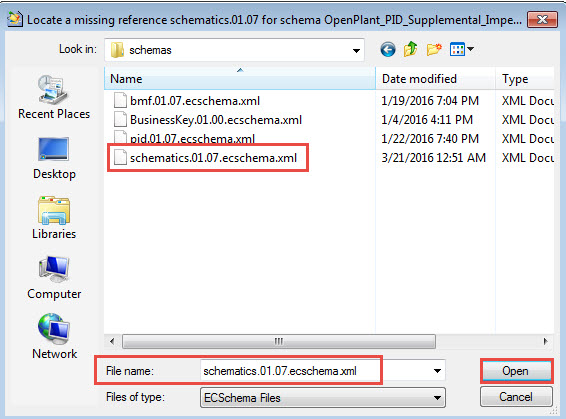

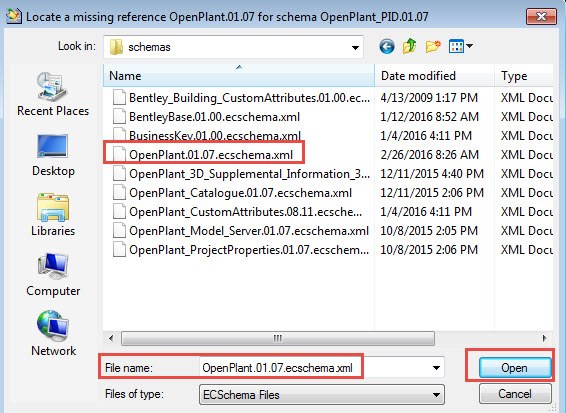

27. Add “OpenPlant_PID_Supplemental_Imperial.01.07.ecschema.xml”

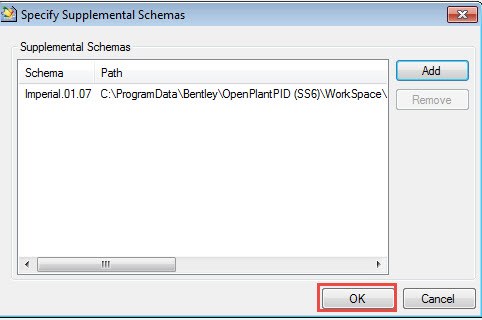

28. Press “OK” to “Specify Supplement Schemas” dialog

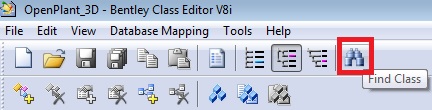

29. Once schema got supplemented, press “Find Class”

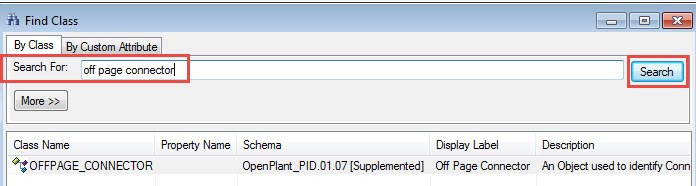

30. Search for “Off Page Connector”

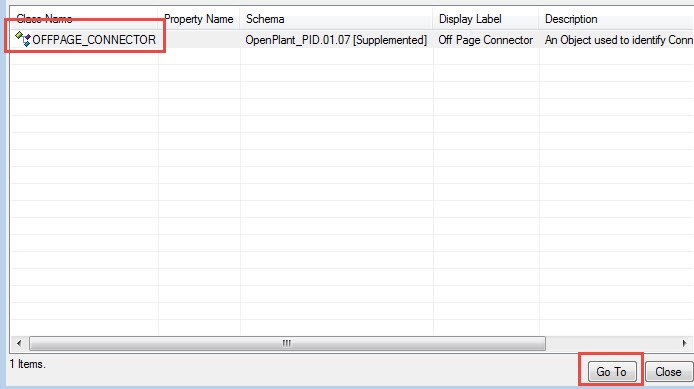

31. Select OFFPAGE_CONNECTOR and select “Go To”




32. Go to “Properties” tab and look for property we have noticed in step 9 above i.e. Parent Class Name (LINKED_MODEL)




33. Select “Override” to change the value

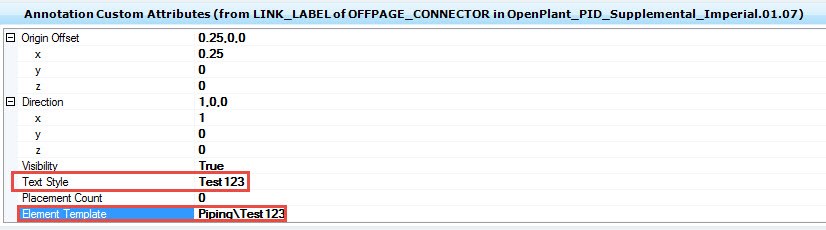

34. Change Text Style and Element Template to whatever defined above




35. Save changes and close class editor




36. Launch OpenPlant PID using same units in which changes are made i.e. OPPID_Imperial and repeat Steps 3 to 5
