In OpenPlant Modeler, user wants to define default weld type name.
Background
Below wiki article explains how to define default weld type for welds.
Steps to Accomplish
- Launch Bentley Class Editor,Open OpenPlant_3D.01.07. ecschema.

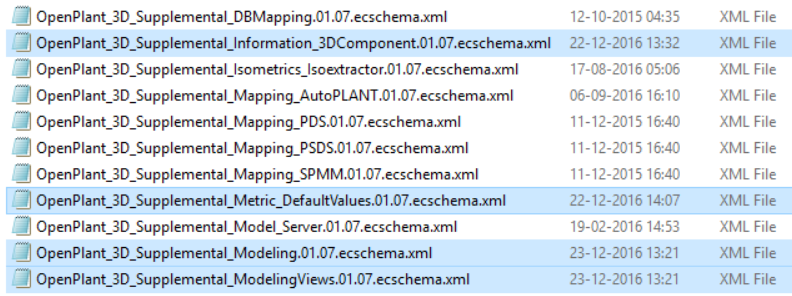

- Supplement with below highlighted schema as shown.
Path: C:\ProgramData\Bentley\OpenPlantModelerV8i\WorkSpace\Projects\OPModeler_Metric\DataSet\Schemas
For More information on supplementing schemas click here>>>> - Navigate to Weld Types class, switch to Properties tab.

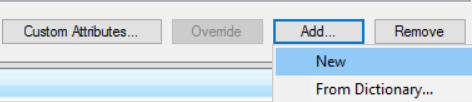

- Click on Add... to add a new type of weld type property.

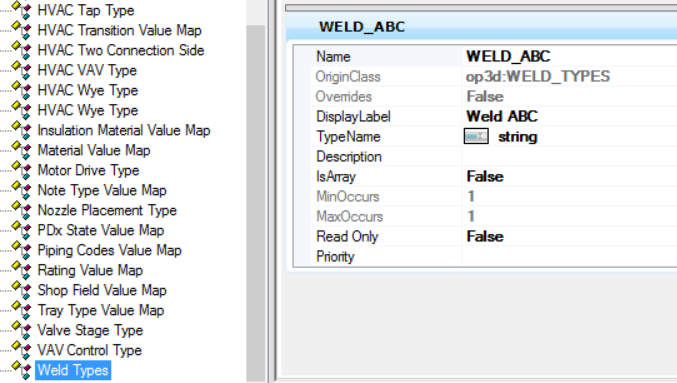

- For new weld type enter the details as shown below.
- Save all the changes.
- Navigate to below mentioned root, open OPModeler_Metric.pcf to edit.

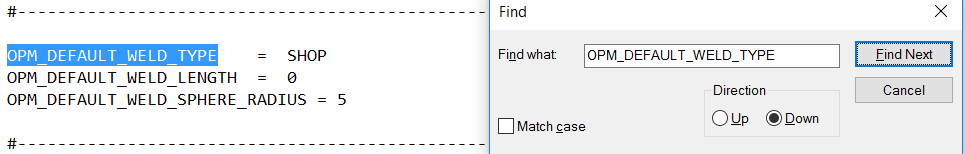

Default Path: C:\ProgramData\Bentley\OpenPlantModeler V8i\WorkSpace\Projects - Search for variable OPM_DEFAULT_WELD_TYPE as shown below.

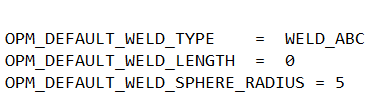

- Change weld type as WELD_ABC as shown below.

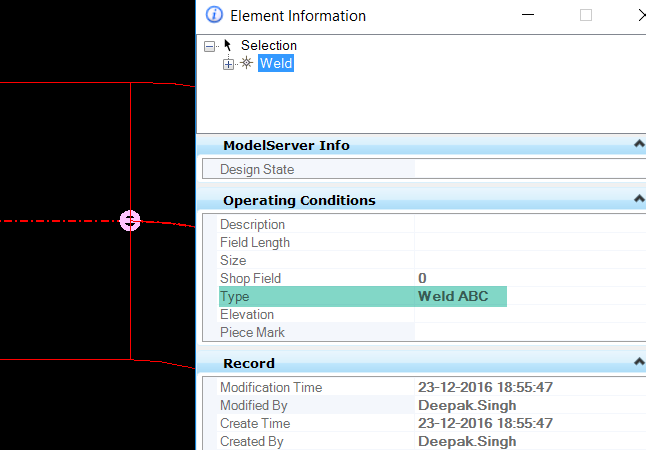

- Save all the settings & verify the result as shown below.
