Original Author:	Faisal Khan, Software Quality Assurance, BEPS

To Change Settings as per VAD file

Background

If User wants to use different settings for a VAD file, then user needs to follow below mentioned steps.

Steps to Accomplish

Launch OpenPlant Orthographics Manager CONNECT Edition and select a project
Go to Project tab

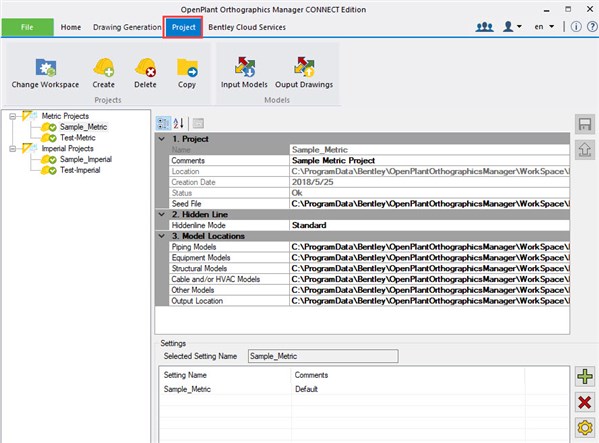

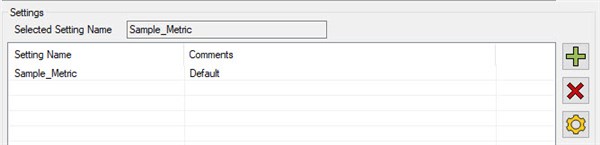

Settings details will be shown on “Project” page
Press “+” button to Add a new setting

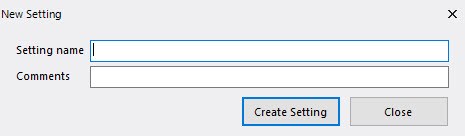

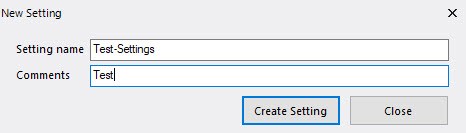

New Setting dialog will pop up
Give Setting name and Comment if any , and press “Create Setting”

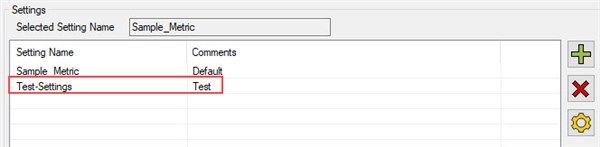

New Settings will be Created and list down
Select the newly created Settings and press Configure Settings button

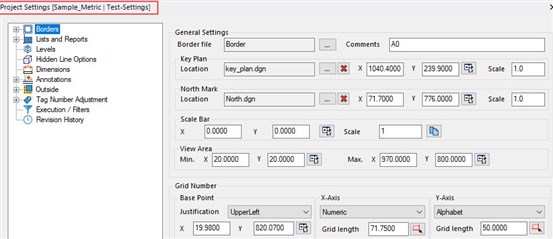

Settings dialog will pop up mentioning the Project name and Settings Name on Top left

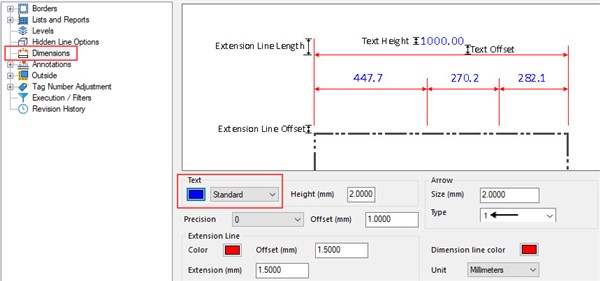

Go to any Settings and make some changes say “Dimensions” and change Text color to “Blue” from Yellow
Press Save button and close Settings Dialog

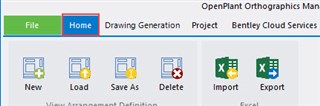

Now go to “Home” tab

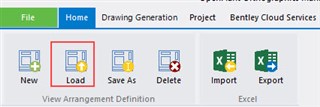

Press “Load” button

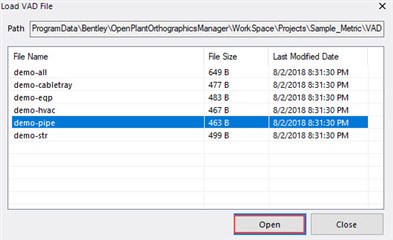

Load VAD File dialog will pop up
Select a VAD file for which you want to change settings and press “Open” button
Selected VAD will be loaded

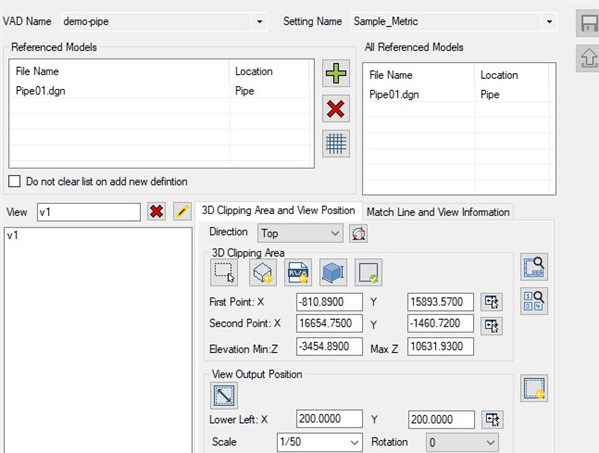

Go to Setting Name drop and select the required Setting for a specific VAD file
Press “Save” button

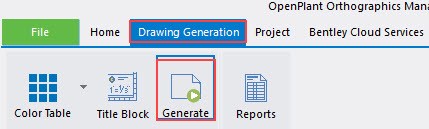

Go to Drawing Generation -- > Generate
Setting name will be updated as per selected setting in Input VAD list

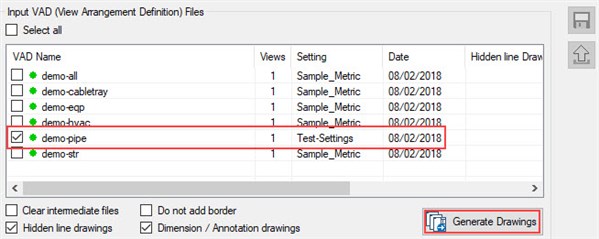

Select the VAD file and press “Generate Drawings”
Output will be generated as per new settings
