Background

There is a requirement from user that when placing a nozzle on equipment, nozzle tag should be annotated which doesn't have equipment tag in it. For example, if nozzle tag is calculated as V-001-N1, only N1 should be annotated after placement.

Steps to Accomplish

1. Launch class editor and load OpenPlant_PID schema.


2. Supplement it with OpenPlant_PID_Supplemental_Imperial schema.

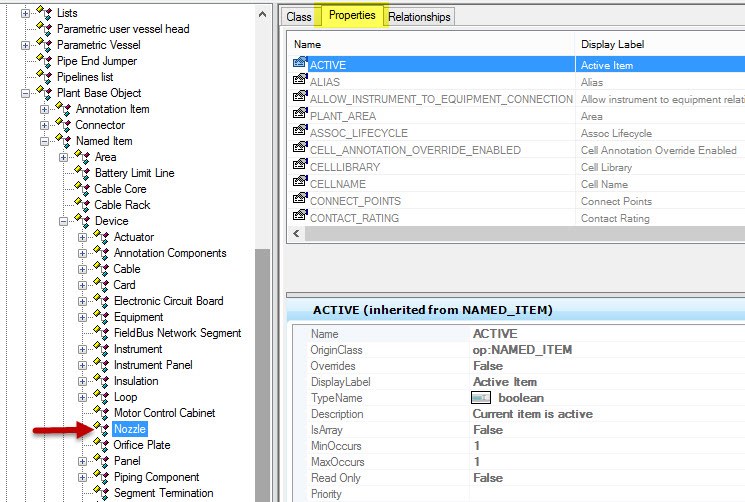

3. Go to NOZZLE class and switch to Properties tab.

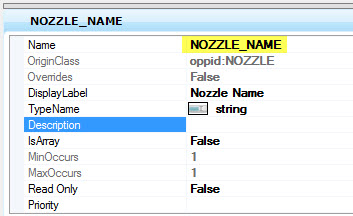

4. Add new property and name it 'NOZZLE_NAME'.

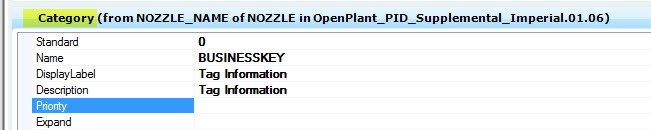

5. Add Category custom attribute on it and key-in the values as shown below:

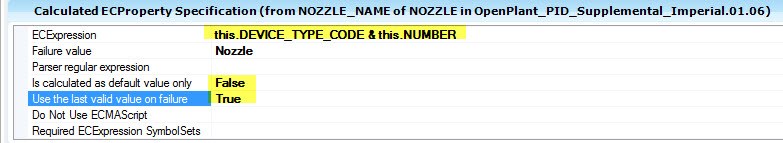

6. Add another attribute 'Calculated ECProperty Specification' and add below expression.

   this.DEVICE_TYPE_CODE & this.NUMBER

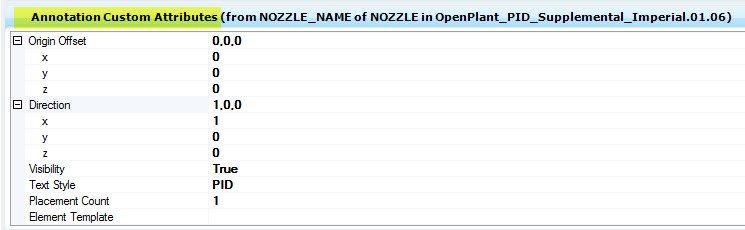

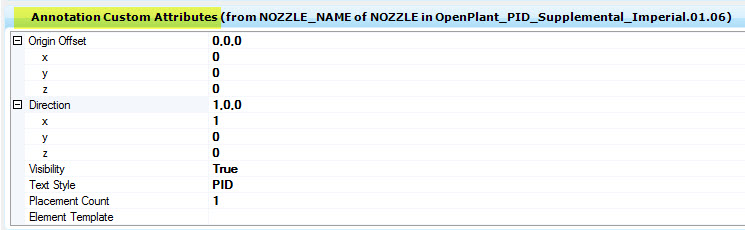

7. Similarly add 'Annotation Custom Attribute' on it and set below values.




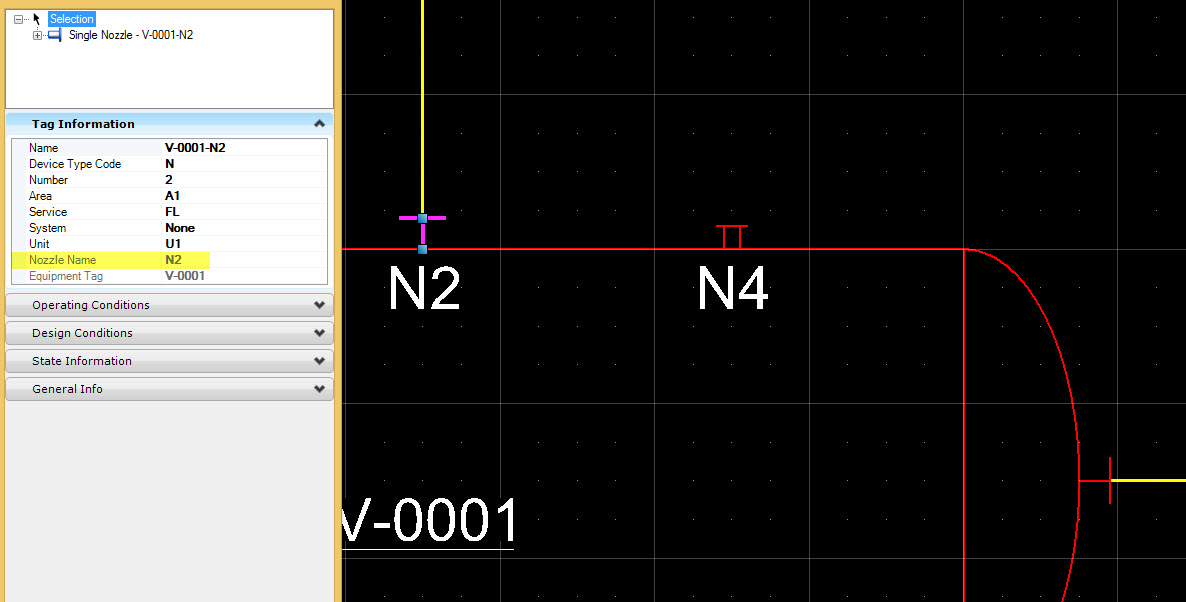

8. Save the changes in schema and verify the result.



See Video:

communities.bentley.com/.../273325
