DataGroup Annotation - Information Positioning Annotation


 Product(s):AECOsim Building Designer
 Version(s):V8i
 Environment:N/A
 Area:N/A
 Subarea:N/A

Overview

You can modify DataGroup annotation to display in the order you wish.

Method

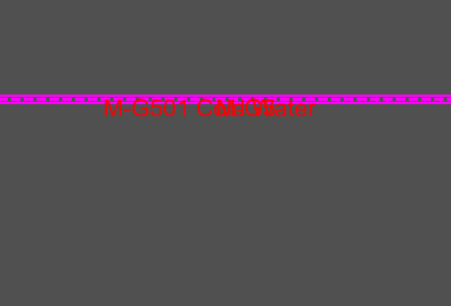

The display order can be achieved by using drawing rules and information positioning.

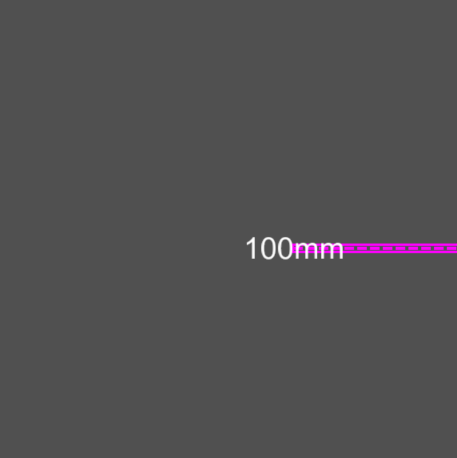

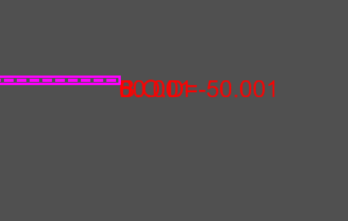

First position the size of the pipe using the 0 for the position



Pipe type is positioned using the 50 (for 50%) value

Elevation is positioned using the 100 value.

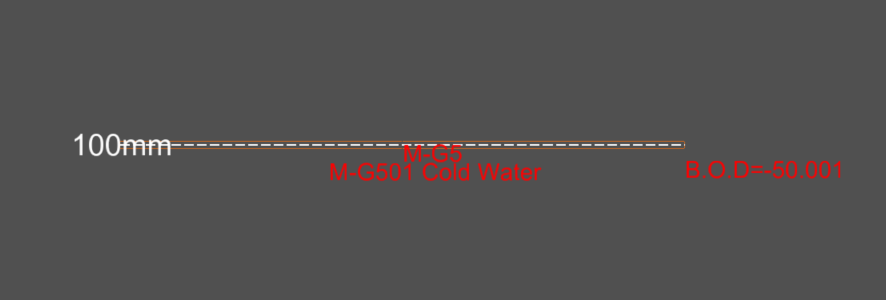

Information can be placed above the element, below, or stacked.
