To label Eccentric reducer offset values in Isometrics drawing.

Background

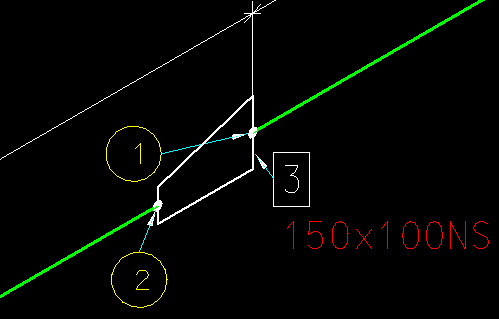

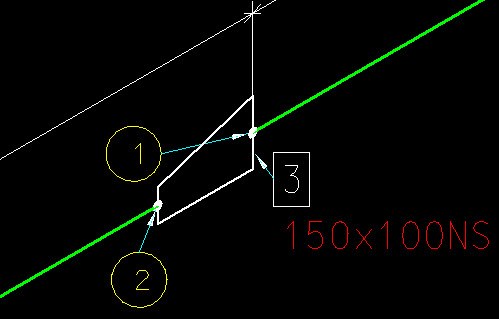

In OpenPlant Isometrics Manager, for eccentric reducer there is no offset details by default. See image below after producing isometrics with default setup.

However, as per requirement user may add labels to display it in isometric drawing.

Steps to Accomplish

1. Open "Isometric configuration" through Project Administrator.

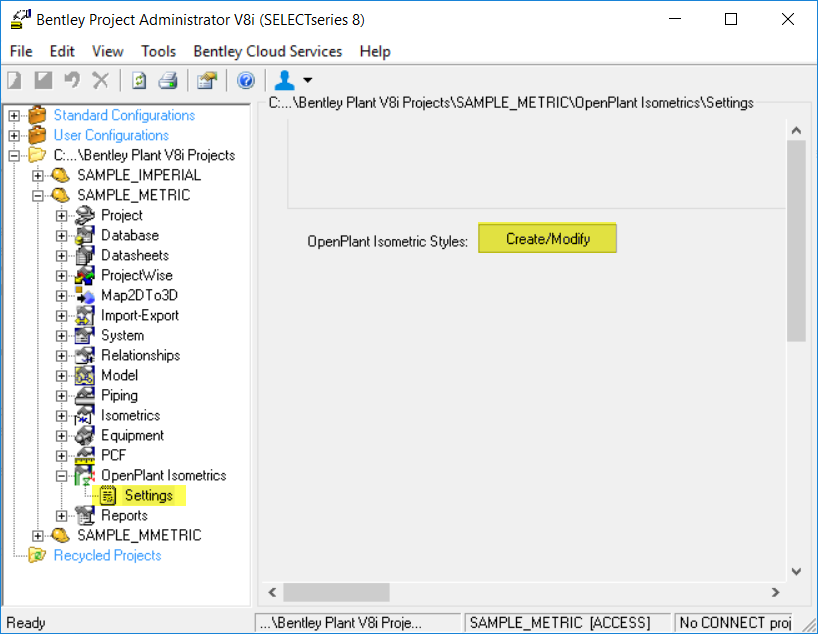

2. Select Settings option and click on "Create/Modify" option.


3. In Isometric Configuration window select the desired Style.

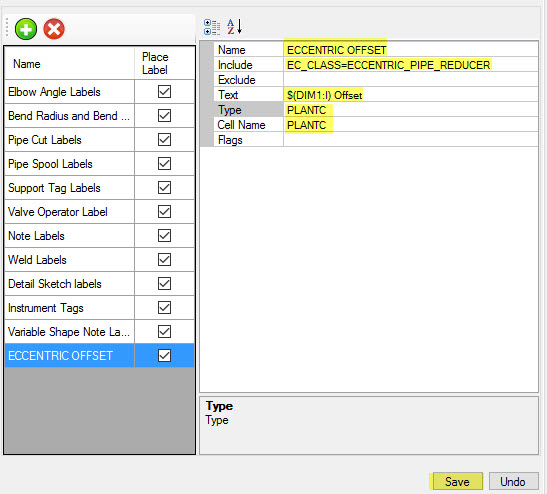

4. Add new Label, and enter value as shown in below image.

   For Imperial Unit:
   Name ECCENTRIC OFFSET
   Include EC_CLASS=ECCENTRIC_PIPE_REDUCER
   Text $(DIM1:I) Offset
   Type PLANTC
   Cell Name PLANTC

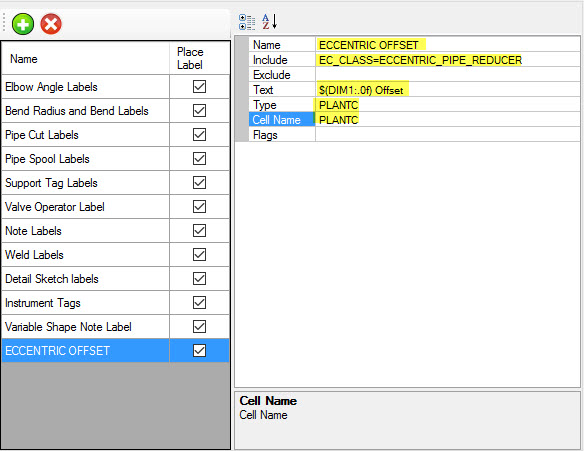

   For Metric Unit:
   Name ECCENTRIC OFFSET
   Include EC_CLASS=ECCENTRIC_PIPE_REDUCER
   Text $(DIM1:.0f) Offset
   Type PLANTC
   Cell Name PLANTC



5. Save Settings.
6. Launch OpenPlant Isometrics Manager and verify results.

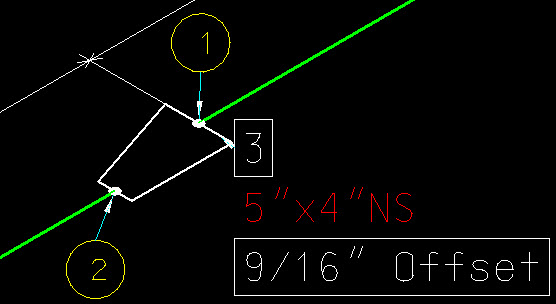

   For Imperial Unit

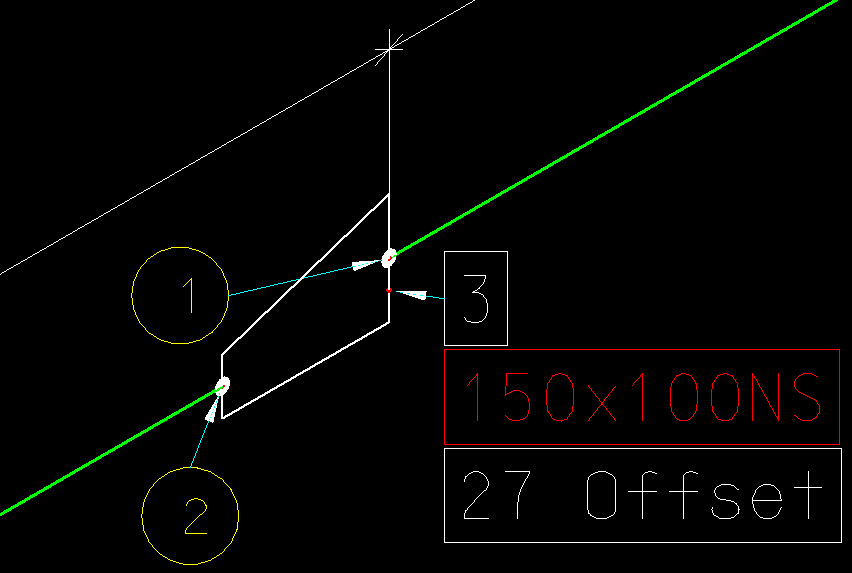

   For Metric Unit
