Line Weight Mapping Settings


 Product(s):AECOsim Building Designer
 Version(s):08.11.09.866
 Environment:N\A
 Area:Print/Plot
 Subarea:N\A

Problem

How do I control the line thickness that is assigned to a particular line weight while plotting? For example,  I select '6' as a cut thickness and I want it to be .5mm in line.

Solution

These are defined in the print/plot drivers.

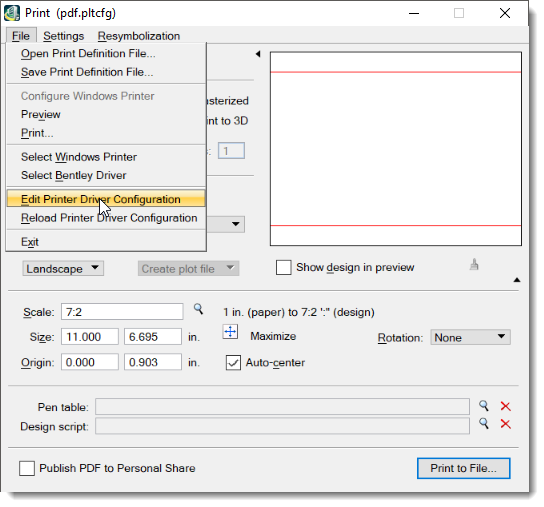

In the Print dialog please go to the File menu > Edit Printer Driver Configuration.

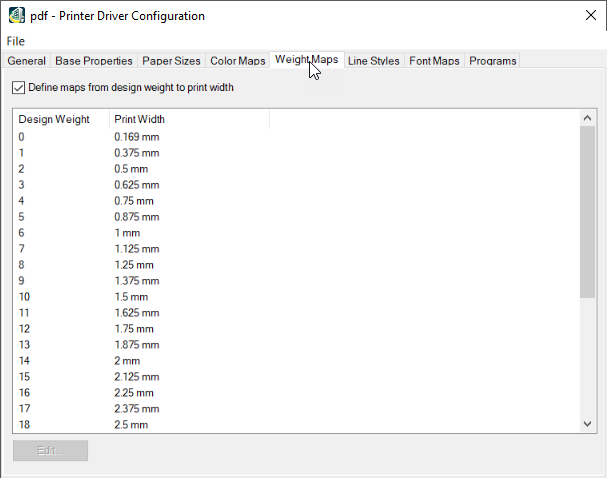

Look at the Weight Maps tab.

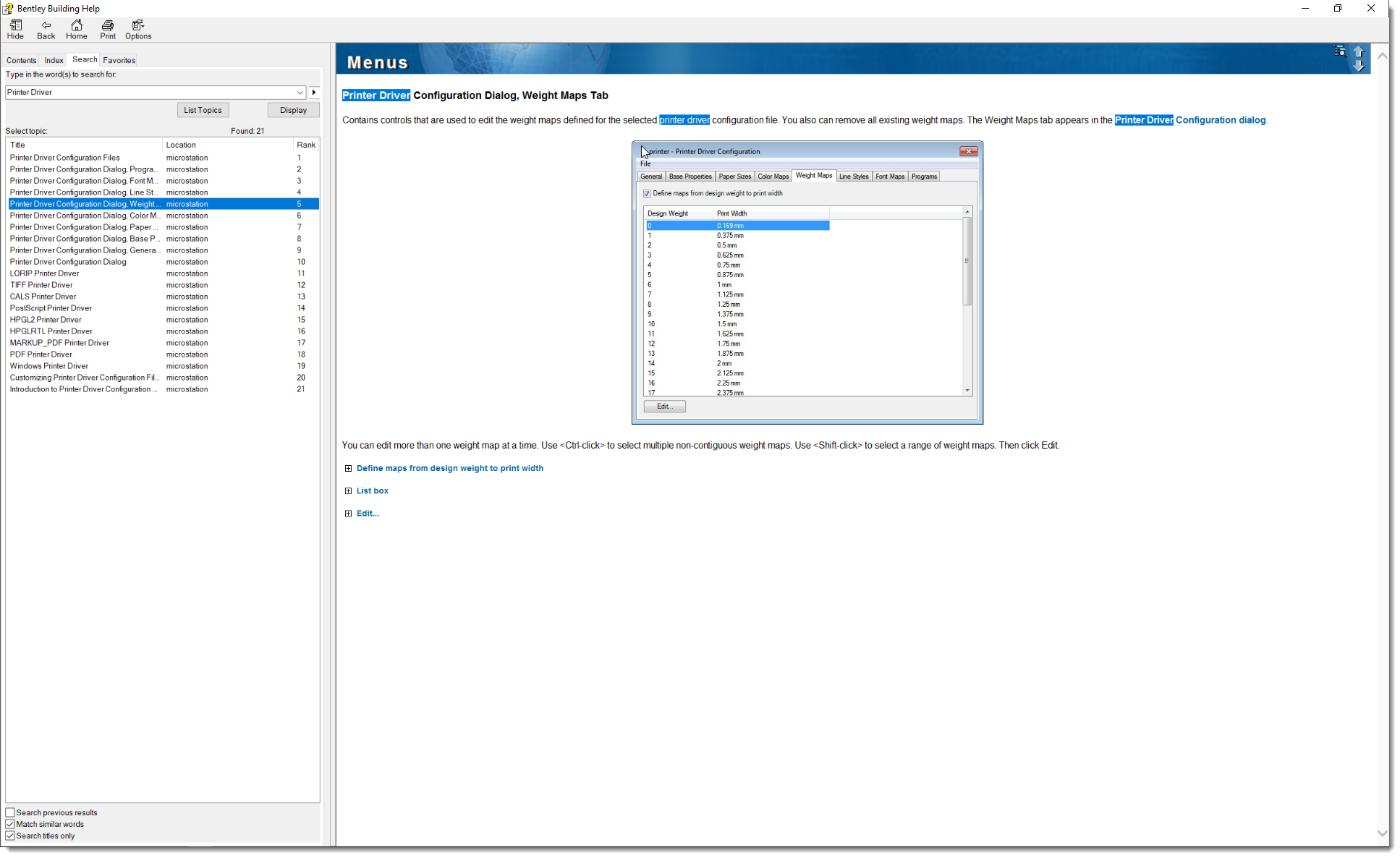

There is information on this in the help documentation under the heading "Printer Driver Configuration Dialog, Weight Maps Tab".

In a system where the print drivers are shared, edits will affect other users and may need administrator access.
