How to Remove Additional Operator and User Label from Relief Valve


Applies To

 Product(s):OpenPlant Isometrics Manager
 Version(s):08.11.XX.XXX
 Environment: Windows 7 64 bit & Others
 Area: Settings and Attributes
 Subarea: Modify isometric cell
 Original Author:Abhijit Bute, Bentley Product Advantage Group

Background

Relief Valves have inlet and outlet with Relief Operator following the direction of the inlet, mostly pointed to the Z-direction. OpenPlant Isometrics Manager has a Relief Valve following the direction of the inlet, mostly pointed to the z-direction.

OpenPlant Isometrics Manager has Relief valve symbol including the Relief Operator and is always correctly oriented based upon inlet and outlet port information. Representation of additional operator symbol and operator directional label Is not required in generated isometric.

Following illustrative steps helps to remove extra operator and directional user labels.

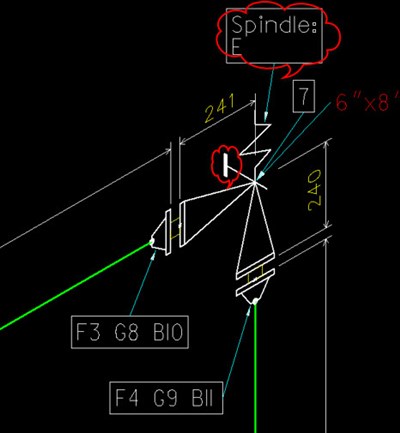

Current Result:

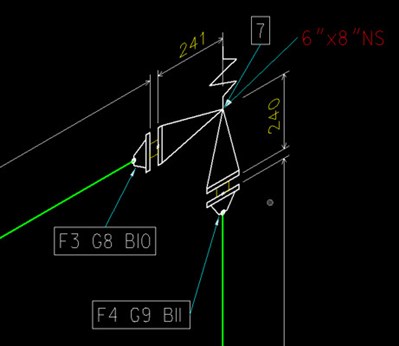

Expected Result

Steps to Accomplish

  1. Open Bentley Class Editor from Desktop.

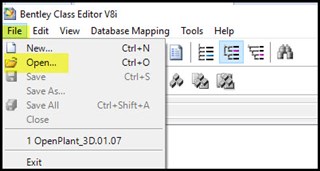

  2. Go to File> Open



  3. Navigate to project path and open OpenPlant_3D.01.07.ecschema.xml.

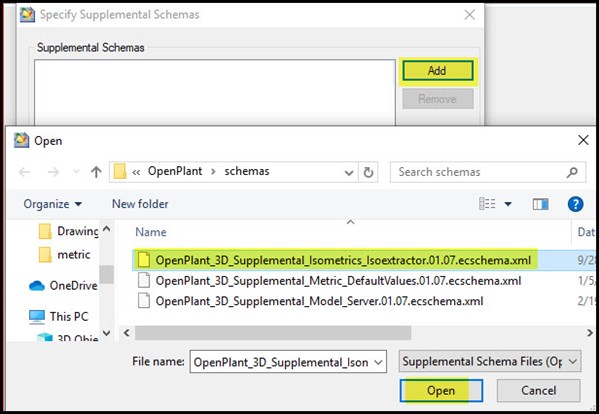

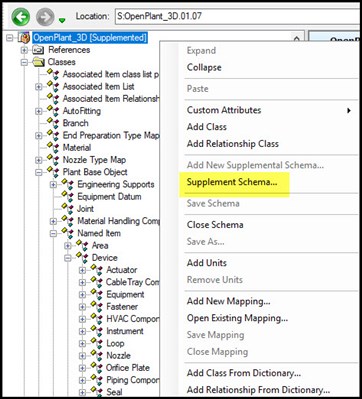

  4. Supplement with OpenPlant_3D_Supplemental_Isometrics_Isoextractor.01.07.ecschema.xml.





  5. Search for Relief Valve class.

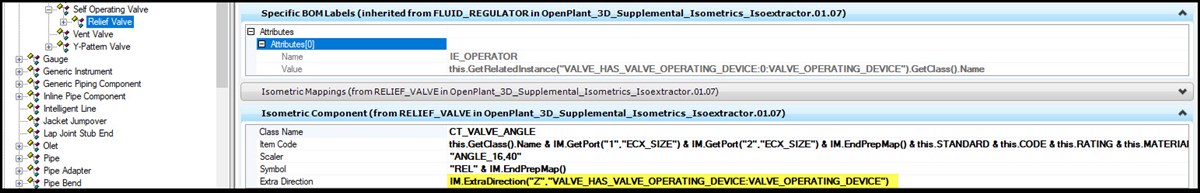

  6. Remove Extra direction expression from Isometric Component.

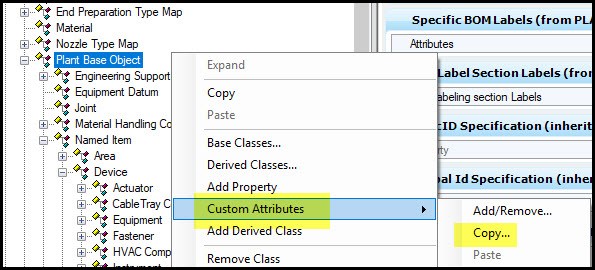

  7. Go to Plant Base Object class. Right click Custom Attributes > Copy

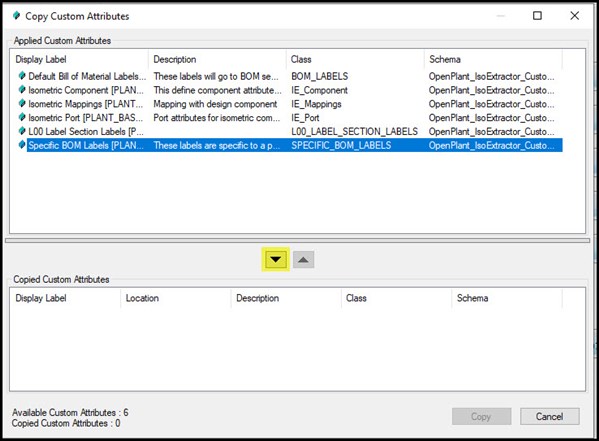

  8. Select Specific BOM Labels. Click on down arrow and click Copy tab.

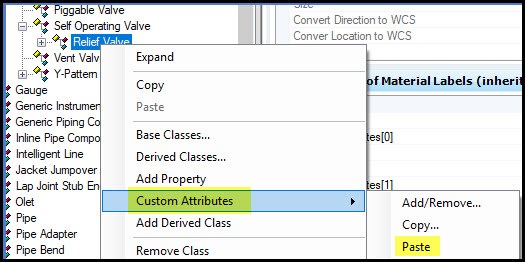

  9. Right click on Relief Valve class. Custom Attributes> Paste.

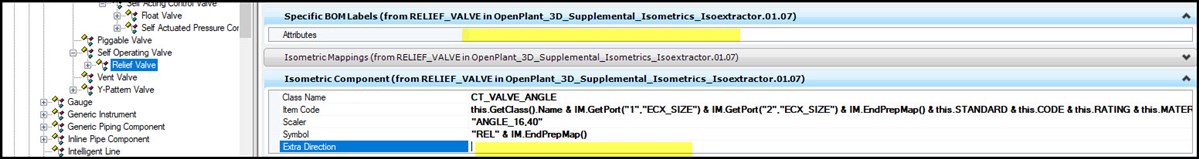

  10. After modification schema will look like as per below image.



  11. Save the schema and generate isometric to review the result.
