In OpenPlant Modeler, user wants to define drop down option for Pipeline properties using Value Map option.
Background
Value Map Class present in schema gives various option to user to pre-define meta data which can be used as any property existing values and to be pulled out from its field as a drop down option. Below wiki describes the steps to manage newly created properties and a new Value map class definition in schema.
Steps to Accomplish
- Launch Bentley Class Editor,Open OpenPlant_3D.01.07. ecschema.

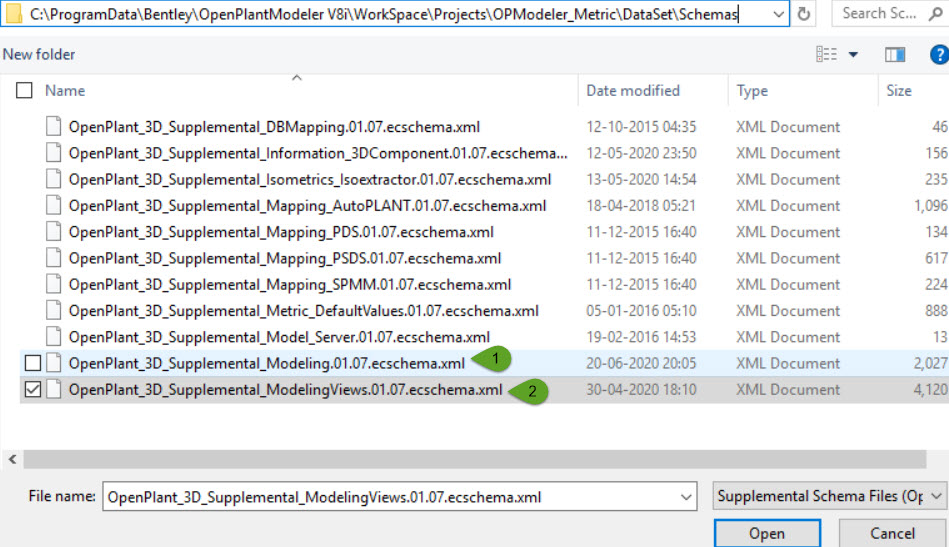

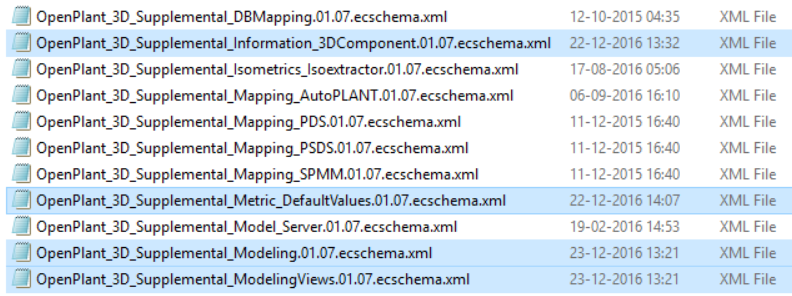

- Supplement with below highlighted schema as shown.
Path: C:\ProgramData\Bentley\OpenPlantModelerV8i\WorkSpace\Projects\OPModeler_Metric\DataSet\Schemas
For More information on supplementing schemas click here>>>> - Navigate to value map class, right click on it and select Add derived class.

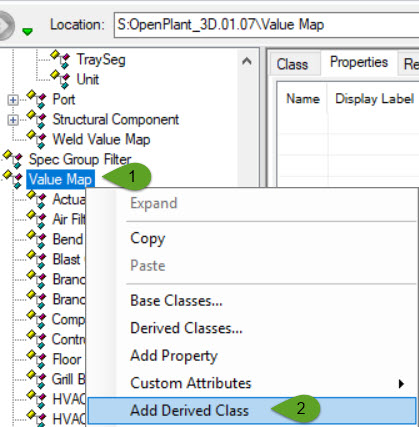

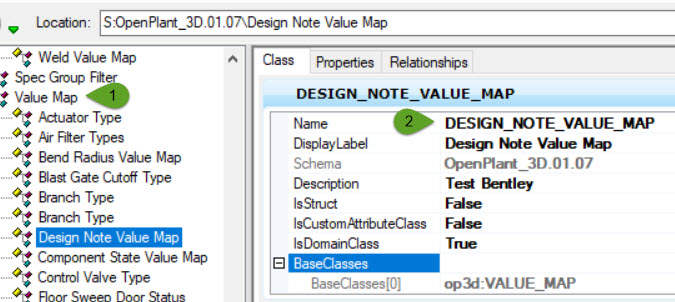

- Create a new class name, say See image below:

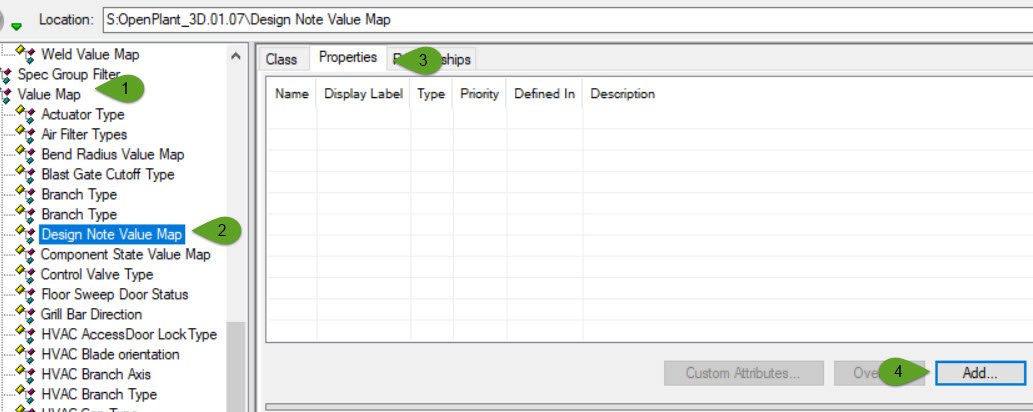

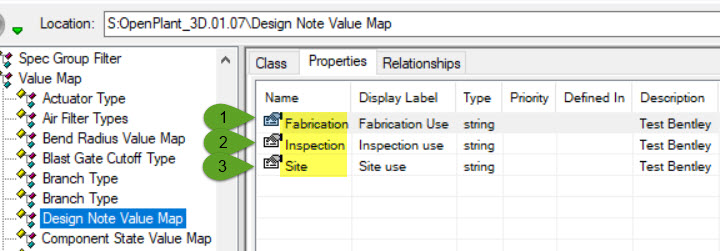

- Switch to Properties tab and add few properties which should be present while assigning to Property attribute in drop down selection. See image below:

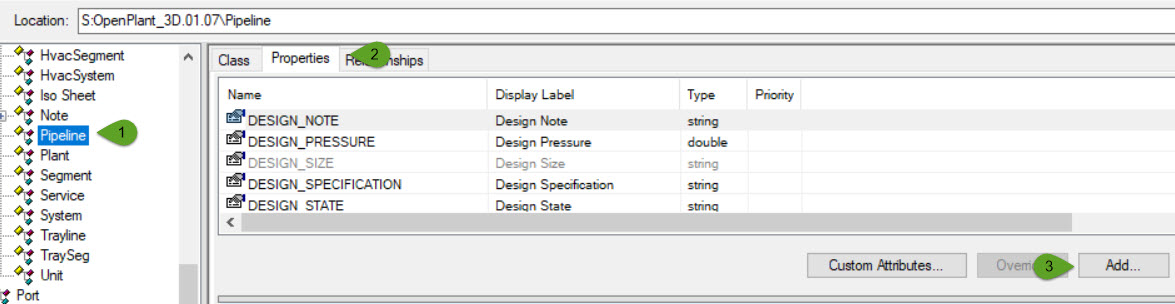

- Navigate to Pipeline class and add property DESIGN_NOTE in it like shown in image below.

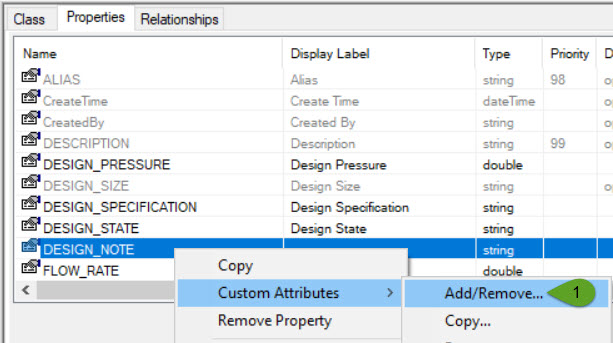

- Right click on DESIGN_NOTE property -> Custom Attributes --> Add/Remove.

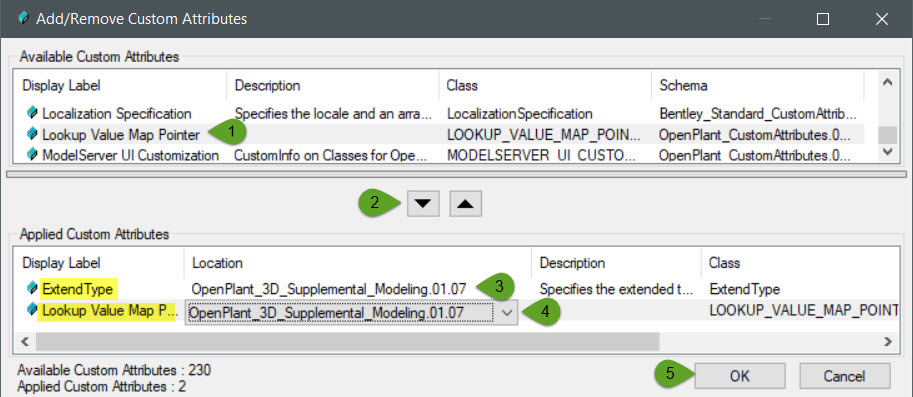

- Select Custom attributes, ExtendType and Lookup Value Map Pointer from dialog box shown below and assign location to schema shown in image.

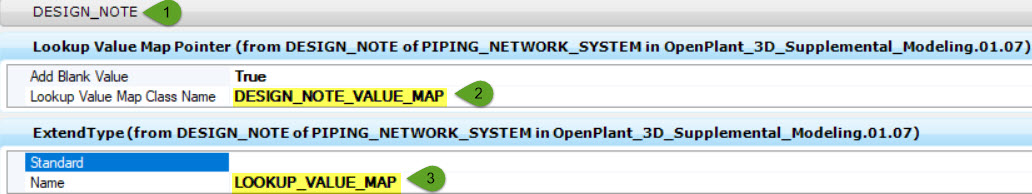

- Enter the value as shown in image below. This will map the new Value map class defined and explained in above steps.
- Save & Close Schema.
- Launch OpenPlant Modeler.

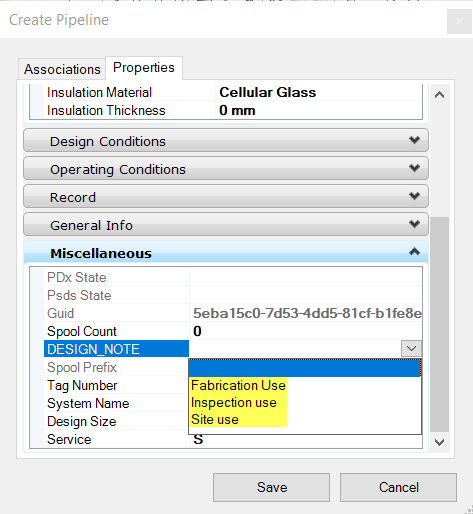

- Select Create Pipeline and verify result. Notice Dropdown for Property DESIGN_NOTE holds the value.
