How to Disable the Terminator on Leader Line in Isometrics via OpenPlant Isometric Manager.



Applies To
Product(s):OpenPlant Isometric Manager
Version(s):

CONNECT Edition 10.08.00.51 (Update 8)

Environment: Windows 8.1/10 (64-bit)
Area: Leader Line
Subarea: Disable Terminator
Original Author:Shubham Sawant, Bentley Product Advantage Group


In OpenPlant Modeler CONNECT Edition, the requirement is to disable the terminator of the leader line in isometric via OPIM CE.

Background

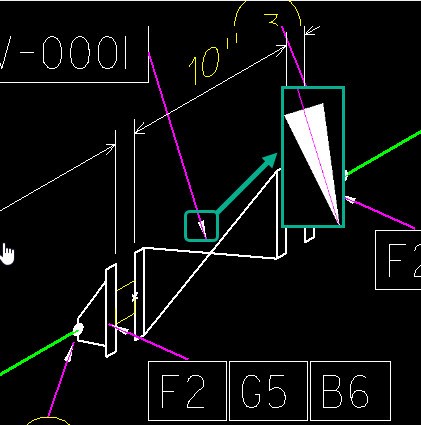

In OpenPlant IM CE, a new tool has been introduced to disable the terminator of the leader line. By default, the terminator for a leader is shown as attached in the snap below



Steps to Accomplish

  1. Launch OpenPlant Modeler CONNECT Edition.

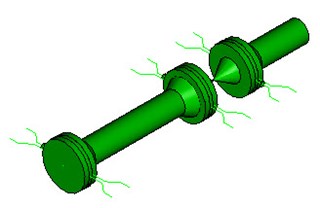

  2. Select the desired workspace & workset from the interface, Place a pipe & flange arrangement with the blind flange at the end as shown

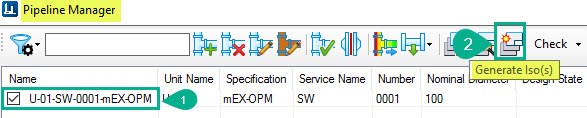

  3. From pipeline manager, select pipeline, choose the required isometric style (here CHECK) & auto-generate the iso-sheet as shown

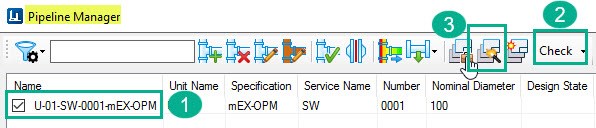

  4. Again, select pipeline & generate iso as shown

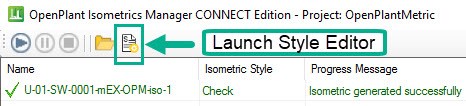

  5. Once done, the OpenPlant Isometric Manager interface will open. Launch style editor as shown

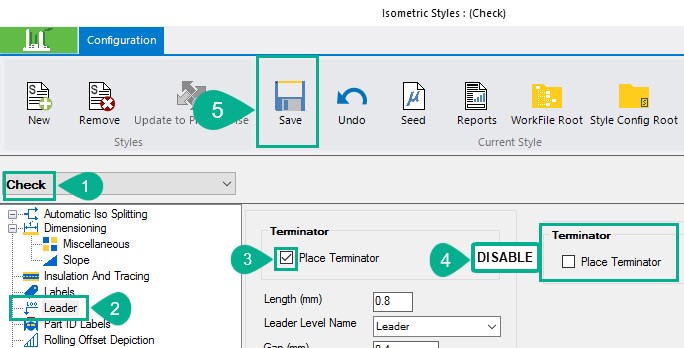

  6. Select the style as a check, move to leader settings & disable the terminator as shown & save.

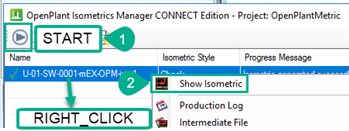

  7. Click on start. Once done, do right-click & select show isometric as shown

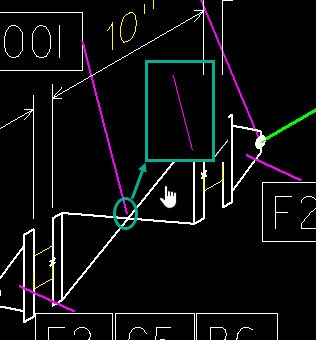

  8. Once the isometric is opened, verify the results as below



    As shown, the terminator for the leader line is disabled now.
