Background

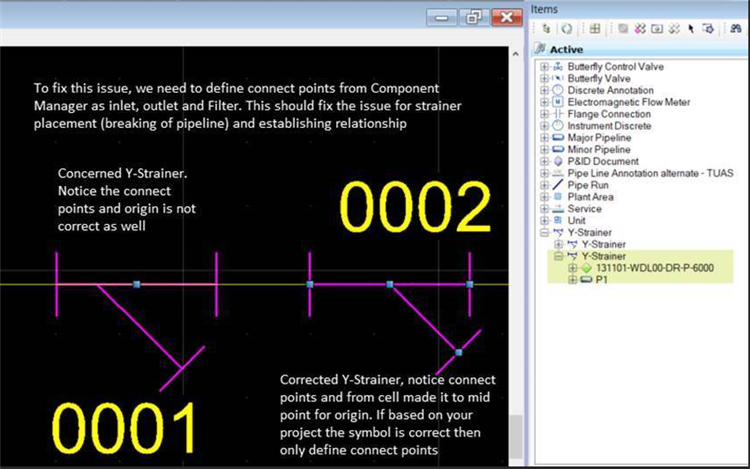

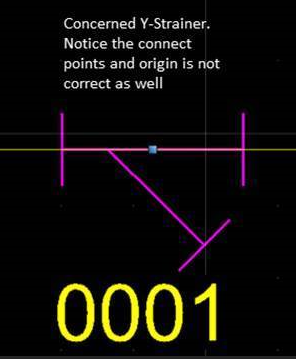

In OpenPlant PID V8i, requirement is to insert fitting placement and it will break the pipeline. By default, the placement of 'Y-Strainer' doesn't break the pipeline. Attached below is the snap for the same. This wiki article explains the procedure for it.
Steps To Accomplish
- Launch OpenPlant PID v8i.

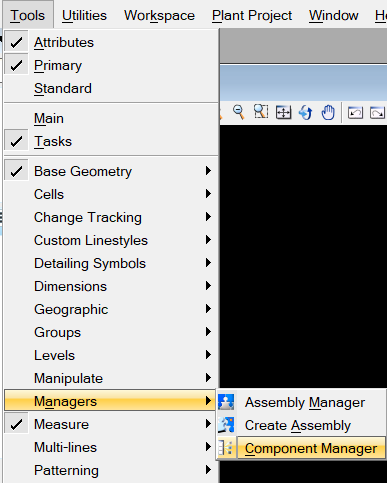

- Navigate Tools and click on Managers > Component Manager as shown below.

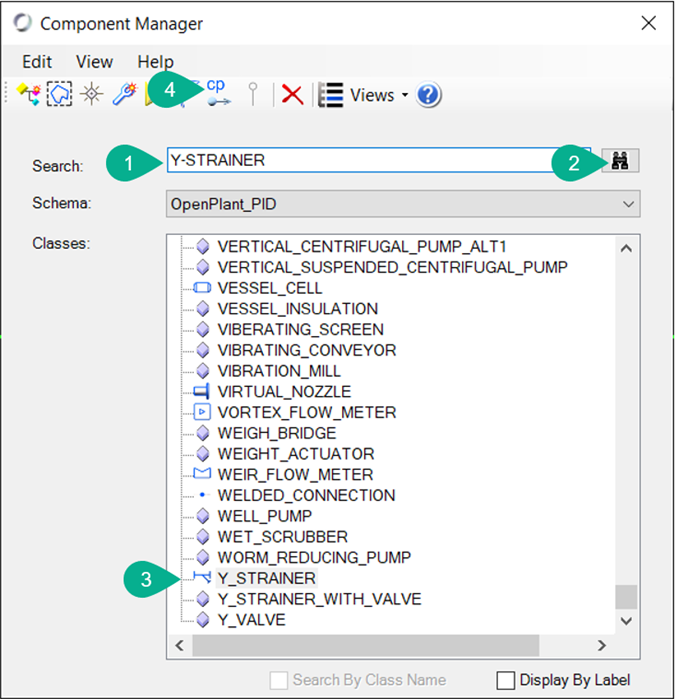

- Search for Y_STRAINER class. Follow bullet points as shown

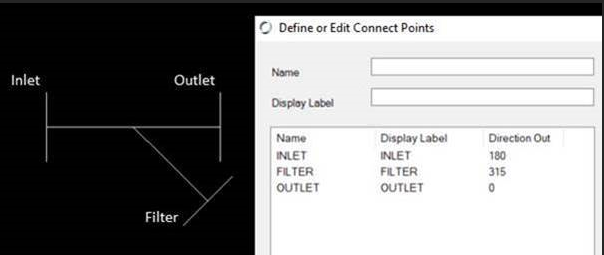

- Notice that no connecting points are defined here. Define connect points as shown below
-
Click on Save and save settings.
- Switch to the drawing file and insert Y-Strainer. Now It should be able to break the pipe run upon insert as well relationship can be established with pipe run & strainer
