In OpenPlant Isometrics Manager CONNECT Edition, the requirement is to add a detailed sketch in isometric at the placement point of Note.
Background

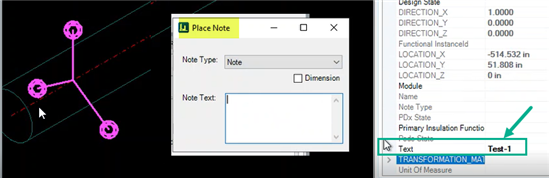

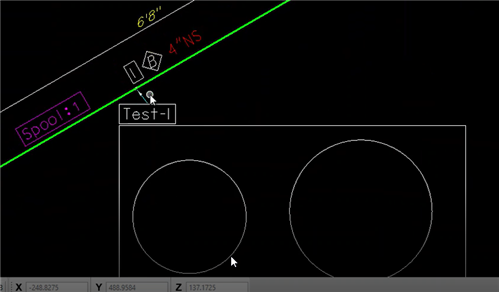

In OpenPlant Isometrics Manager CONNECT Edition, Note is placed along with the text associated with it. Refer the attached image below.
OPIM results
The below wiki article explain how to attach a detailed sketch along with the text Test-1 as shown above.
Steps to Accomplish

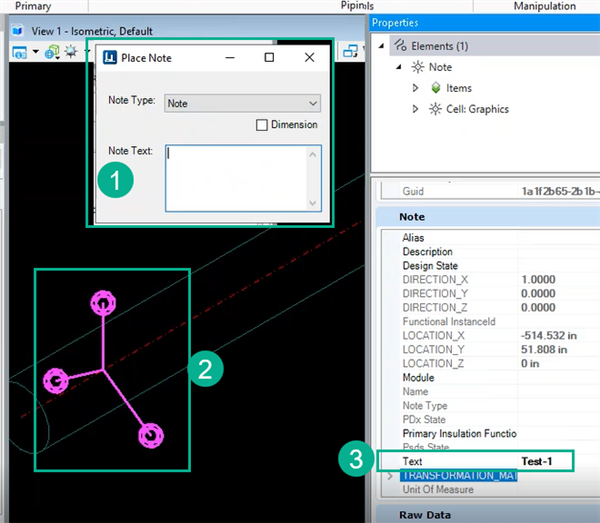

- In OpenPlant Modeler, place a piping arrangement > Place a note on it & enter any desired text to it. ( here as Test-1)
- Launch style configuration.

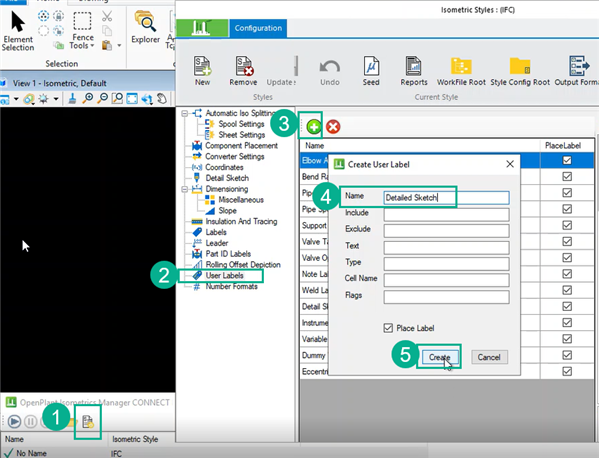

- From User label, add a new label from user label as shown

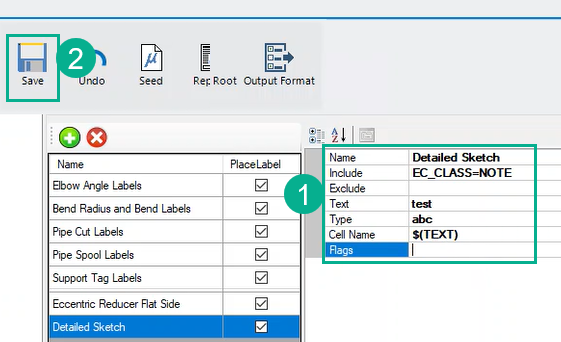

- Enter the fields as shown

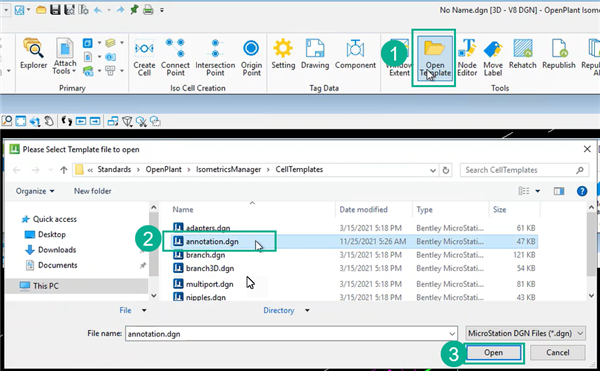

Note: Here EC_CLASS name for Note is NOTE. For a different types of notes, one can enter the particular EC Class name. - Now, to create a cell of sketch, click on open template & open annotation.dgn as shown.

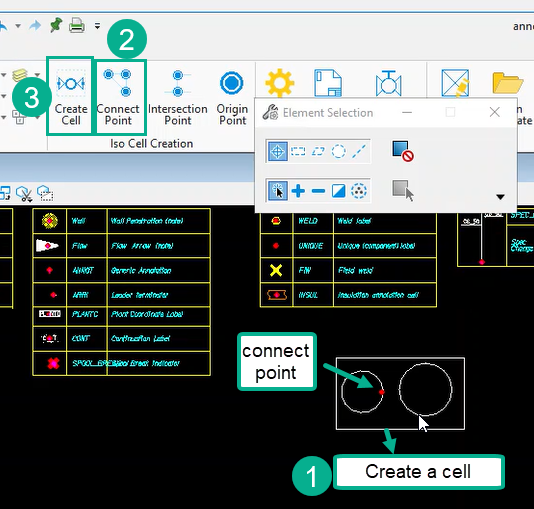

- Create a cell as desired > mention the connect point > Select the whole assembly > Click on create cell as shown

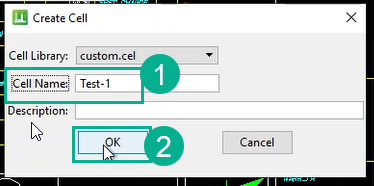

- On the dialogue of cell creation, enter the details for cell name exactly same as the text placed in step-1. It will not read if there is change in the name.

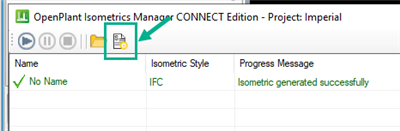

- Close the isometric application/dgn & regenerate the isometric.

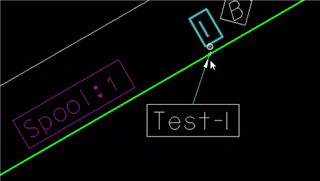

- Notice that, the sketch is now placed along with the note as shown
