How to Import Pipeline list & its Properties from Excel Sheet in OpenPlant PID CONNECT



Applies To
Product(s):OpenPlant PID CONNECT Edition Update 7
Version(s):

10.07.00.32

Environment: Windows 10 (64-bit)
Area: Standard Preference
Subarea: Import Instances
Original Author:Deepak Singh,Bentley Product Advantage Group

In OpenPlant PID CONNECT Edition, requirement is to import pipeline lists & its properties from excel file. Below wiki article will explain the procedure & key points to achieve such requirement.

Background

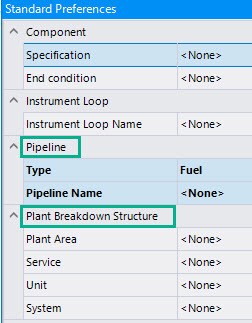

In OpenPlant PID CONNECT Edition, to define a new pipeline we need to enter details (Plant Breakdown Structures & Properties) under Plant Breakdown Structure & Pipeline section of Standard Preference dialog, refer image below.

From OpenPlant PID CONNECT Edition Update 7, new feature as Import Instances has been introduced that allows to import pipeline & its properties from three different mode of database file.Import of instances can be achieved via Excel file (*.xls, *.xlsx), Access file (*.mdb, *.accdb) & SQLite (*.db, *.db3, *. SQLite, *.sqlite3). In this wiki article, we will cover the option via excel file. In OpenPlant PID CONNECT, Import Instances button is not enabled/available by default. We need to add the button to desired group.

To perform import tag instances properly (without any issues), please note below mentioned key-points.

  1. Definition in excel file must be in proper format

Format: (Click here to download sample format)
Header must be properties of PIPING_NETWORK_SYSTEM class. One column as _ECClassFamily has been added that differentiate between the type of pipelines.
Sheet Names should be Class Name (PIPING_NETWORK_SYSTEM, PLANT_AREA etc.

Reference Image

  1. Defined line number format/name must match as per defined EC Expression.

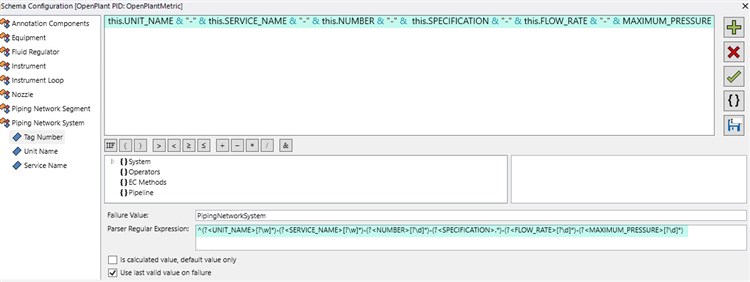

  2. Correct parser expression must be available to exactly parse the line number (tag name)



  3. Database file must be closed at time of import tag instance operation
  4. Currently this implementation is limited to pipeline level only.

Steps to Accomplish

  1. Launch OpenPlant PID CONNECT Edition with desired workset here OpenPlantMetric workset.
  2. Open desired model file.
  3. Right click on white-space of a group & select Customize Ribbon

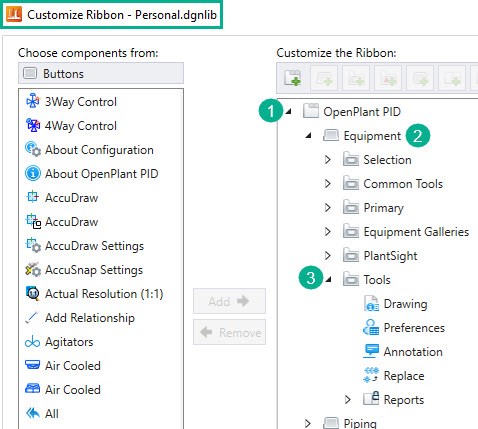

  4. From Customize Ribbon dialog, under Customize the Ribbon section, expand OpenPlantPID > Equipment > Tools. Refer image below.

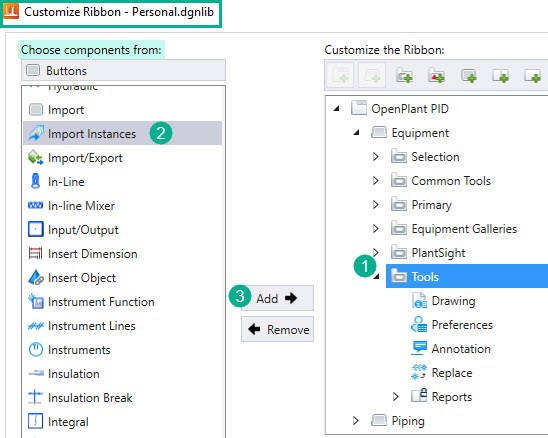

  5. From Choose Components from section, search for Import Instances.
  6. Select Tools > Import Instances > Add. Refer below sequential steps.



  7. Once done click on Click on Close to close the Customize Ribbon dialog.
  8. Notice that Import Instances option can be seen under Tools group of Equipment ribbon.



  9. To import the instances from excel file, click on Import Instances
  10. Select the desired database file (here *.xlsx file) & click on Open

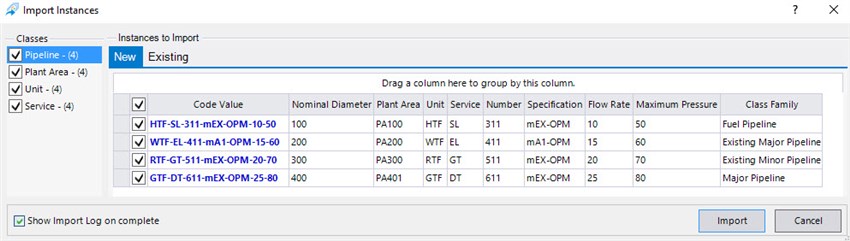

  11. Notice that records from excel file shows in Import Instances dialog, refer image below



  12. Click on Import.

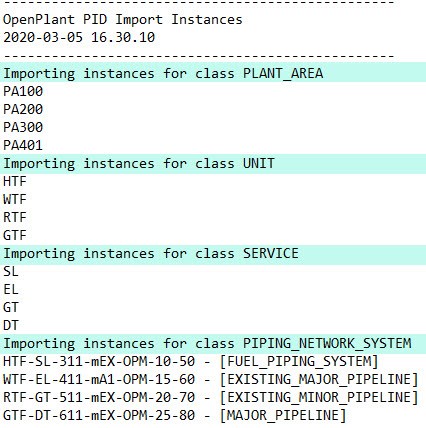

  13. Notice that in log file import status shows as shown below.

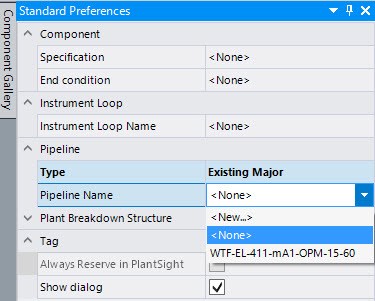

  14. From Standard Preference dialog, change the pipeline Type to see the imported pipeline, refer image below.
