Creating annotation for ducts with leader line


 Product(s):OpenBuildings Designer
 Version(s):CONNECT Edition
 Area:Annotation

Problem Description

How to create annotation for ducts with leader line in drawing model?

Steps to Accomplish

Please follow the below steps through which you can create annotation for ducts with leader line.

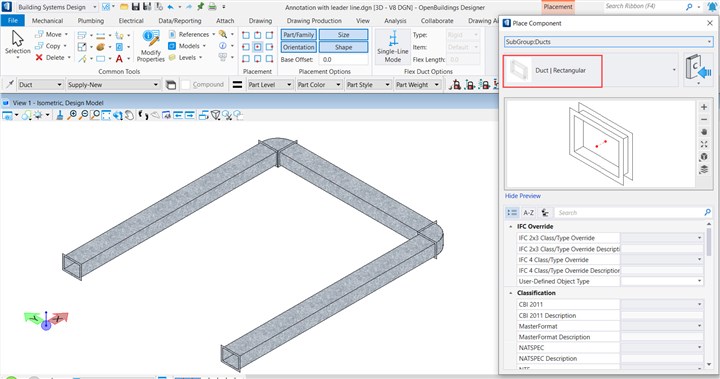

  1. At first, you will have to place some Rectangular Ducts in your model.

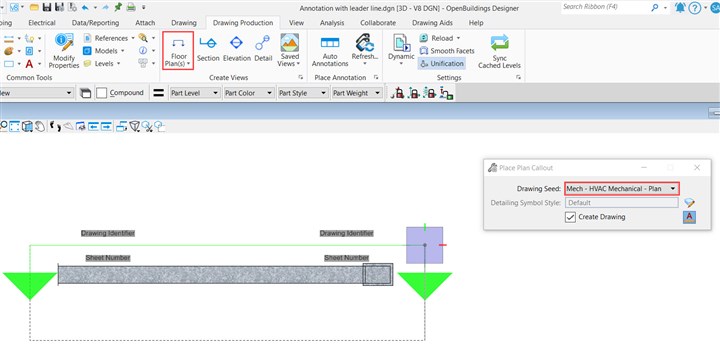

  1. Then you will have to create a plan of it and move to the drawing model.

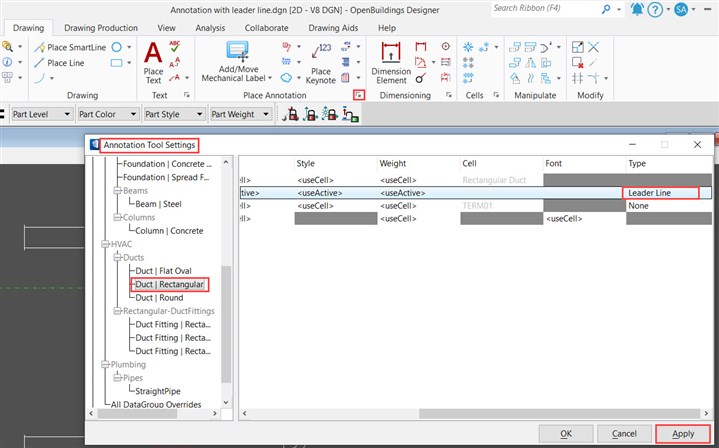

  1. Then under Drawing tab opened the “Annotation Tool Settings” dialog box and from there under Rectangular Duct select the “Type” as Leader Line and hit on Apply.

  1. Then in the Element Annotation tool check on the “Use Mechanical Stacked Annotation” and annotate the ducts. Finally, you can see that annotations are created with Leader Line.



Also, please see the below attached video showing the same workflow for better reference.
