How to place a Tap on Blind Flange center in OPM CE


Applies ToOpenPlant CONNECT Edition
Product(s):OpenPlant Modeler
Version(s):CONNECT EDITION (10.08.00.51)
Environment:Windows 8.1/10 (64 bit)
Area:Placement
Subarea: Placement
Original Author:Soham Mhaskar, Bentley Product Advantage Group

Overview

The Wiki will illustrate in how to properly place a Tap Port on a Blind Flange, as it has to be place unconventionally, this wiki would be helpful.

.

Steps to Accomplish

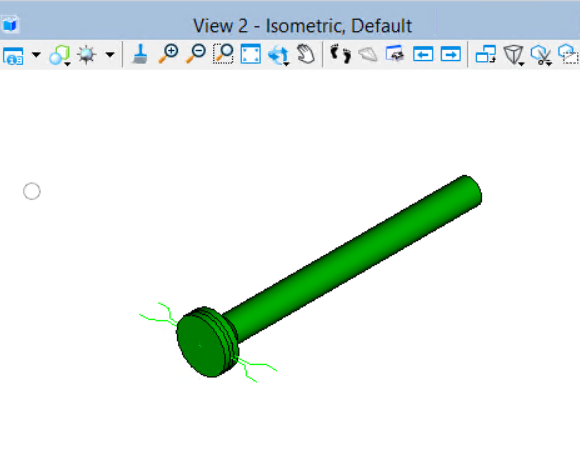

1. Create a Blind flange assembly.

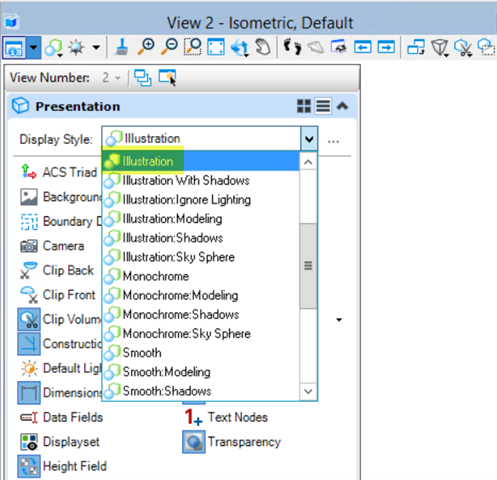

2. Before placement of Tap, be sure to enable the “Illustration” Display Style.

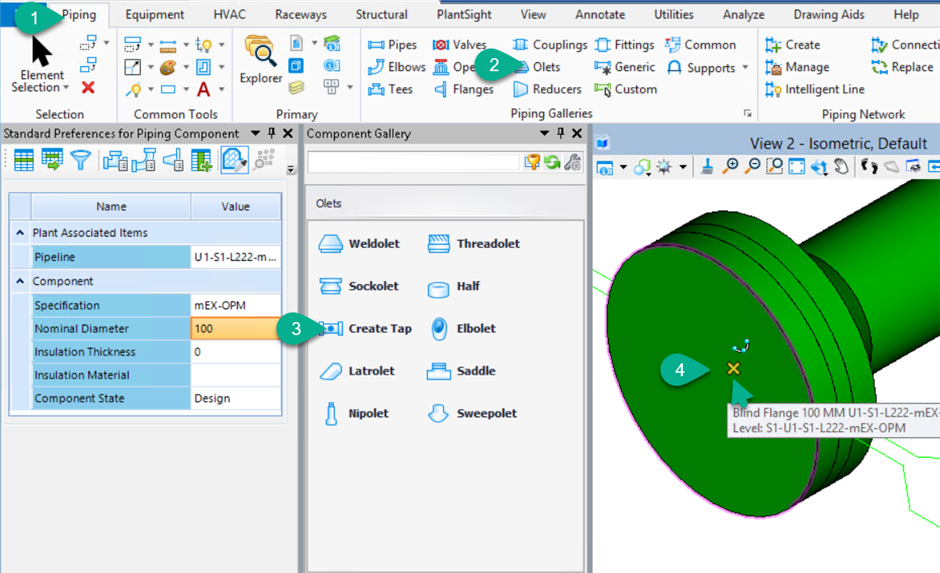

3. While placing a Tap, take your curser towards the center of Blind flange and click once the Center snap occurs.

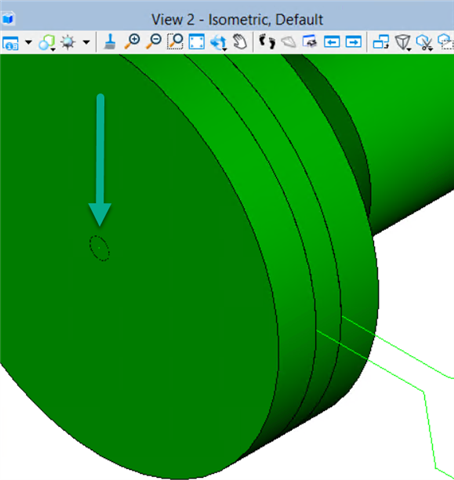

4. Zoom in and see if a small circle shows up on the Blind Flange center.

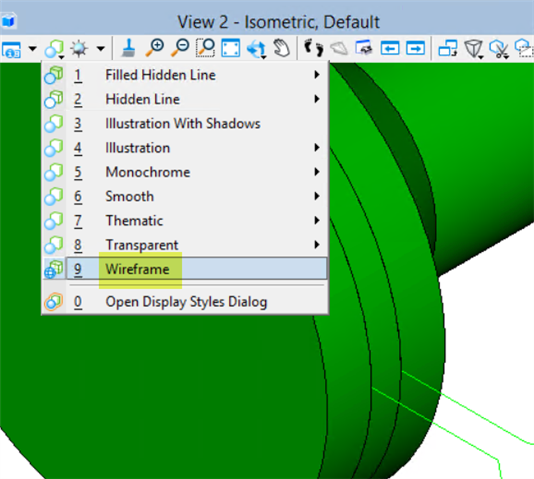

5. Change Display Style to “Wireframe” and View to “TOP”.

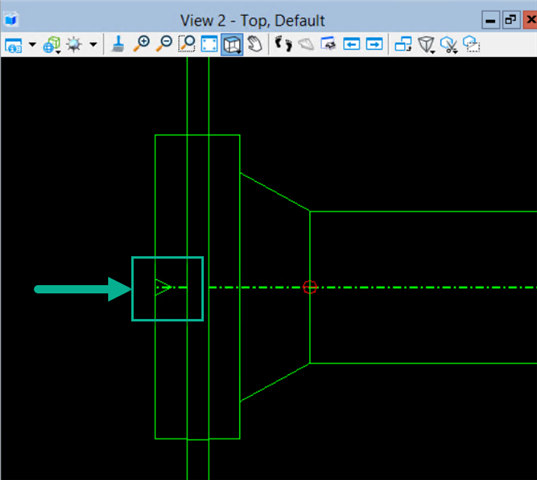

6. Check for proper placement and orientation.
