How to get a Kink on a Pipe without generating Welds in OPM CE


Applies ToOpenPlant CONNECT Edition
Product(s):OpenPlant Modeler
Version(s):CONNECT EDITION (10.07.00.32)
Environment:Windows 8.1/10 (64 bit)
Area:Placement
Subarea: Placement
Original Author:Soham Mhaskar, Bentley Product Advantage Group

Overview

This wiki will be helpful in case of a modelling scenarios wherein the User is looking to Kink a Pipeline without generation of welds.

Steps to Accomplish

1. Open OpenPlant Modeler CONNECT Edition.

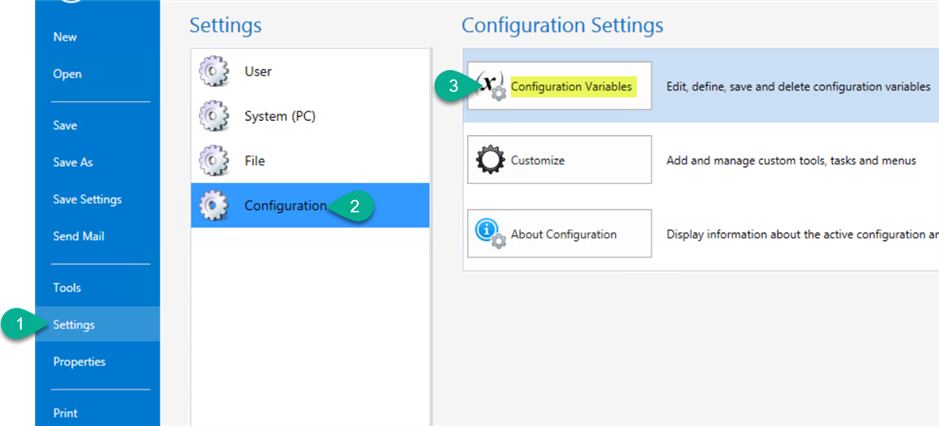

2. Go to FILES > SETTINGS > CONFIGURATION > CONFIGURATION VARIABLES.

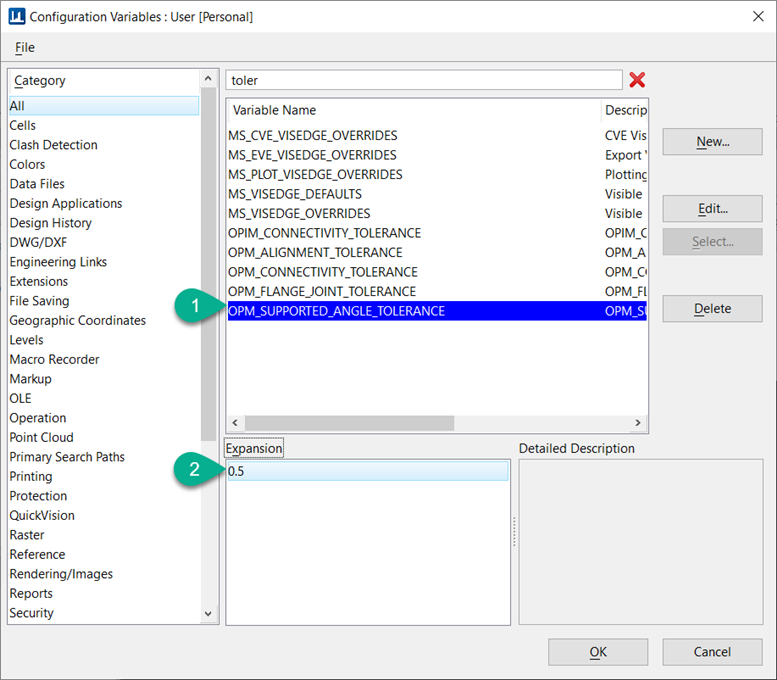

3. Edit the config variable as shown below from 2.5 to 0.5

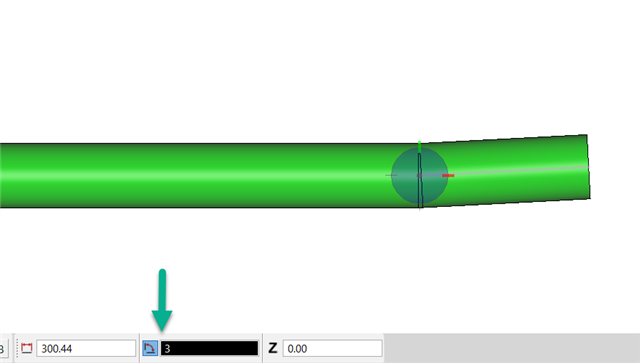

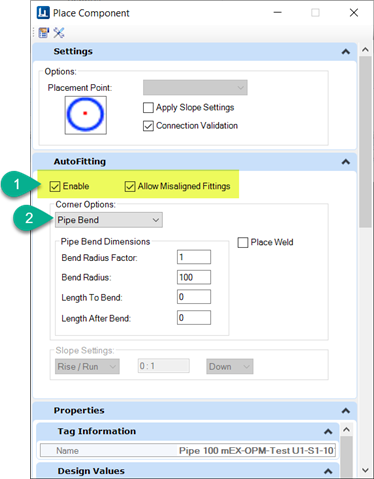

4. Reopen OPM CE and route a Pipeline, in the placement window prior to routing, do below settings.

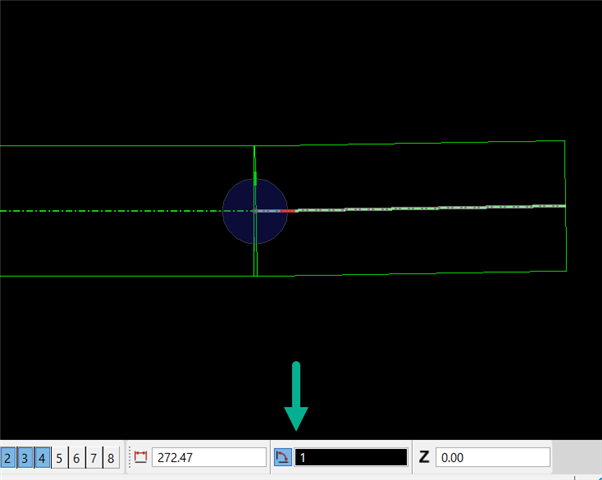

5. Reopen OPM CE and route a Pipeline, in the placement window prior to routing, do below settings.

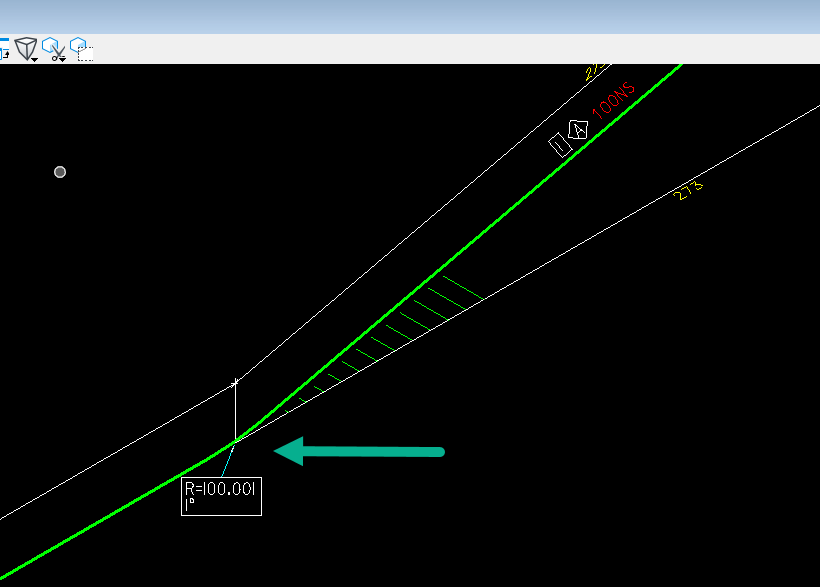

6. Generate Iso Output and witness no weld info.
