Background
In this wiki article, we will explore How to create display rules for specified class in PlantSight Visualizer.
Steps to Accomplish
A. Pre-requisite
- To use the visualizer portal, we need to have PlantSight registered project.
- WorkSet must be associated and Setup with a PlantSight project.
- Ensure that desired applications are enabled for workset like OpenPlant Modeler and OpenPlant PID."

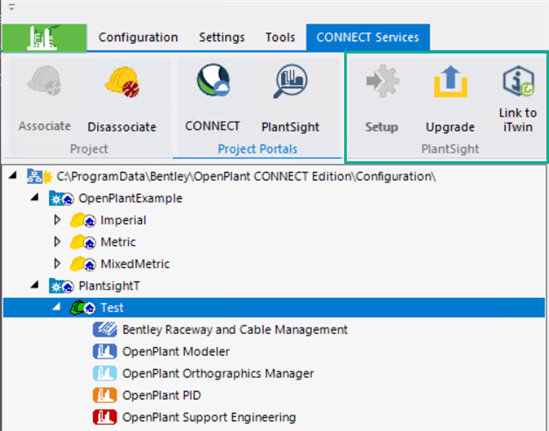

Note:Provision tool has rebranded as Setup in OpenPlant Update 9. Refer image as shown below.
B.Loading visualizer portal and create display rules for a specified class
- Load OpenPlant Project Administrator.

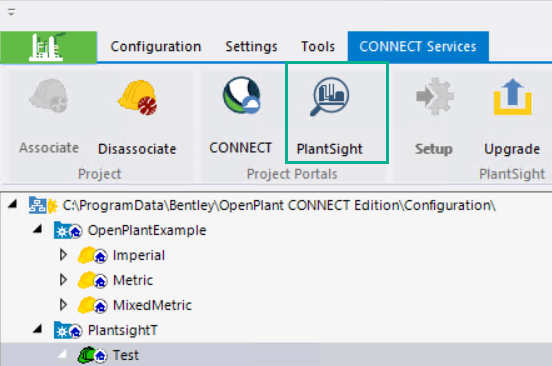

- Select an associated workset and from the Project Portalsribbon group and select PlantSight. Refer to the image below.
- Enter login credentials if prompted.
- Once logged in successfully, notice the in left-hand pane, visualizer service is enlisting as shown in below

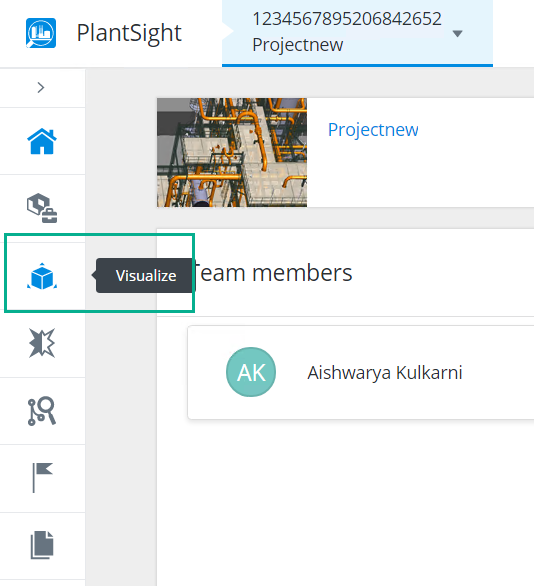

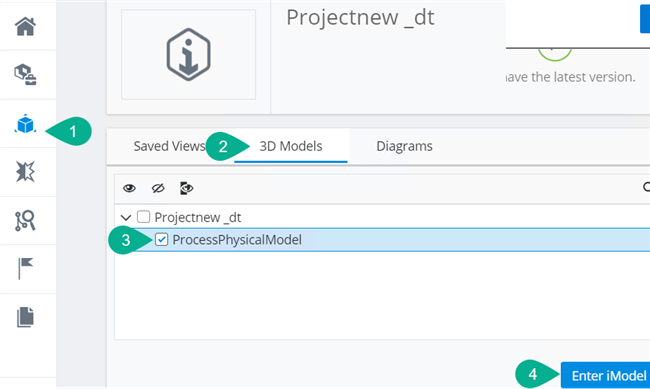

- Click on Visualize and navigate 3D models. Select the imodel and click on enter imodel as shown below.

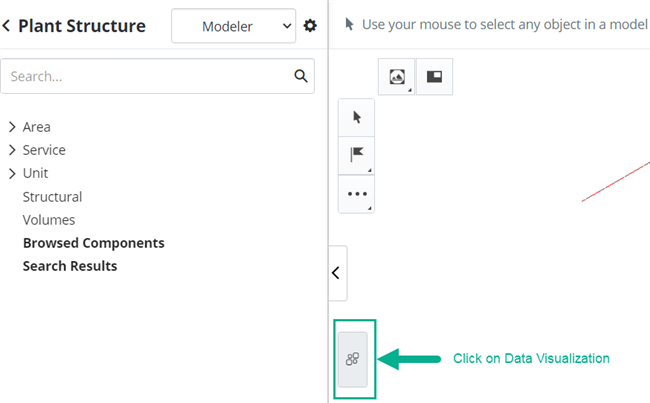

- In the imodel, click on the Data Visualization as shown below

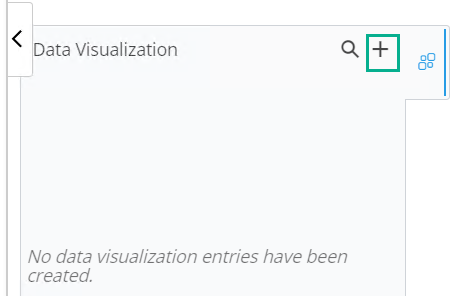

- Click on add icon to create a display rule. Refer below image

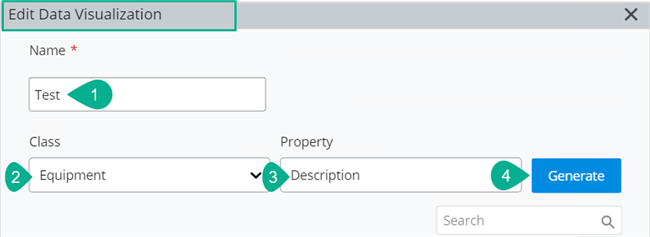

- In Edit Data Visualization add name as Test. Click on the drop-down list, chose Equipment as a class and Description as property. Click on Generate as shown below image

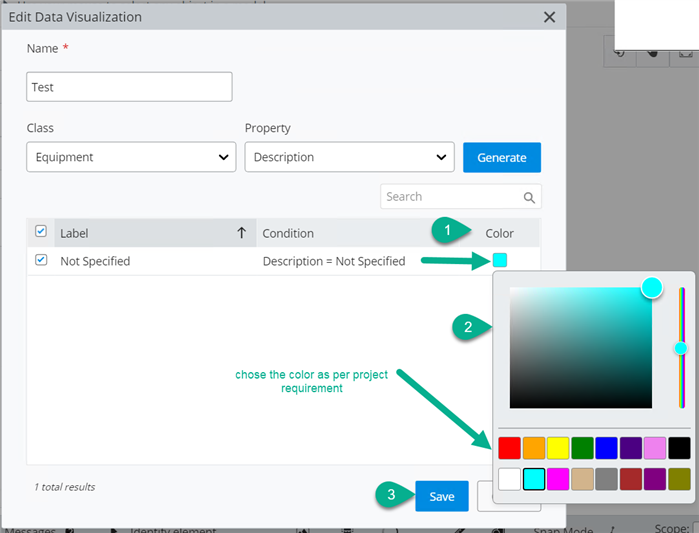

- After generating the label, specify the color as per your project requirement and click on save. Refer below image

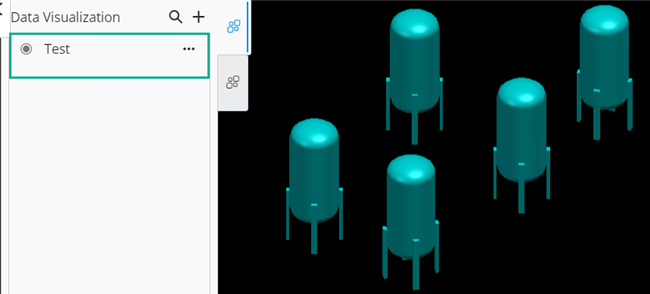

- Go back to Data Visualization and click on the Test display rule. Refer below image
In the PlantSight, it is showing the same color as mention in the display settings.
