How to Export to PXF file in OpenPlant Modeler



Applies To
Product(s):OpenPlant Modeler
Version(s):

CONNECT Edition 10.00.11++

Environment: Windows 8.1/10 (64-bit)
Area: Export
Subarea: PXF
Original Author:Joseph Gelacio, Bentley Product Advantage Group

Background

In OpenPlant Modeler CE, requirement is to export to PXF file for stress analysis


Steps to Accomplish

  1. Launch OpenPlant Modeler.
  2. Draw the desired pipe model

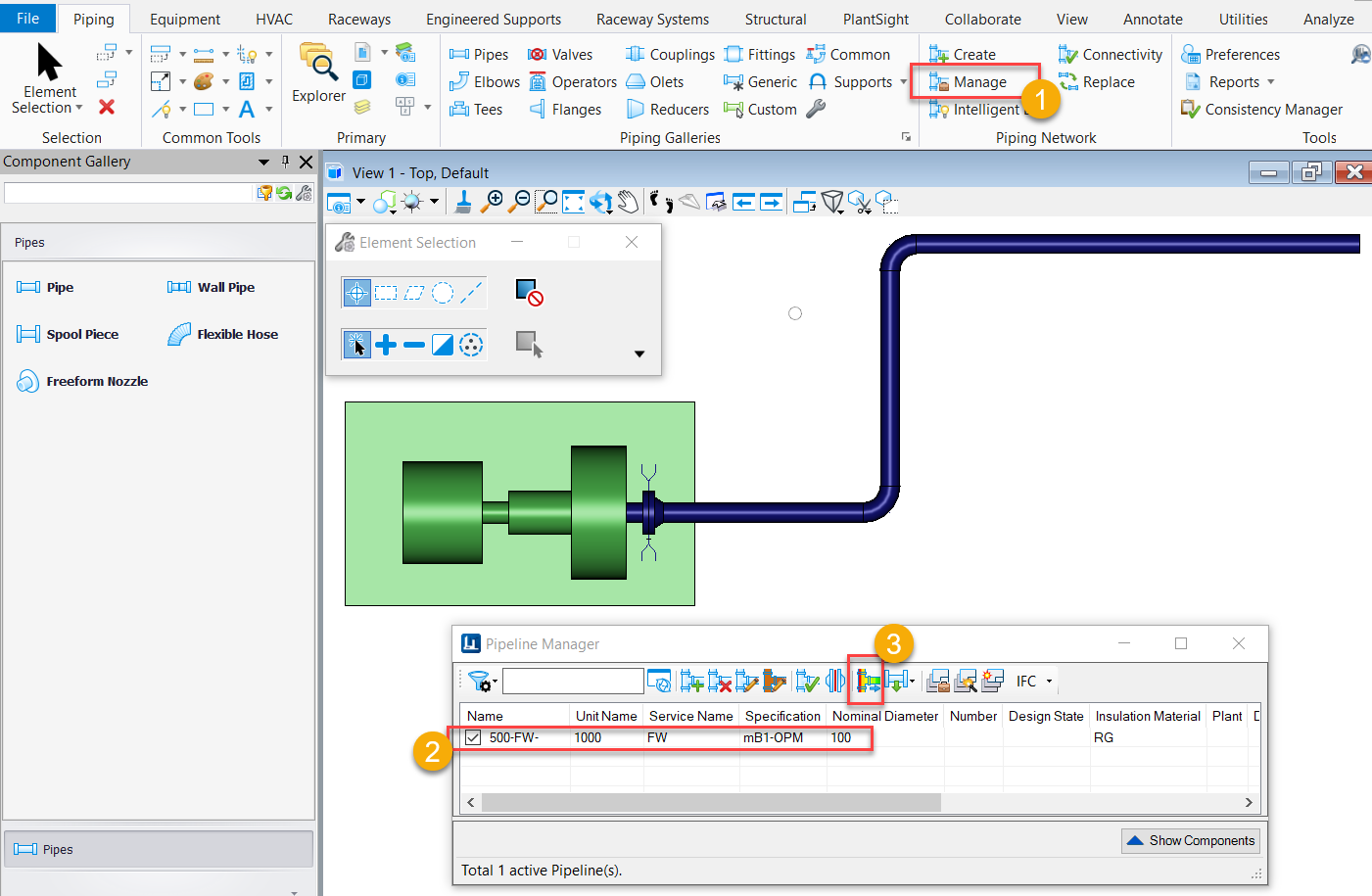

  3. Launch Pipeline Manager(1), select the pipeline to be exported(2), click on Export data for stress analysis(3)

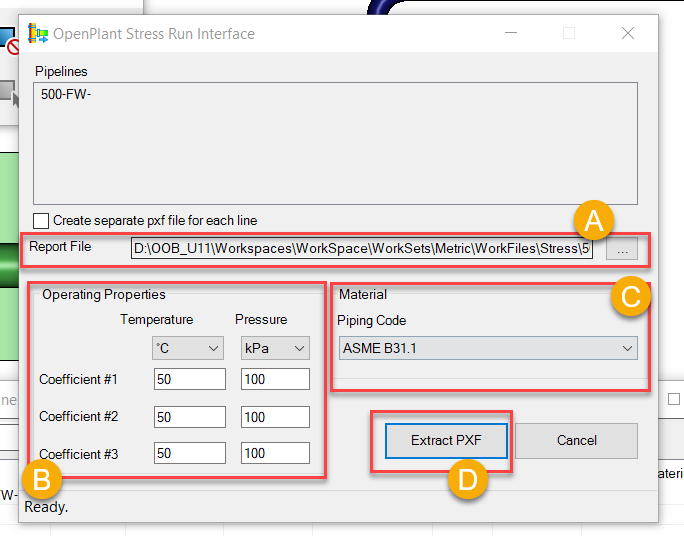

  4. The dialog for the export will open,
    1. Take not of the export location
    2. Make sure to put values to the Operating Properties
    3. Choose the material based on the code list
    4. extract PXF
  5. Check the export location for the PXF file
