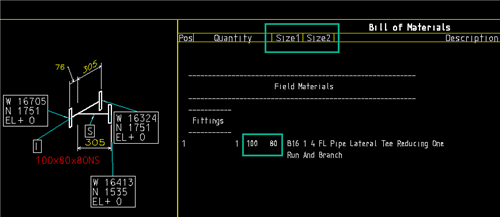

This article will explain, how to include 3 port size information in isometric sheet for a PIPE_LATERAL_TEE_REDUCING_ONE_RUN_AND_BRANCH. By default, size of tee show is in the format of size1 and size2 as shown in below
Steps to Accomplish

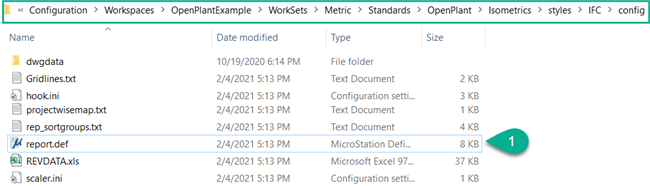

- Open the file explore. For the opening of report.def file, please use below mention path.

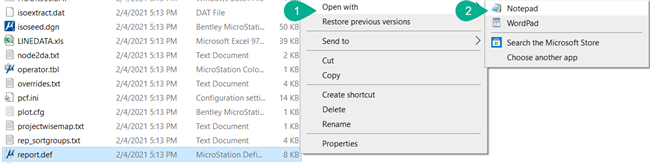

C:\ProgramData\Bentley\OpenPlant CONNECT Edition\Configuration\Workspaces\OpenPlantExample\WorkSets\Metric\Standards\OpenPlant\Isometrics\styles\IFC\config - Open the report.def file in the notepad as per your required workset as shown below.

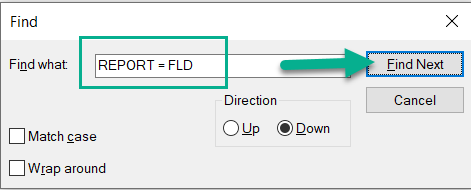

- Press Control+F and find REPORT = FLD, click on find next as shown below

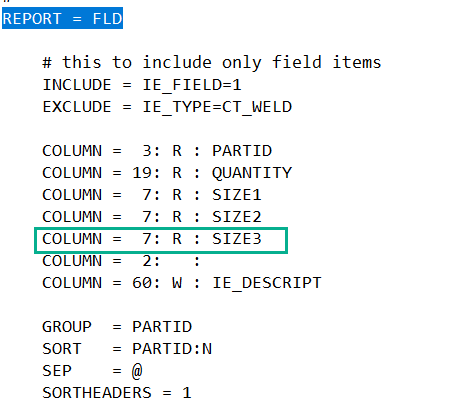

- In this report file, define COLUMN=7:R:SIZE3 as shown below
- Click on file and save all the changed setting as shown below.

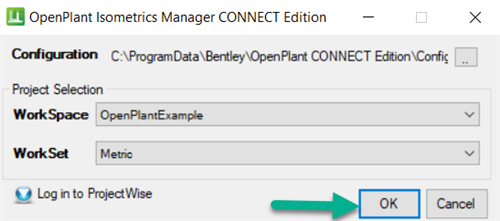

- Launch OpenPlant isometrics manager with using required workspace and workset and click on Refer below image

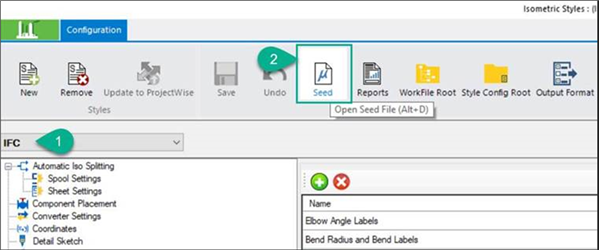

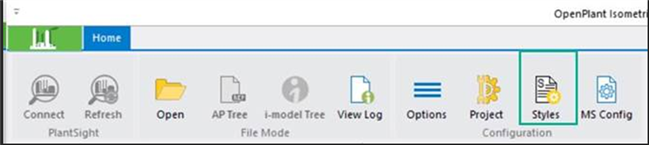

- Click on the style ribbon tool as shown below.
- From the style icon select the iso style as per your requirement and click on the seed file. Refer below image

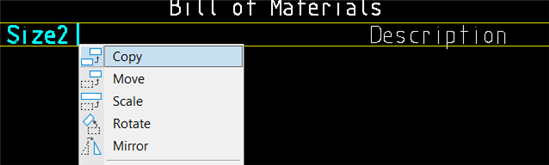

- Copy the SIZE2 and Paste as shown below.
- In the seed file (Template) add the size3 column as shown below
- After that save all the change and generate isometric and verify the result. See image below
