Background

By default, pipe support coordinates are not visible in Isometrics drawing. This wiki article explains the procedure on how to make the pipe support coordinates appear in OpenPlant Isometrics Manager.

Steps to Accomplish

1. Launch OpenPlant Isometrics Manager.

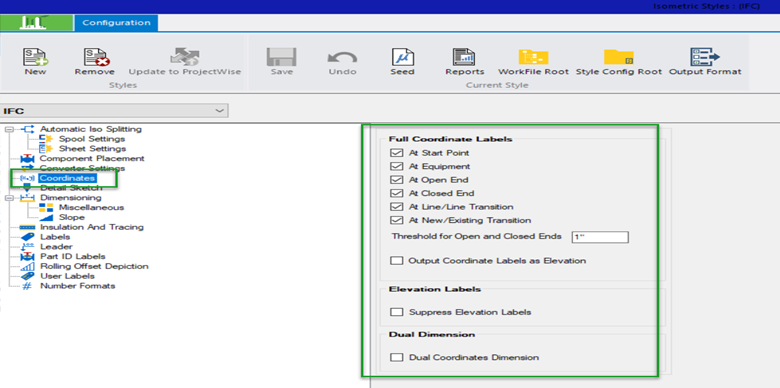

2. In Coordinates, follow the same set up.

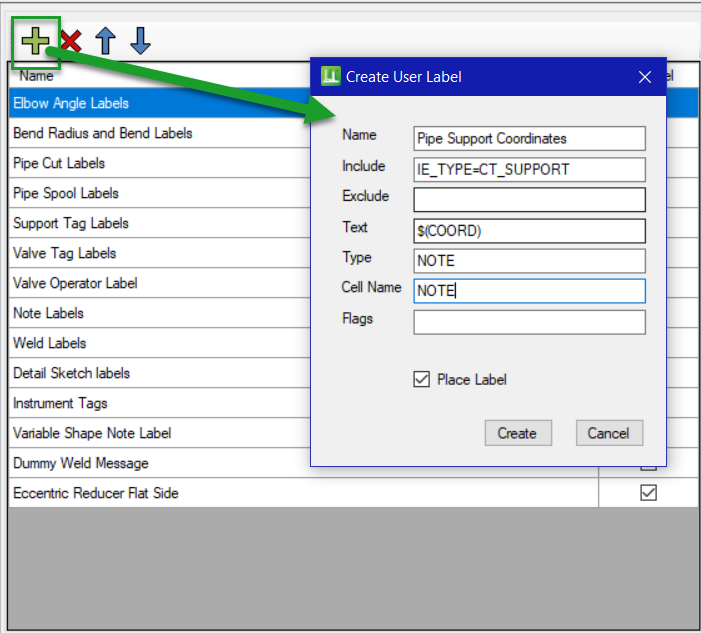

3. Create new User Label and apply the given values.
Name: Pipe Support Coordinates
Include: IE_TYPE=CT_SUPPORT
Text: $(COORD)
Type: NOTE
Cell Name: NOTE

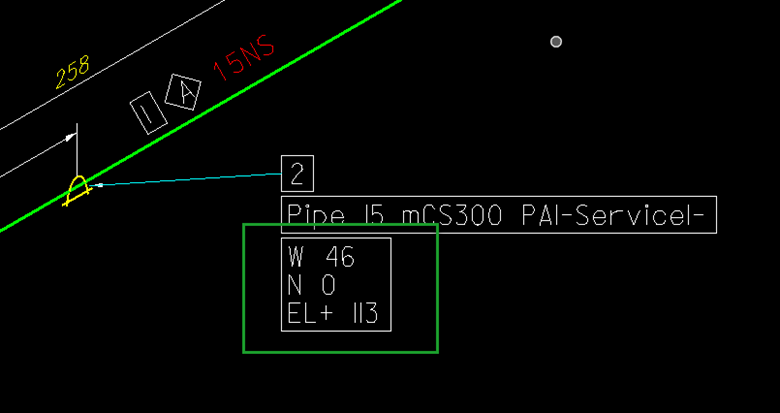

4. Generate Isometrics and verify the result.
