Product(s):	Civil Products (as listed below)
Version(s):	08.11.XX.XX and higher
Area:	Modeling

Overview

The purpose of this article is to help you understand the OpenFlows functionality in Drainage and Utilities (previously "Subsurface Utilities"), within Bentley's Civil products. It explains which programs it is available in, and the availability of OpenFlows tools within them.

Background

The OpenFlows functionality that is available in the OpenFlows SewerGEMS, CivilStorm, StormCAD and SewerCAD products was introduced in the V8i SELECTseries 4 (SS4) version (08.11.09.845) of Bentley Civil products. Prior to that Subsurface Utility Engineering (SUE) tools were introduced in SELECTSeries 3 Civil products (version 08.11.09.674+). Since then the CONNECT Edition products have been introduced. These supersede the MX, InRoads, PowerCivil and GEOPAK products.

Here is the list of Civil products for which OpenFlows functionality is available:

OpenRoads Designer
OpenRail Designer
OpenSite Designer
GEOPAK Suite
Power GEOPAK
InRoads Suite
Power InRoads
Power RailTrack
PowerCivil
MXRoad
MXRoad Suite

Note: this does not apply to these products if they are used in the AutoCAD environment.

OpenFlows functionality within Drainage & Utilities will help users design and analyze all underground utilities, in a single product. Hydraulic model data is stored in a SQLITE file imbedded into the DGN file.

OpenFlows license management within the Civil products.

Note: for a video demonstration, see: Activating Advanced Drainage Capabilities in OpenRoads Designer: Part 1 | Part 2

The ability to use the StormCAD solver for analysis and design of up to 100 inlets is included.
If you own or have access to a elevated OpenFlows Storm or Sewer license, the functionality for that product will be available. In other words, if you own a SewerGEMS, CivilStorm, StormCAD or SewerCAD license, you will be able to use its functionality in the Civil product, along with more than 100 inlets.
Select your inlet/link limit using the Feature Level Selector, so that the proper license is used.
The availability of the various licenses that can be activated in Drainage & Utilities (e.g. CivilStorm, SewerCAD) can now be configured by the Site Administrator, using CONNECT Licensing.
- Previously, Drainage & Utilities didn't know whether a license for one of these products was available or not, so a generic message telling you that usage would be logged, and additional charges might occur, was displayed. Now, availability is controlled by CONNECT Licensing, which means that you can see exactly what product licenses and feature levels (number of inlets or links) are available.
If you are in the OpenAccess program, you will also have access to all storm/sewer products.

How to change active OpenFlows license

The following features are included in Civil products:

Conflict Management / Clash Detection
Subsurface / Drainage Utilities attributes
3D Modeling of all Underground Utilities
Integrated with OpenRoads
Storm/Sanitary Hydraulics and Hydrology Analysis and Design

OpenFlows - Hydraulics and Hydrology Functionality - how it works in Civil products

With the availability of the Drainage & Utilities tools within your Civil products, you can perform the following things:

Design / Analysis of new or existing storm-sewer models within the Civil product
What if analysis, scenario and alternatives management as is possible in Hydraulics & Hydrology products
Directly import existing storm-sewer models into Civil products
The DGN file can be directly opened back in Bentley's storm and sewer products (SewerGEMS, CivilStorm, StormCAD and SewerCAD).
Clash detection of the utilities like water, gas, waste water, thermal, electrical, storm water, petroleum etc.
Reference the Bentley OpenFlows Storm and Sewer models in the form of DGN files, to perform the clash detection or to compare the position of e.g. storm water lines with the water lines.
Storm and Sanitary design tools integrated with Civil tools.
- While laying out the network you can extract the elevation from the existing terrain model, so you don't need to enter the elevations manually.
- Elevations can be ruled to road/site design surfaces
- Position can be ruled to geometry
3D modeling of the hydraulic elements within the Civil products.

The CONNECT Edition Civil products also enable more Report options than the SELECTseries 4 versions:

Updating a Drainage and Utilities model after changes are made in a storm or storm sewer standalone product

A Storm or Storm Sewer file can be updated in standalone and opened in Subsurface Utilities using the steps below:

1) Open the .DGN file using any of the hydraulics and hydrology Select Series 5 or CONNECT version standalone products.

2) Update and save the file

3) Open the file in one of the Civil products.

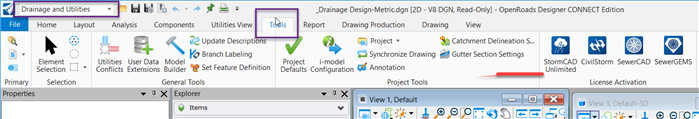

4) Go to the Drainage & Utilities workflow > Tools > Synchronize Drawing... the file should update.

Tools in OpenFlows storm-sewer products available within Drainage and Utilities.

Catchment Delineation is available when placing and moving catch basins.

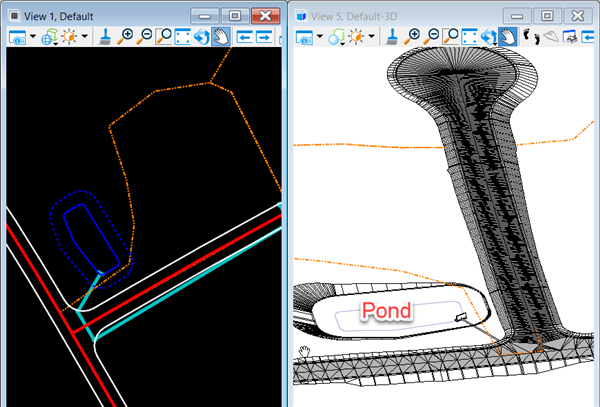

The Place Pond tool includes a "From Terrain Model" option, which automatically creates an Elevation/Area collection by analyzing the selected terrain model. This collection is automatically updated if the terrain model changes.
The ability to Create Dimensionless Rainfall Curves from a CSV file has been added, primarily to read temporal pattern data from the Australian Rainfall and Runoff data hub.
LoadBuilder tool to import sanitary loading information using shapefile.
Support for OpenFlows gutter sections functionality. This creates intermediate sections along a gutter element by sectioning a terrain model. Spread widths are calculated at each section.
The default value for a User Data Extension (UDX) can be overridden in a feature definition, so you can assign one User Data Extension to multiple feature definitions and use a different default value for each one.
Flow arrows are displayed for drainage conduits in Element Symbology.
Support for OpenFlows Tap and Property Connection types in the Structure Type property of a node feature definition.
Ability to use the local design constraint for a conduit, instead of the default design constraint.to set the depth of cover. This lets you override default values such as the depth of cover, minimum velocity, etc., which can be helpful if the conduit is modelling an open section such as a ditch.
Critical storm analysis tool and Critical storm analysis wizard are also available to assist in streamlining the process of creating scenarios, alternatives, calculation options and storm events for a specific set of return periods and durations with starting from 10.08.xx,xx versions.
Ability to perform batch pipe split functionality which automatically inserts nodes in conduits if they are within an offset tolerance specified.
Added support for UK Flood Estimation Handbook 2013 Rainfall Data starting with 10.09.00.91 version.

Tools not available from OpenFlows products

Theissen Polygon
Pump modeling
Customer elements
Change tracking feature
Quick graph
Element property inferencing

Version Compatibility

Each version of OpenRoads/OpenSite uses a certain version of the underlying OpenFlows technology for drainage. When the need arises to open models between these products and the OpenFlows products (such as SewerGEMS or StormCAD), one needs to consider the corresponding version to ensure compatibility.

See: Platform Compatibility Chart – Civil Products – OpenFlows Products

Training and Learning

OpenRoads Designer - Learning

Learning Resource Guide for new users of Bentley SewerGEMS

Training for drainage functionality in OpenRoads Designer

Activating advanced drainage capabilities in civil product

There is On-demand Answer Hour session video about activating advanced drainage capabilities in civil product. Which includes understanding StormCAD 100 inlets license within civil products, how to utilize 100 inlets license, how to change license to other available license options like StormCAD unlimited, SewerGEMS, CivilStorm, what is meaning and usage of each particular license and which one you should utilize to match your project requirements all this is covered in this answer hour session.

Note on Terminology

Starting with OpenRoads Designer version 10.08.00.88, the term "SUBSURFACE UTILITIES AND DESIGN ANALYSIS" has been officially changed to "DRAINAGE AND UTILITIES" though the functionalities are same.

Videos

www.youtube.com/watch

Understanding OpenFlows Drainage Functionality in OpenRoads Designer
