Verification - Bars in a Truss


Application GeoStudio
Version Latest version
Primary Analysis SIGMA/W
Keywords GeoStudio, SIGMA/W, bar, element, structure, hand calculation

Introduction

The purpose of this example is to verify the behavior of bar elements in SIGMA/W when the structural elements are not connected to any other regular soil elements. All of the results are verified by comparison with hand-calculations.

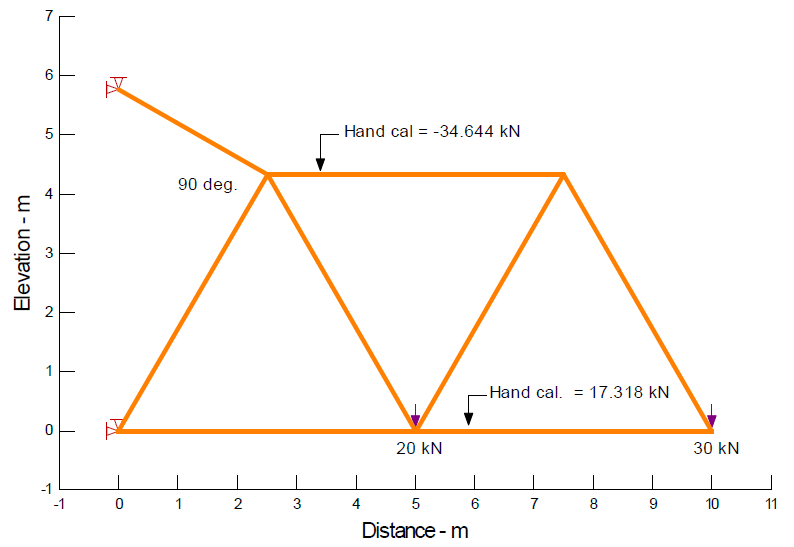

Verification - Bars in a Truss.png
