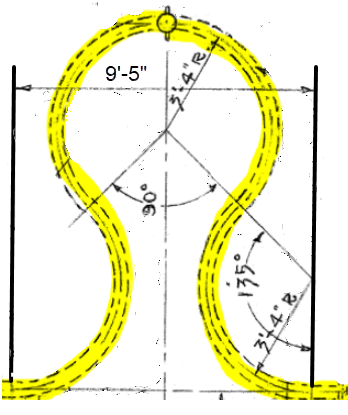

Q. How to model a Double Offset Expansion U-Bend?


Notes:

  1. This example will use 4" dia pipe, but instructions can be used for any size pipe.

Instructions

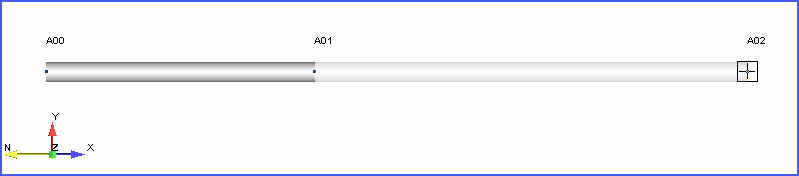

  1. Model horizontal pipe
  2.  While observing the double offset Expansion return see that the entire routing is comprised of tangent bends connected together. Therefore, one can make this component using 2 different methods or a combination of each method:
    1. Method #1: Bend command
    2. Method #2: Ring command
  3. Notes:
    1. This example will use both methods to showcase versatility.
    2. Bend method requires the exact coordinates of each bend's TIP point.
    3. Ring command is easiest but requires a deep and clear understanding of using the ring command itself.

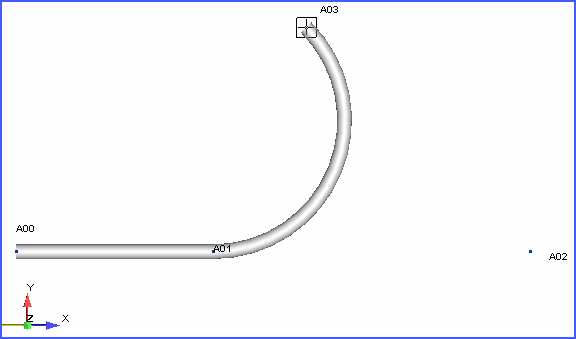

  4. Next, Using the bend command, insert an arc of 135 deg. and 40 inch rad
  5. Insert Bend - use DX = 8'0.6000" bend radius = 40 inches
  6. Insert Run - use Dx = -5'8.3065", Dy = 5'8.3065"

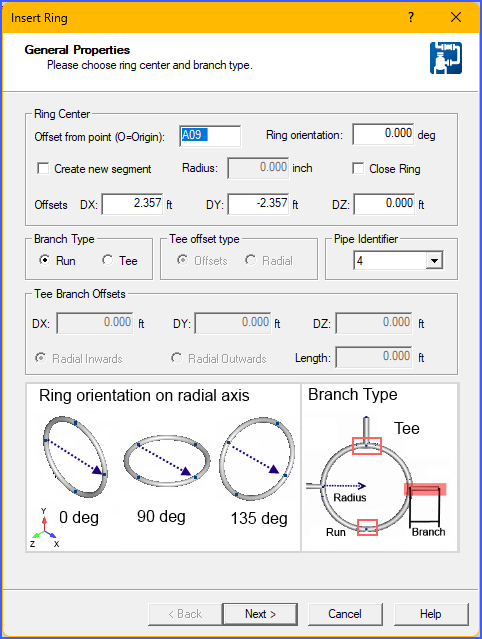

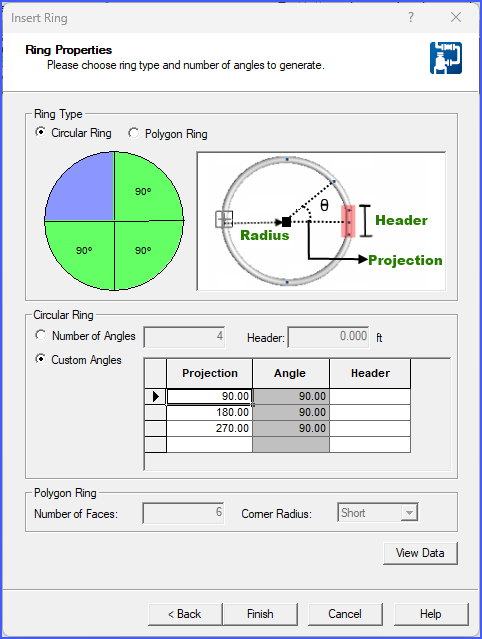

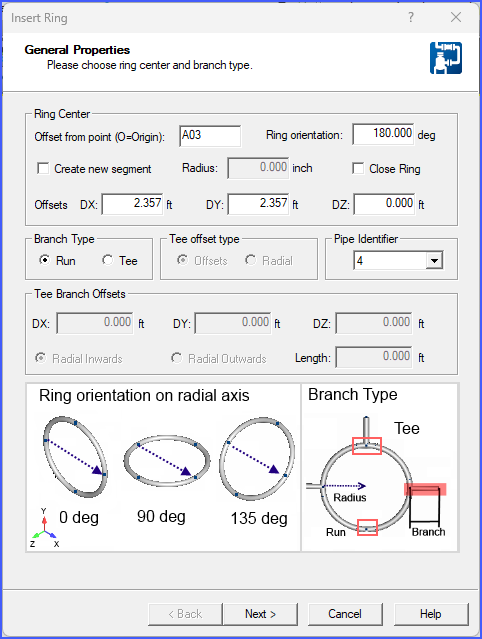

  7. Insert Ring using dialog settings below:
  8. Press Finish button

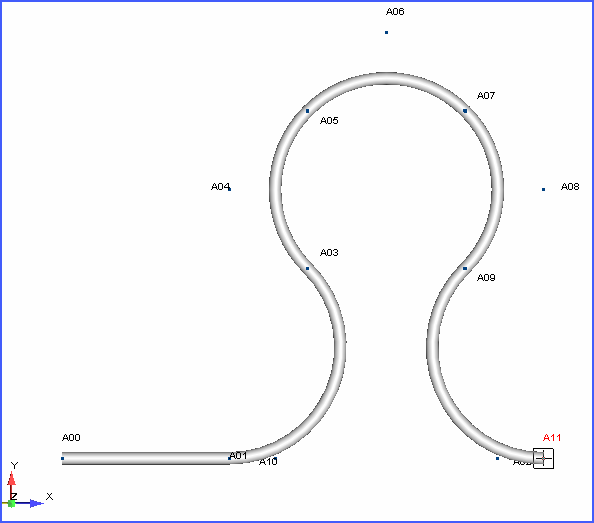

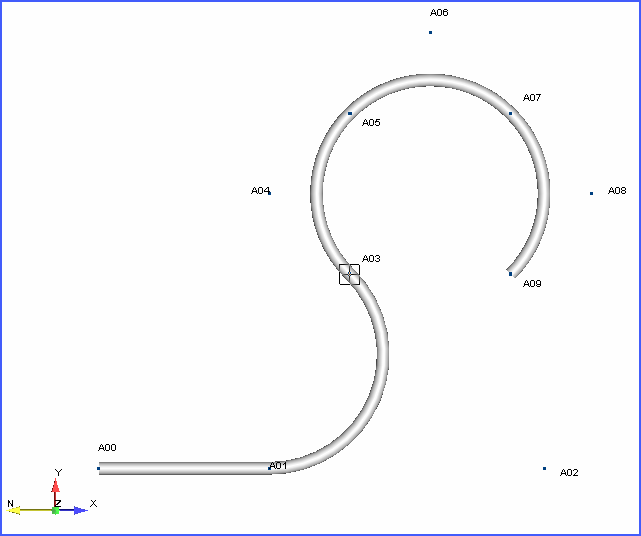

  9. Insert Bend, mimic the previous steps above but backwards, Or insert a ring

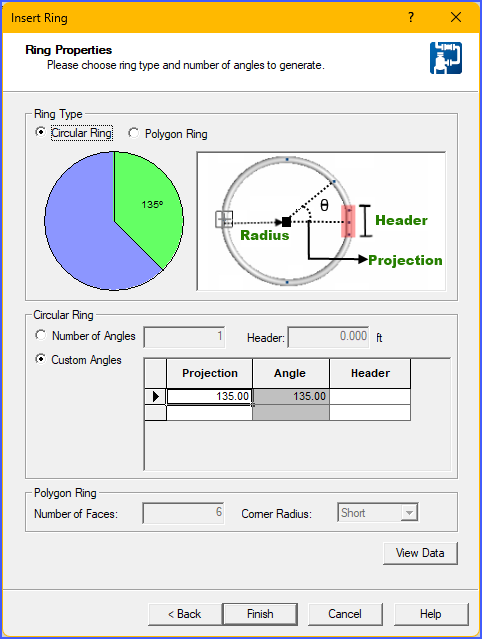

  10. Insert Ring using setting shown below:
  11. Press Finish Button

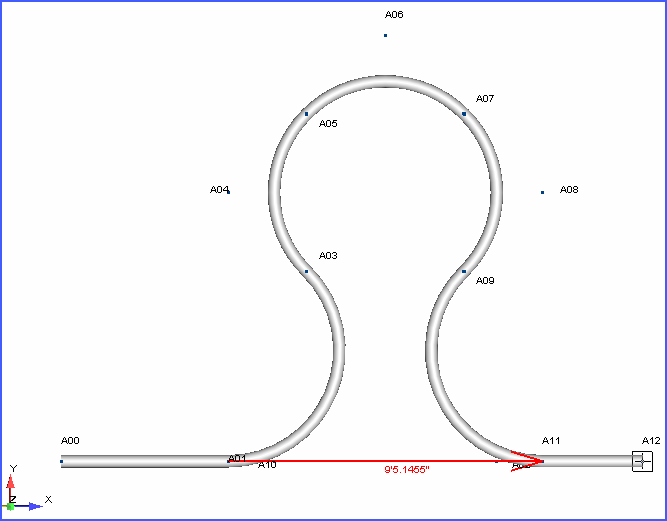

  12. To finish the modeling approach, add next run point and verify dimension from Start to Finish of expansion loop (should be 9'5")
  13. The final verification dimension might be somewhat inaccurate due to AutoPIPE's constraint of handling numbers exceeding 9 digits.

Conclusion:

By using a bit of Trigonometry and AutoPIPE, one can effortlessly model a complex double bend expansion loop utilizing the bend command, the ring command, or a combination of both.

Note: If there are questions on the values used or settings on dialogs review your trigonometry calculations for this piping layout and AutoPIPE help for details on commands.
