View GIS

To Access: Go to Menu → GIS.

GIS Menu

In the top-right corner, users can choose different options.

Markers: List of all markers on the GIS. It's straightforward to filter out specific markers. Layers: List of all layers on the GIS. Simple to show/hide specific layers. Tools: Optional tools. Measure distance, take a snapshot, create a Contour plot and Show labels. Alarms: List of all Alarms. Information: GIS Description, which is added in the GIS setup.

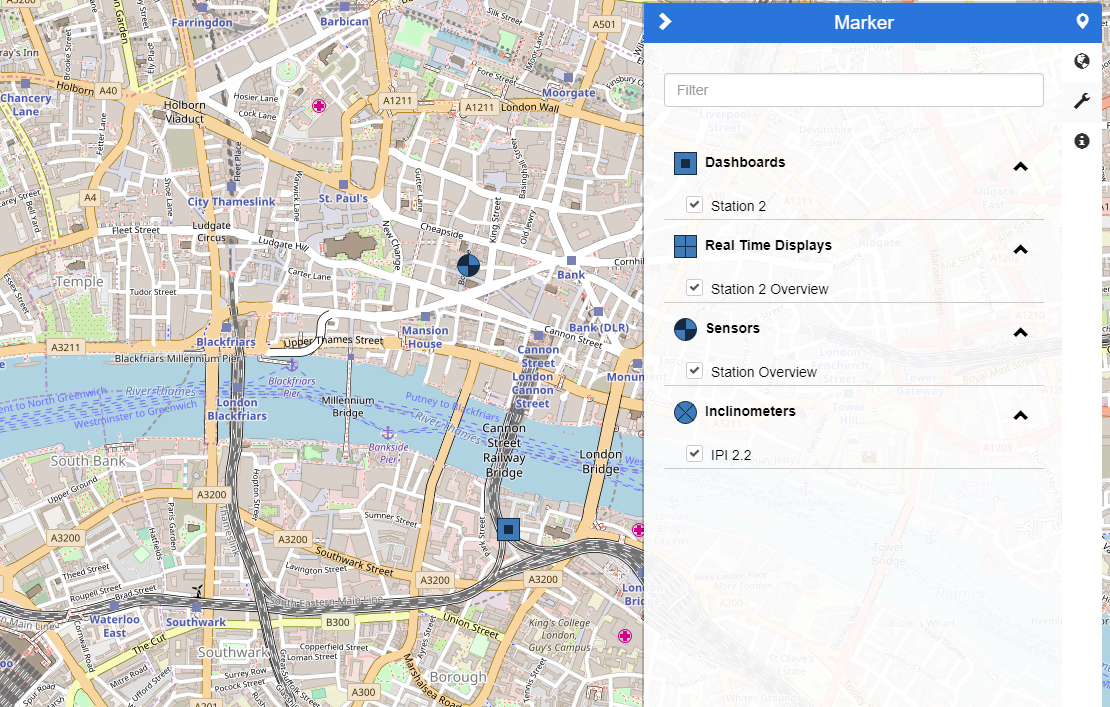

Markers

When the Marker icon is clicked, a list of all Markers will be shown.

• It's straightforward to use the Filter to search for a specific marker.
• Click on the Icon of each Marker Type to Hide/Show all markers.
• Click on any Marker name to show the data.

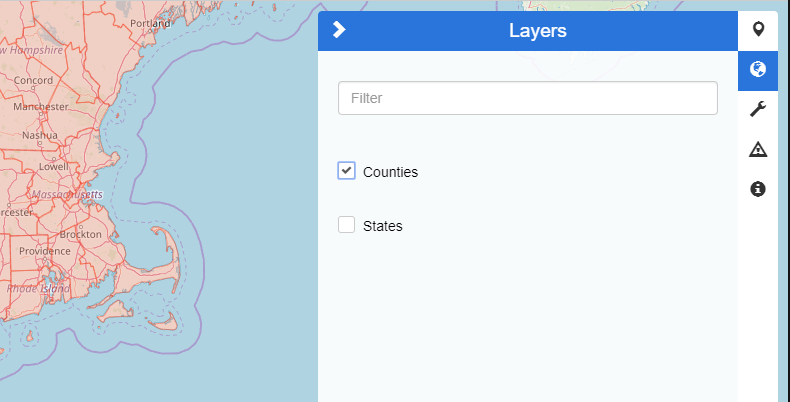

Layers

Hide/Show GIS Layers.

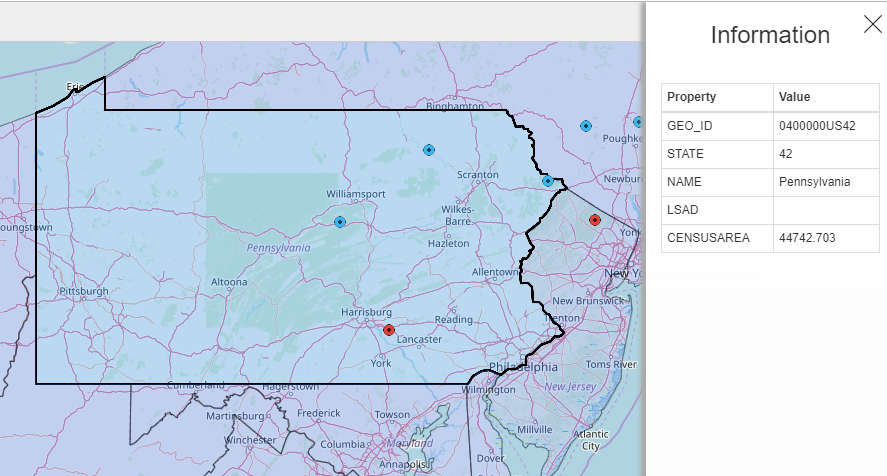

If a Layer has been configured to allow Layer information, users can click on a layer to show the Layer information.

Tools

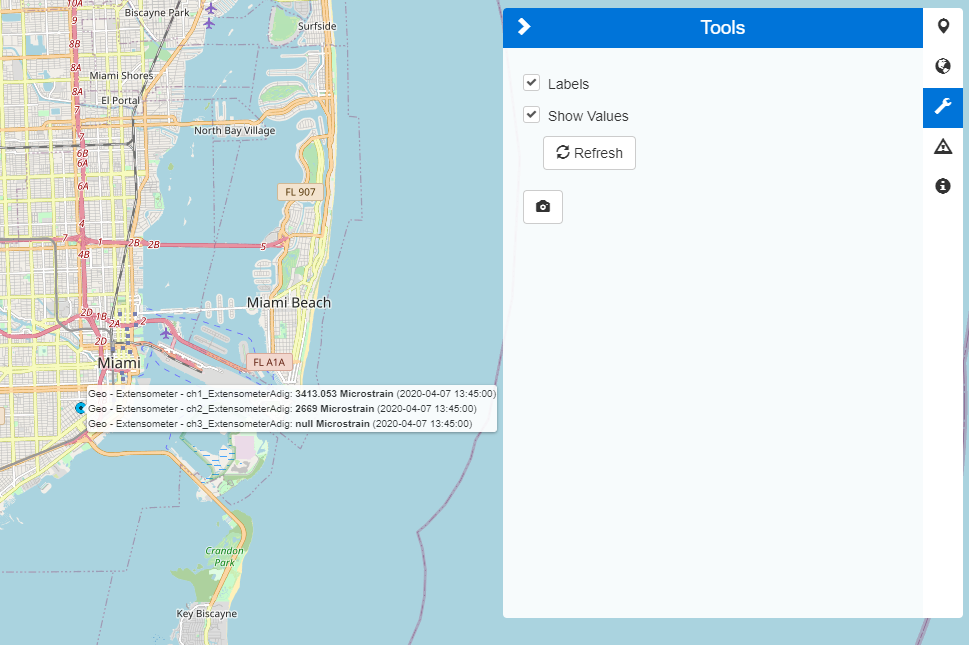

Labels: If activated, the Label of each marker will be shown. Values can also be shown.

Snapshot: If the user clicks on the Snapshot button , a screenshot of the GIS will be saved to the user's computer.

Measurement: the Measurement button will appear on the left-hand side of the screen, and with it, users can measure the distance between two or multiple points.

Select sensors

This works only for Variable markers if clicked on the icon, then the user can circle the markers he wishes to choose.

After selecting the user can

• Click on the View button to view a graph with all the selected variables.

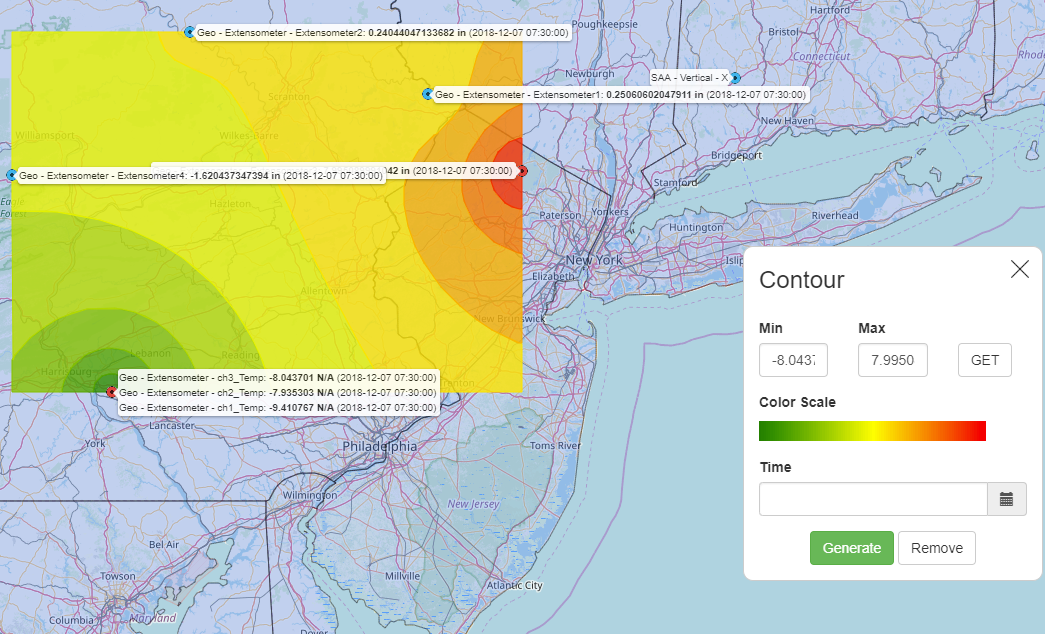

• Click on the Contour to create a custom Contour plot for selected variables.
  • Choose Min, Max and Click Generate.

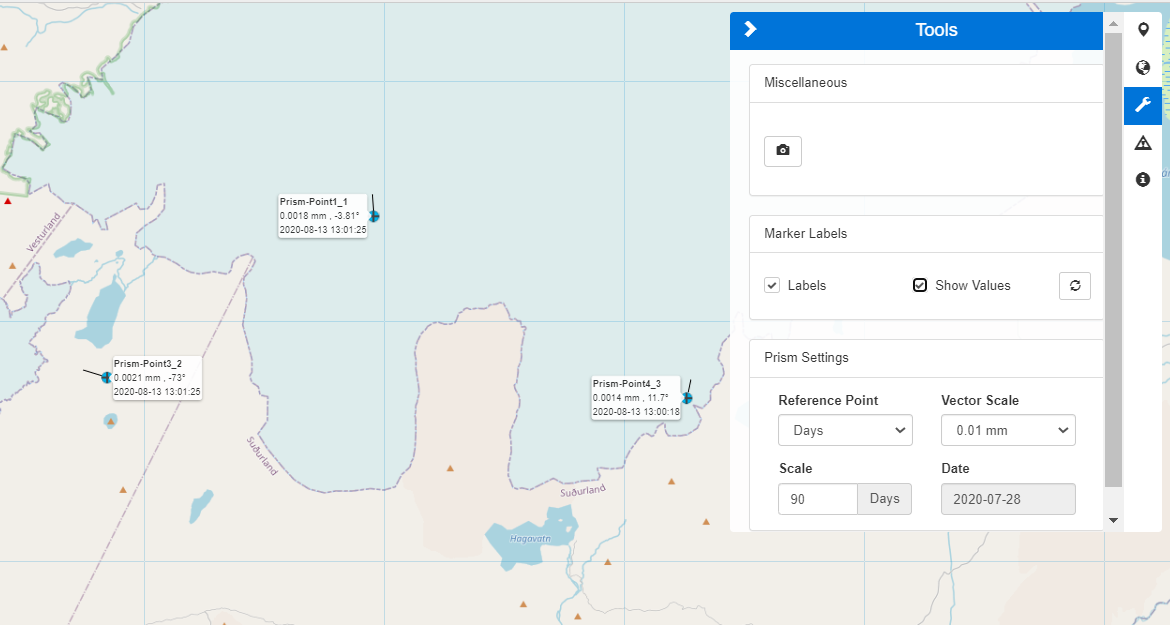

Prisms

When a marker contains a Prism, the Prism settings will appear in the toolbar.

The Prism settings allow the user to select the Reference Point (Days/Date), Vector Scale, Scale (if Days are chosen), or Date (if Date is chosen).

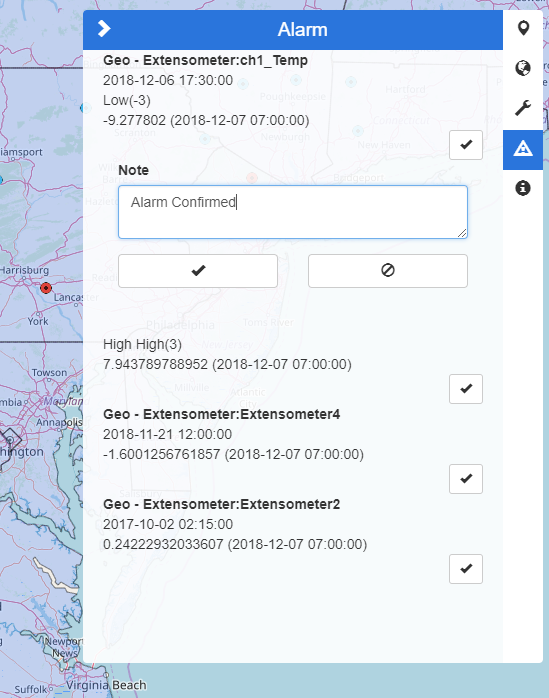

Alarms

A list of all alarms on the GIS map will be shown in a list on the right. The alarms can also be confirmed from there.
