The Civil Tools enable several detailed review workflows that are specialized for civil use cases and take advantage of Civil intelligence that is included in the iModel. The tools available and even some of the capability may change depending on the contents of the model and this is driven by the presence of Civil data opening up the additional capability.

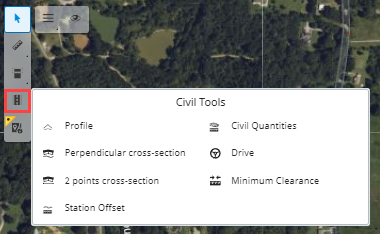

'Common Civil Tools' are available from the 'Main Frontstage' and are available for all entitlements in Bentley Infrastructure Cloud.

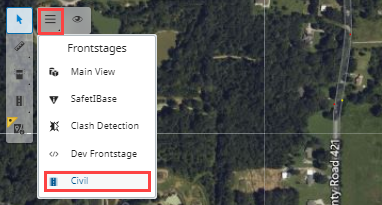

Dedicated Civil workflows including 'Civil validation and Analysis' and additional Civil specific tools are available under the 'Civil Front Stage' under 'Validate' and 'Engineer' #1 Entitlements
#1 Entitlement changes effective from 1st Oct 2024
- The Civil Front Stage with its dedicated Civil Workflows has been added to 'Engineer' Entitlement, opening up more capability for broader engineering reviews to project participants.
- Creation of new 'Civil Validation and Analysis' runs requires a 'Validate' Entitlement.
- 'Engineer' Entitlement allows reviewer to view the results of existing 'Civil validation and Analysis' runs.
Please refer below, for more information about Civil Tools:
-
- 2 Points Cross-Section
- Civil Profiles
- Civil Quantities
- Civil Quantity Area
- Civil Reports - Quantity Reports – Along Alignment
- Civil Reports - Quantity Reports – By Area
- Corridor Analysis
- Create a Drainage Profile
- Drive
- General Notes for Civil Users
- Geometry Validation
- Integrated Digital Sheets
- Minimum Clearance Measurement
- Multi Point Cross-Section
- Perpendicular Cross Section
- Point Analysis
- Station Offset
- Stopping Sight Distance
- Superelevation Analysis
- Taper Angle
- Thematic Display
- Validation Summary
- Vertical Clearance
The following is a summary table of civil tools available for each entitlement.
|
BRAND |
ProjectWise |
SYNCHRO |
||
|
Entitlement |
Manage (web, drive & mobile) |
Engineer (web and desktop*) Includes ProjectWise Manage |
Validate (web) Includes ProjectWise Engineer |
4D (desktop) Includes ProjectWise Validate |
|
Common Civil Tools |
|
|
|
|
|
Profile |
ü |
ü |
ü |
ü |
|
Perpendicular Cross Section |
ü |
ü |
ü |
ü |
|
2 Point Cross Section |
ü |
ü |
ü |
ü |
|
Station Offset |
ü |
ü |
ü |
ü |
|
Civil Quantities |
ü |
ü |
ü |
ü |
|
Drive |
ü |
ü |
ü |
ü |
|
Minimum Clearance |
ü |
ü |
ü |
ü |
|
Civil Reports |
ü |
ü |
ü |
ü |
|
|
|
|
|
|
|
Civil Fronstage |
|
|
|
|
|
Advanced Civil Tools |
||||
|
Drainage Profiles |
ü |
ü |
ü |
|
|
Drainage Projections into Profile |
ü |
ü |
ü |
|
|
Multipoint Cross Section |
|
ü |
ü |
ü |
|
Civil Quantities / Item type Reporting |
ü |
ü |
ü |
|
|
Taper Angle |
ü |
ü |
ü |
|
|
Point Analysis |
ü |
ü |
ü |
|
|
Contour Display |
ü |
ü |
ü |
|
|
Civil Design Validation and Analysis |
||||
|
Summary |
ü Review only |
ü |
ü |
|
|
H&V Geometry Validation |
ü Review only |
ü Create |
ü |
|
|
SuperElevation |
ü Review only |
ü Create |
ü |
|
|
Vertical / Bridge Clearance |
ü Review only |
ü Create |
ü |
|
|
Corridor Analysis |
ü Review only |
ü Create |
ü |
|
|
Stopping Sight Distance |
ü Review only |
ü Create |
ü |
|
|
|
|
|
||
