The Graphics Bar object displays the geology hatching and other hatching in the column.
To insert a Graphics Bar object into a column, follow the steps below:

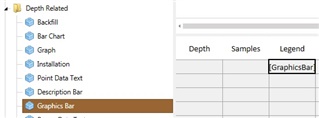

- Select the first empty box below the column headers that the item is to be added to.
- Double click on the Graphics Bar in the Depth Related section of the left hand side tree view.
- The Graphics Bar will now be added and the text "[GraphicsBar]" is inserted in the cell.
- Define the additional properties for the object in the properties form
- Reference - Select the field that will control the hatching in the column. The default value is the Geology Legend field but any pick list field can be used.
- Reference - Select the field that will control the hatching in the column. The default value is the Geology Legend field but any pick list field can be used.
It is possible to have a second column with a Graph object, e.g. Formation where the hatching will be defined by another code e.g. Geology Code as long as there are hatching images specified in the pick list manager in OpenGround Cloud .
The Graphics Bar can be combined with the Installation Object, but the Installation has to be first in the row and the Graphics Bar second.
