The aim of the geotechnical extension is to quickly see and understand the site geology; creating dynamic profiles of the geology strata. Being able to see log strips projected on to Profile View is an excellent aid in understanding the geology of the site.

For Geotechnical Profiles to work, the current drawing must be connected to an OpenGround Cloud project and have strata surfaces created.

An Alignment should also be created prior to using the Create Geotechnical Profile command, refer to Creating an Alignment for a Profile in this user guide.

Refer to Creating an Alignment for a Profile in this User Guide.

Create Profile View - Command: HBSI_CreateProfileView

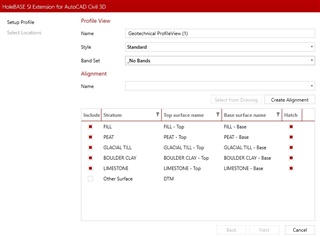

From the OpenGround Cloud ribbon click Create to display the Create Profile wizard

Create Profile View works in the same way as the standard AutoCAD Civil 3D profiles; however they have the extra ability to project the required borehole log strips on to the Profile View and automatically hatch the strata areas.

The command uses a wizard to create the Geotechnical Profile.

Contents

	Step 1 - Setup Profile
	Step 2 - Setup Locations
	Manage Profiles
	Edit Profiles
