Applies To
	Product(s):	OpenPlant Isometrics Manager
	Version(s):	08.11.09.XXX (SS5) & 08.11.11.87 (SS6)
	Environment:	Windows 7 (64 bit) & Others
	Area:	Settings/Attributes
	Subarea:	Supports
	Original Author:	Dinesh Solanki, Bentley Product Advantage Group

Background

In OpenPlant Isometrics Manager, below steps describes placing annotations on Supports. Follow the steps below to add the annotations of support co-ordinates in the Isometric.

Steps to Accomplish

1. Launch OpenPlant Isometrics Manager.


2. Open Isometric Configuration dialog. Go "Isometric Style" tab.

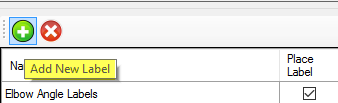

3. Click "User Labels" > and click on "+" Symbol to add a new user label.

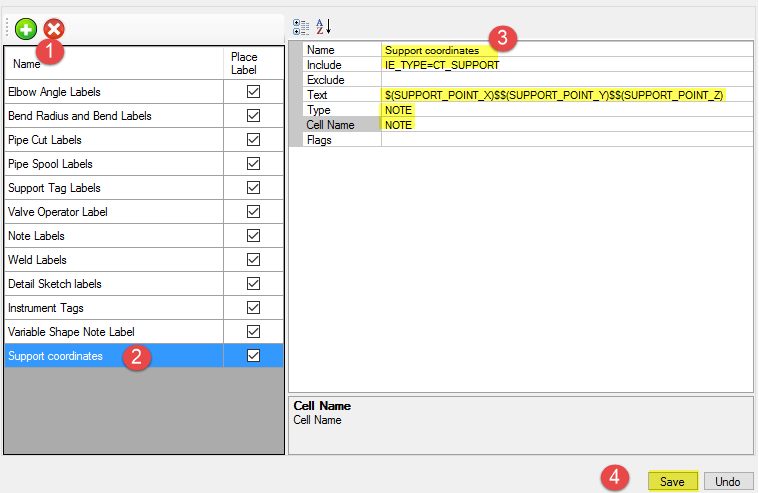

4. Input the new user detail as below picture.

   Name         Support Coordinates
   Include        IE_TYPE=CT_SUPPORT
   Text             $(SUPPORT_POINT_X)$$(SUPPORT_POINT_Y)$$(SUPPORT_POINT_Z)
   Note -Extra Dollar Sign  "$" put the labels in next row

   Type            NOTE
   Cell Name   NOTE

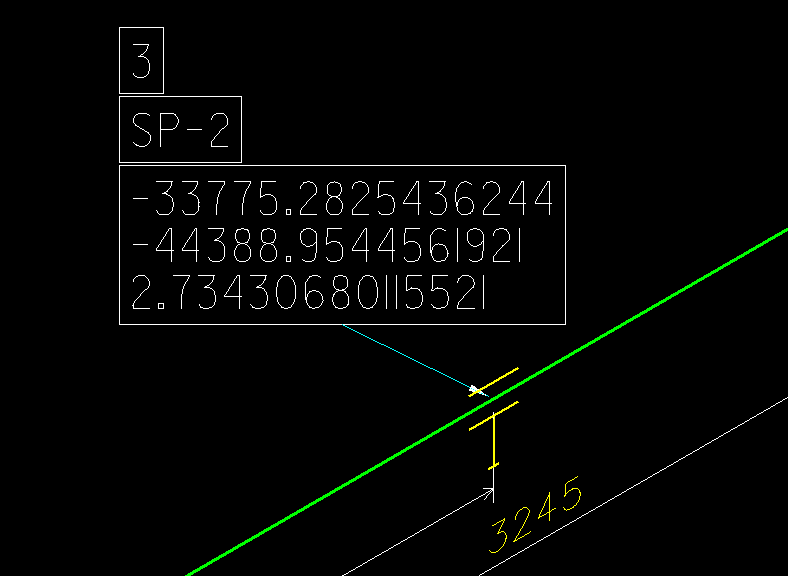

5. Notice, the Iso includes support co-ordinates. See image below.



With SS6 ( 08.11.11.87 ) version, user can use Format specifier, to suppress the coordinates with precision.

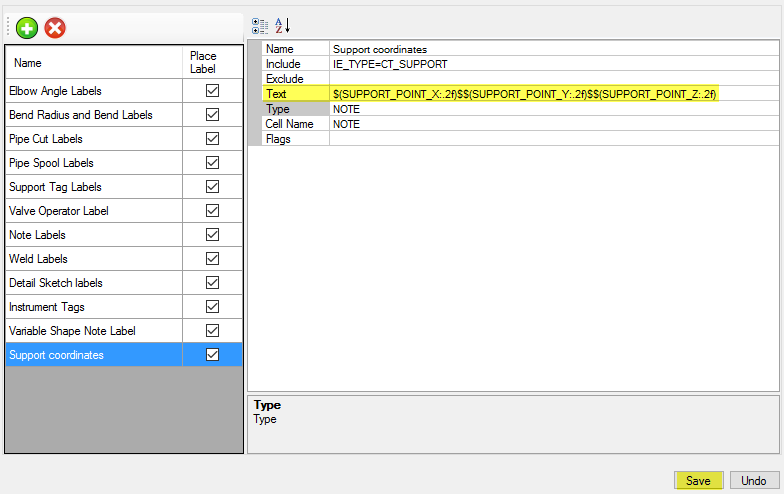

• Input the new user detail as below picture.

  Name         Support Coordinates
  Include        IE_TYPE=CT_SUPPORT
  Text             $(SUPPORT_POINT_X:.2f)$$(SUPPORT_POINT_Y:.2f)$$(SUPPORT_POINT_Z:.2f)
                     Note -Extra Dollar Sign  "$" put the labels in next row. Specifier PROPERTY:.2f produces 2 digit after decimal. To check more options, click here>>>

  Type            NOTE
  Cell Name   NOTE

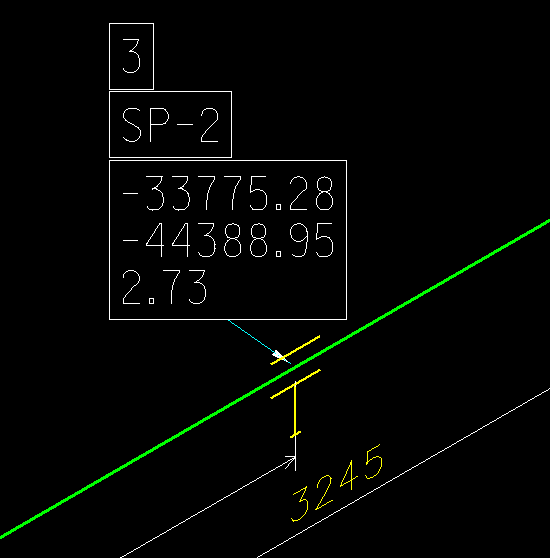

• Generate Isometrics and verify results below:
