24. Heat Exchanger Pass Partition Plate Modification

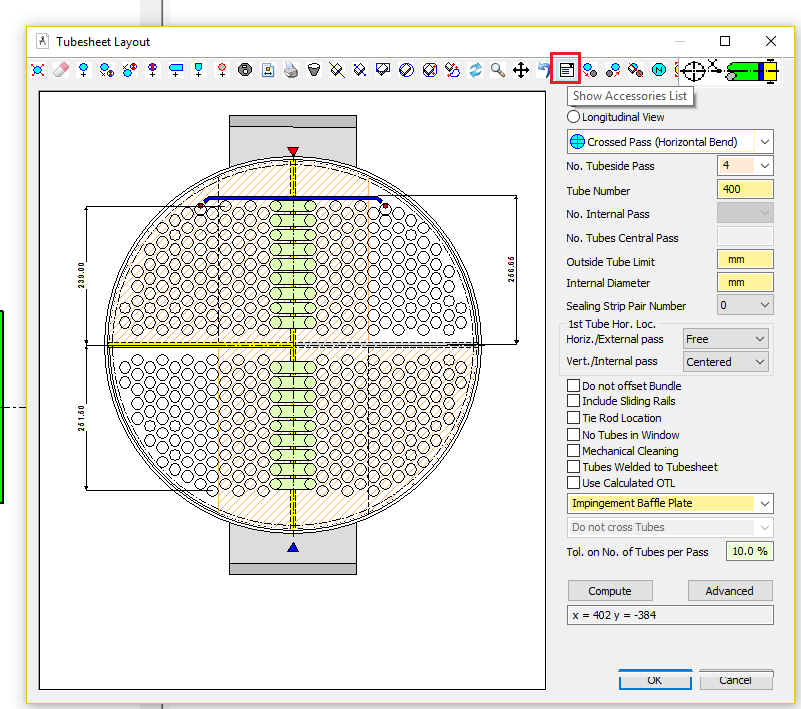

The pass partition plate for shell side and tube side can be edited by clicking on "Show Accessories List" icon in the Bundle Layout dialog box:

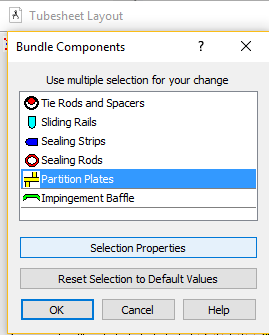

Then click on Partition Plates:

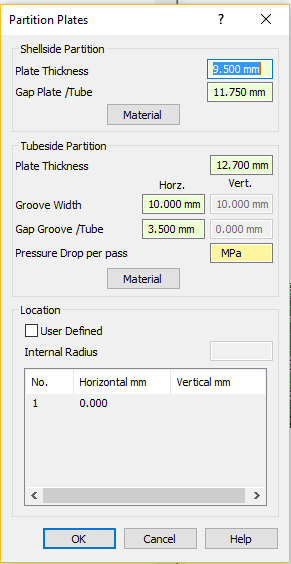

You can modify some dimensions and make edits on the following dialog box that appears, click on User Defined check box to specify location of the tubeside pass partition plate:
