Problem:
I have imported a LandXML file into InRoads using the LandXML Translator. This file was created in Civil3D. When viewing the contours in InRoads, they do not match the contours in Civil3D.
Solution:
Since the LandXML Translator does not import triangle faces, the contours may differ from the Civil3D contours. There are two possible workflows to resolve this issue:
Option 1
Workflow using MicroStation SS3:

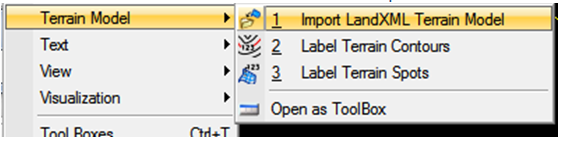

- Use the MicroStation Tools > Terrain Mode l> Import LandXML Terrain Model command to import the LandXML file as a MicroStation Terrain model.

- Use the MicroStation Drop Element command to drop the Terrain model to a mesh.

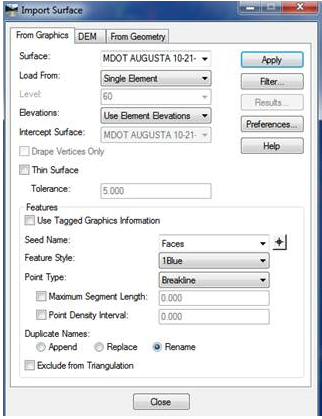

- Use the InRoads File > Import > Surface > From Graphics command to import the mesh as breakline features into a new InRoads DTM.

The result will be an InRoads DTM that triangulates exactly the same as the triangle faces contained in the LandXML file.
Option 2
Workflow using SS2 Data Acquistion on MSTN SS2:
- Launch Data Acquisition (Tasks > Data Acquisition)

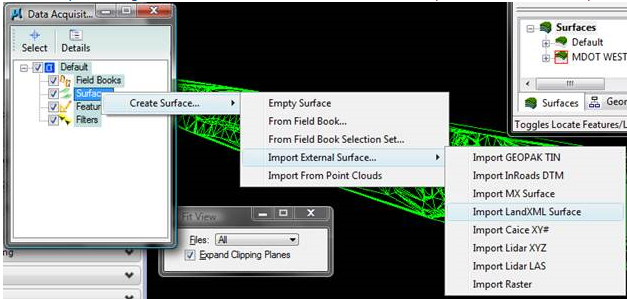

- In Data Acquisition, right click on Surfaces and select Create Surface > Import External Surface > Import LandXML Surface.

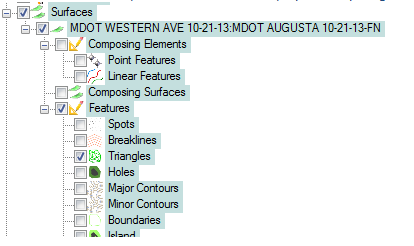

- After the surface is imported, turn OFF the display of everything except “Triangles”.

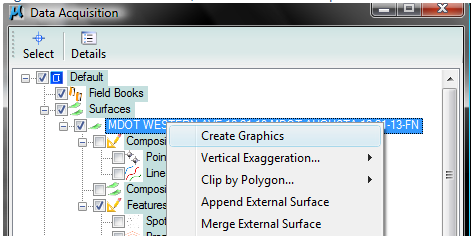

- Right click on the surface name, and select Create Graphics. This will write the triangles to MicroStation graphics.

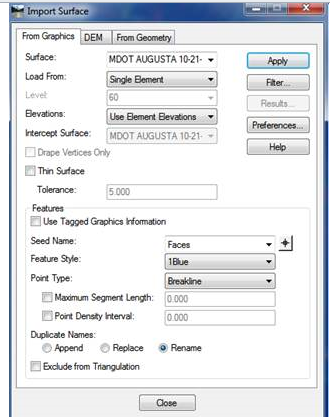

- Now you can use the InRoads File > Import > Surface > From Graphics command to import the graphics as breakline features in a new InRoads DTM.
