Export To DWG

Problem Description :

Export to dwg, linestyles does not appear as in MXRoad SS2


Following are the points to note while exporting to dwg:

1. Use "File > Save As" optionĀ from the CAD menu, instead of "File > Export > AutoCAD dwg". Save As option gives a good dwg output.

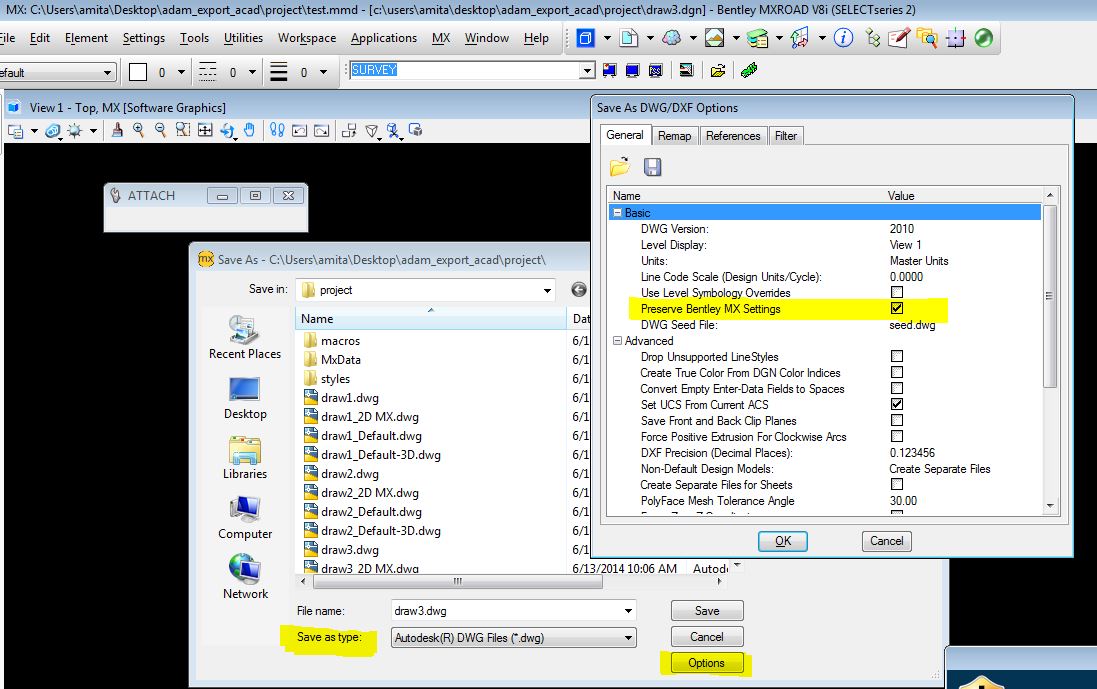

2. After the "Save as type" is changed to dwg, in the 'Save As' dialog box, hit the "Options" button to check following settings:

a. In the 'Basic' category, "Preserve Bentley MX Settings" is checked mark.

b. Expand the 'Fonts' category and check the 'SHX Output Directory'

Hope this helps.
