Product(s):	OpenRoads Designer
Version(s):	10.00.00.120+
Area:	Drawing Production
Original Author:	Bentley Technical Support Group

This Document deliniates the workflow required to Migrate the SMD Features into OpenRoads Designer.

The referenced conversion utilities can be found in the Organization-Civil directory  (C:\ProgramData\Bentley\OpenRoads Designer CE\Configuration\Organization-Civil\Migration Utilities)

communities.bentley.com/.../0728.Migration-Utilities.zip

Create the MDB from the SMD file

1. Open any version of GEOPAK SS2
2. Open the GEOPAK Survey Preference Editor:
3. User Preferences > Feature Preferences > Edit SMD File
4. Load the SMD file for conversion
5. Execute - File > Save As > Microsoft Access Database (need GEOPAK for this step)

Converting the SMD to Element Templates

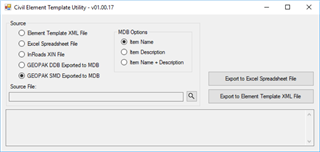

• 1. Double-click on the Civil_Elementtemplate_Utility.exe file. This executable is in a different Migration Utilities folder. This executable is typically located here:
• C:\ProgramData\Bentley\OpenRoads Designer CE\Configuration\Organization-Civil\Migration Utilities
• 2. Toggle on the GEOPAK SMD Exported to MDB Toggle
• 3. Select the MDB Options
• a. Item Name – Uses the SMD item Name for the Element Template Names
• b. Item Description - Uses the SMD item Description for the Element Template Names
• c. Item Name + Description - Uses the SMD item Name & Description for the Element Template Names (This is the preferred option which will yield the best results)

IMPORTANT ** Select the Option before you load the MDB

• 4. Pick the magnifying glass to select and load the MDB file
• 5. Pick “Export to Excel Spreadsheet File” to review and modify your Element Templates or select “Export to Element Template XML File” to create a file to load into OpenRoads Designer

Converting the SMD to Feature Symbologies and Feature Definitions

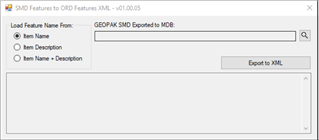

• 1. Double-click on the SMDfeatures_to_ORDfeatures.exe file
• 2. Toggle on the Load Feature Name from Option a. Item Name – Uses the SMD item Name for the Feature Symbology & Feature Definition Names
• b. Item Description - Uses the SMD item Description for the Feature Symbology & Feature Definition Names
• c. Item Name + Description - Uses the SMD item Name & Description for the Feature Symbology & Feature Definition Names
• IMPORTANT **Select the Option before you load the MDB
• IMPORTANT **Use the same option used for the Element Templates
• 3. Pick the magnifying glass to select and load the MDB file
• 4. Pick the “Export to XML” button to create the Feature Symbology & Feature Definition XML files to be imported into OpenRoads Designer

Note: This will create 2 xml files.

Preparing dgnlib for ORD

1. Open your SS2 dgn and export the Levels and Custom Linestyles (if any)
2. Create a dgnlib in ORD with no workset with the correct units (English or metric)
3. Make sure dgnlib has access to survey cells (ms cell list) and linestyles (import linestyles)
4. Add _civil_standards_importexport = 1 variable to your config
5. Add CIVIL_PROJECTSETTINGSDGNLIBLIST > $(CIVIL_ORGANIZATION_STANDARDS)Dgnlib/Feature Definitions/*Survey_Settings*.dgnlib variable to your config
6. Open dgnlib in ORD
7. Import levels and linestyles
8. Import element template xml
9. Import feature symbologies xml
10. Import feature definitions xml
11. Create survey settings
