Product(s):	OpenRoads Designer
Version(s):	10.00.00.120+
Area:	Terrain Analysis
Original Author:	Marc Blancher, Bentley Technical Support Group



Question:

How do I get the elevation of a terrain at a given station and offset of an alignment?

Answer:

You can use the Civil AccuDraw and the Analyze Point tool to achieve this:

1. Launch the Civil AccuDraw

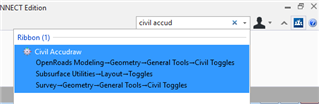

   1.
2. Toggle Civil Accudraw
   1.
3. Select the Station-Offset option
   1.
4. Launch the Analyze Point Command

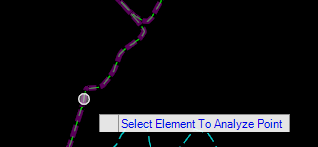

   1.
5. Select the Terrain Model you want to have the Elevation
   1.
6. Specify the Station and Offset in the Civil AccuDraw window
   1.
